AG Neovo PD-65Q

AG Neovo 65-Inch 4K Commercial Display. Product design: Digital signage flat panel. Display diagonal: 163.8 cm (64.5"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 700 cd/m², HD type: 4K Ultra HD. Operating hours (hours/days): 24/7. Product colour: Black

The PD-65Q 65-inch 4K commercial display features its 700 nits high brightness, suitable for use in different semi-outdoor environments, such as airport terminals, control rooms, and shopping malls. It integrates a full slate of input sources, including an embedded USB playback function, various I/O ports, and Intel® SDM slot. It allows you to broadcast multimedia content horizontally or vertically and it can meet different kinds of digital signage solutions as well as video wall installations.

700 nits High Brightness

The PD-65Q commercial display features 4K UHD, 10-bit colour depth, and 178-degree viewing angle for brilliant colour performance. Besides that, the PD-Series adopts a 700 nits brightness commercial-grade panel to deliver clear, bright, and detailed imagery even in the daylight or bright indoor environments.

IPS Panel for 24/7 Use

Designed for 24/7 operation, the display is produced to meet the highest standard of IPS panel technology and take advantage of superior components to ensure a long product lifetime in demanding environments.

Landscape/Portrait Capability

This commercial-grade display is signage-friendly and can perfectly fit either in a landscape or in a portrait mode to experience complete screen orientation flexibility and fulfill the need in different scenarios.

Optional Intel® SDM Capability

The built-in SDM slot is designed for Intel® smart display module, which is ready to deliver a powerful smart signage functionality for more user-friendly applications.

Patented Anti-Burn-in™ Technology

To combat the effects of traditional LCD burn-in or ghosting, AG Neovo utilises its patented Anti-Burn-in Technology to prevent image burn-in and assure the extended life span for displays.

DisplayPort/IR/RS232 Daisy Chain Functionality

With DisplayPort daisy chain functionality, the video and audio can be delivered to multiple AG Neovo's large format displays using DisplayPort cables, and it saves a significant amount of time. IR/RS232 loop-through capability provides a convenient single point of control for multi-display installation.

Embedded Image Enhancer

The embedded image enhancer features a 3D Comb Filter, 3D Deinterlace, and Noise Reduction to solve image issues - offering crystal clarity to the most demanding environments.

Integrated Content Scheduler

The built-in integrated scheduler in the OSD menu allows you to easily broadcast content based on source, time, and day by IR remote control.

PID Command & Ctrl Software

PID Command & Ctrl provides intuitive user interfaces for remote management via laptops and mobile devices and offers easy creation on video wall displays. The software also has simple colour calibration, temperature check, IR/key locking options, and time on usage monitoring for daily maintenance.

Display

Panel type: IPS
Feature: LED backlight
Display diagonal: 163.8 cm (64.5")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 700 cd/m²
HD type: 4K Ultra HD
Response time: 5 ms
Contrast ratio (typical): 1200:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.372 x 0.372 mm
Number of displays: 1
Horizontal scan range: 31 - 92 kHz
Vertical scan range: 48 - 85 Hz
Haze rate: 25%
Surface hardness: 2H
Colour gamut: 72%

Ports & interfaces

HDMI ports quantity: 3
HDMI version: 2.0
Feature: DVI port
DVI-I ports quantity: 1
DisplayPorts quantity: 2
DisplayPorts in: 1
DisplayPorts out: 1
Feature: USB port
USB ports quantity: 2
USB version: 2.0
Ethernet LAN (RJ-45) ports: 1
Feature: RS-232 interface
Feature: Infrared data port
Remote (IR) input: 1
Remote (IR) output: 1
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)

Audio

Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 10 W

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Orientation: Horizontal/Vertical
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 400 x 400 mm
Feature: Anti-glare screen

Performance

Purpose: Commercial
Operating hours (hours/days): 24/7

Power

Power consumption (standby): 0.5 W
Power consumption (off): 0 W

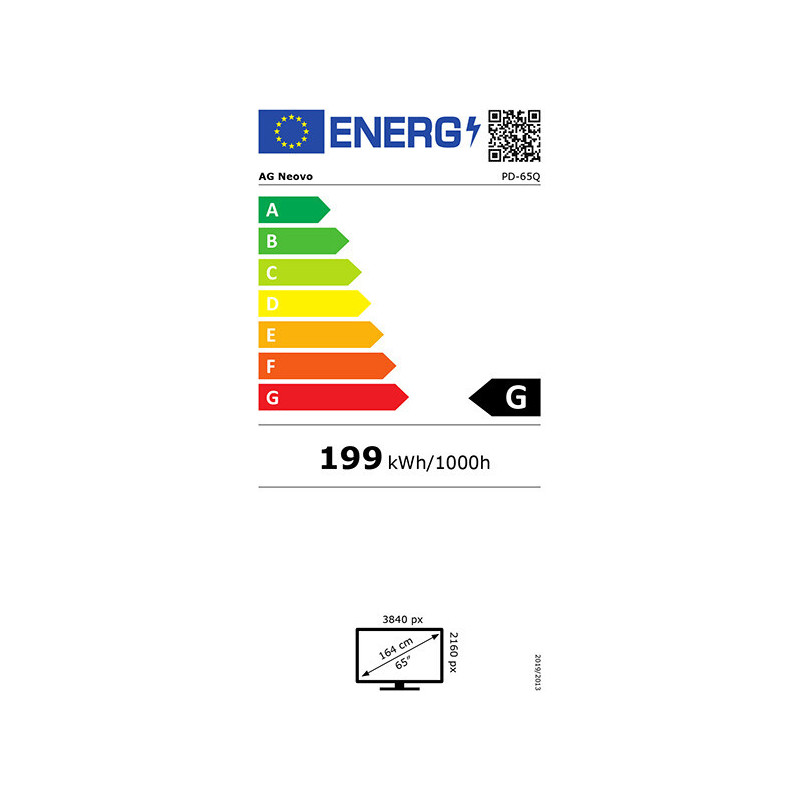

Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 199 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Energy efficiency scale: A to G

Weight & dimensions

Display width: 1462.3 mm
Display depth: 93.4 mm
Display height: 837.3 mm
Display weight: 27.8 kg

Packaging data

Package width: 1580 mm
Package depth: 151 mm
Package height: 1050 mm
Package weight: 33.9 kg

Packaging content

Feature: Remote control included
Feature: Batteries included
Cables included: AC, HDMI

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 20 - 80%
Storage temperature (T-T): -20 - 60 °C
Storage relative humidity (H-H): 10 - 90%

Certificates

Certification: FCCCELVDICES-003(Issue 7)WEEERoHSREACH

Logistics data

Harmonized System (HS) code: 85285210

Network

Feature: Ethernet LAN

Features

Feature: Wall mountable

Technical details

I/O ports: SDM Slot
Compliance certificates: RoHS

Other features

Feature: Quick start guide
Audio input: 1
Audio output: 1
RS-232 input ports: 1
RS-232 output ports: 1
