AG Neovo MX-24 computer monitor

AG Neovo MX-24. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White

The MX-24 is a 24-inch DICOM monitor featuring Full HD 1080p resolution, low-voltage medical power supply with IEC / EN 60601-1 certified. Compatible with DICOM Part 14 standard, it ensures accurate and excellent medical image quality, colour reproduction, and image contrast. Equipped with NeoV™ Optical Hard Glass, the MX-24 withstands alcohol and other commonly used cleaning solutions, allowing medical professionals to sanitize it easily.

EASY CLEAN AND ROBUST PROTECTION
The special design of NeoV Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection.

DICOM PART 14 CALIBRATION
DICOM Part 14 calibration corrects gamma and luminance to achieve the smooth grayscale for the accurate and consistent appearance of clinical data and other medical images.

MEDICAL-GRADE POWER SUPPLY WITH EN/IEC60601-1 CERTIFIED
Low-voltage medical power supply with IEC / EN 60601-1 certified to ensure safety, performance, and reliable operation in any professional medical environment.

PIP/PBP SUPPORT
This 24-Inch DICOM monitor enhances work efficiency with PiP/PbP support for multitasking.

Display

Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Screen shape: Flat
Supported graphics resolutions: 1920 x 1080 (HD 1080)
Contrast ratio (typical): 1000:1
Contrast ratio (dynamic): 20000000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.274 x 0.274 mm
Digital horizontal frequency: 24 - 83 kHz
Digital vertical frequency: 50 - 75 Hz
Surface hardness: 9H
Colour gamut standard: NTSC
NTSC coverage (typical): 72%

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)

Design

Market positioning: Medical
Product colour: White

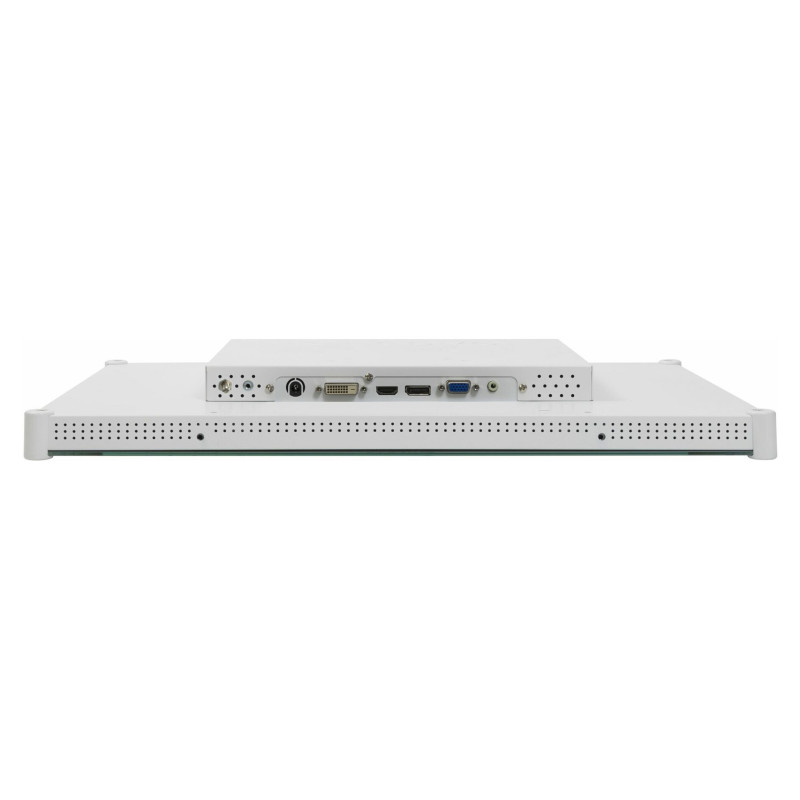

Ports & interfaces

VGA (D-Sub) ports quantity: 1
Feature: DVI port
DVI-D ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
HDMI version: 1.4
DisplayPorts quantity: 1
Audio input: Yes

Ergonomics

Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Tilt adjustment
Tilt angle range: 3 - 21°

Power

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 18 kWh
Power consumption (typical): 18 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Power supply type: External
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight & dimensions

Width (with stand): 562.4 mm
Depth (with stand): 196 mm
Height (with stand): 392.8 mm
Weight (with stand): 7.8 kg
Width (without stand): 562.4 mm
Depth (without stand): 56.2 mm
Height (without stand): 352.6 mm
Weight (without stand): 7 kg

Packaging data

Package width: 672 mm
Package depth: 249 mm
Package height: 517 mm
Package weight: 10.9 kg

Packaging content

Cables included: AC, Audio (3.5mm), VGA
Feature: Power adapter included
Feature: Quick start guide

Other features

Compliance certificates: RoHS, Low Voltage Directive (LVD), UKCA, WEEE, CE, REACH

Logistics data

Harmonized System (HS) code: 85285210
