AG Neovo DR-24G computer monitor

AG Neovo DR-24G. Display diagonal: 60.5 cm (23.8"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). VESA mounting. Product colour: White
DR-24G
The AG Neovo DR-24G is a 24-inch dental monitor that features a quick switch to X-ray illuminator mode for dental X-ray film viewing without using another X-ray view box. With advanced gamma correction, black-level alignment adjustability, and high contrast ratio, the dentists can verify the patient's condition of teeth, jaw placement, and facial bone before dental treatment. The NeoV™ Optical Hard Glass Screen and white metal casing design meet an array of medical level cleaning requirements, allowing dental professionals to clean and sanitise the monitors.
EASY CLEAN AND ROBUST PROTECTION
The special design of NeoV™ Optical Hard Glass and white metal casing prevent dust and waterproof for easy clean and robust protection.

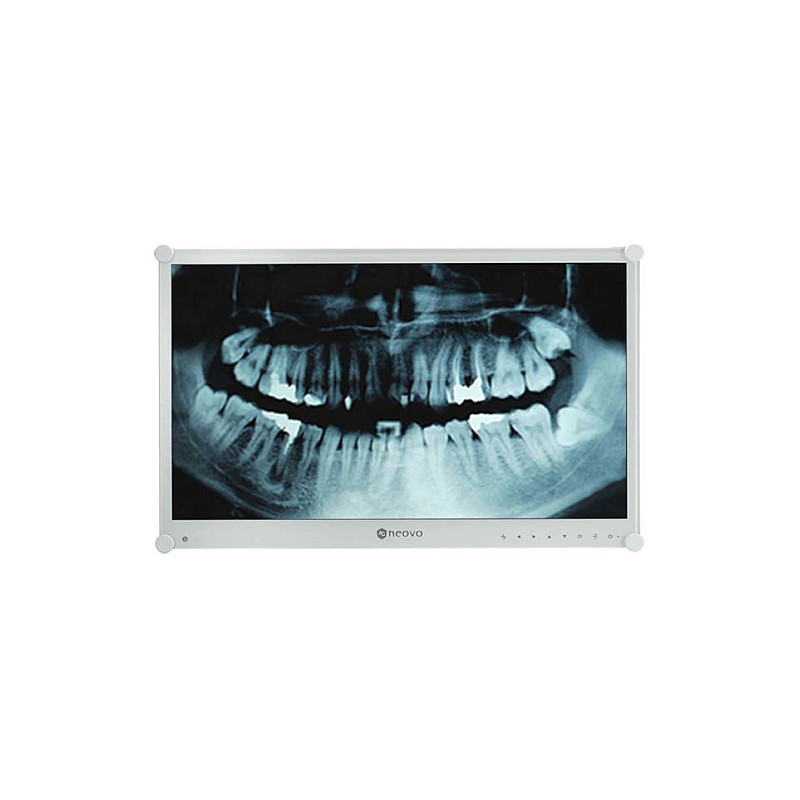

QUICK SWITCH TO X-RAY VIEWING MODE
The DR-24G 24-inch dental monitor integrates hotkey operation to switch X-ray viewing mode without using another X-ray view box.
DC 24V MEDICAL-GRADE POWER ADAPTER FOR A LONGER DISTANCE CONNECTION
Designed with DC 24V power supply, it is ideal for long-distance (up to 5 meters) cable management between dental equipment and displays. The medical power supply with IEC / EN60601-1 certified ensures safety, performance, and reliable operation in any professional medical environment.
PIP/PBP SUPPORT
PiP/PbP functions enable viewing and comparing two images simultaneously from different sources and enhance work efficiency for multitasking.
GREAT MOBILITY

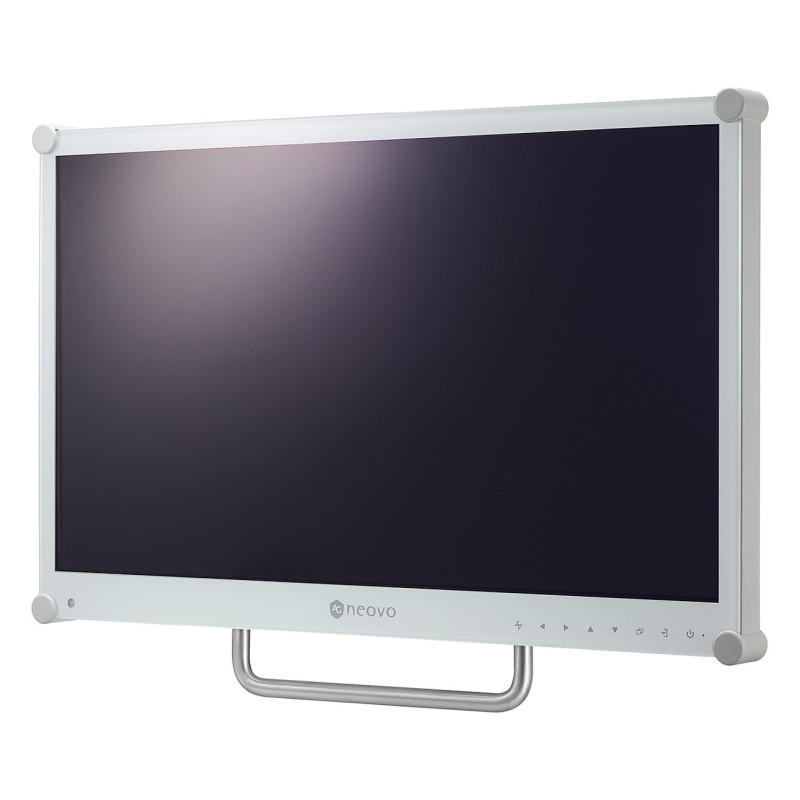

This 24-inch dental monitor meets VESA 75mm/100mm wall mount standard and optional handle for flexible installation and operation on the dental chair.

Display

Display diagonal: 60.5 cm (23.8")
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: VA
Backlight type: LED
Touchscreen: No
Display brightness (typical): 250 cd/m²
Response time: 5 ms
Anti-glare screen: Yes
Screen shape: Flat
Aspect ratio: 16:9
Contrast ratio (dynamic): 20000000:1
Maximum refresh rate: 75 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.274 x 0.274 mm
Digital horizontal frequency: 24 - 83 kHz
Digital vertical frequency: 50 - 75 Hz
Display diagonal (metric): 60 cm
Haze rate: 40%
Surface hardness: 3H
Colour gamut standard: NTSC
NTSC coverage (typical): 72%

Performance

NVIDIA G-SYNC: No
AMD FreeSync: No
Flicker-free technology: Yes

Multimedia

Number of speakers: 2
RMS rated power: 4 W
Built-in speaker(s): Yes
Built-in camera: No

Design

Market positioning: Medical
Product colour: White
Housing material: Metal
Front bezel colour: White
Glass thickness: 3 mm

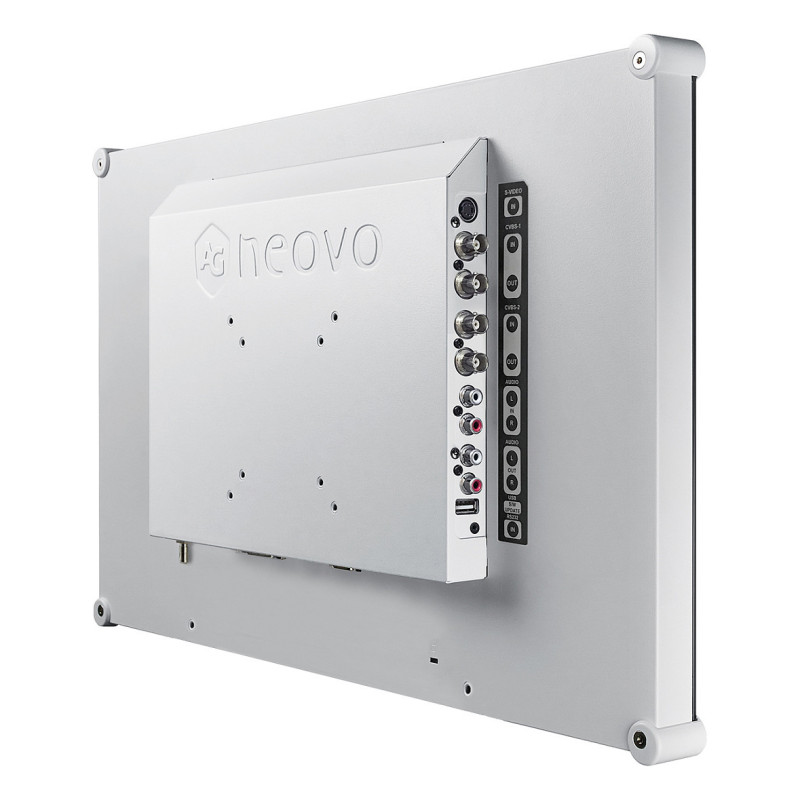

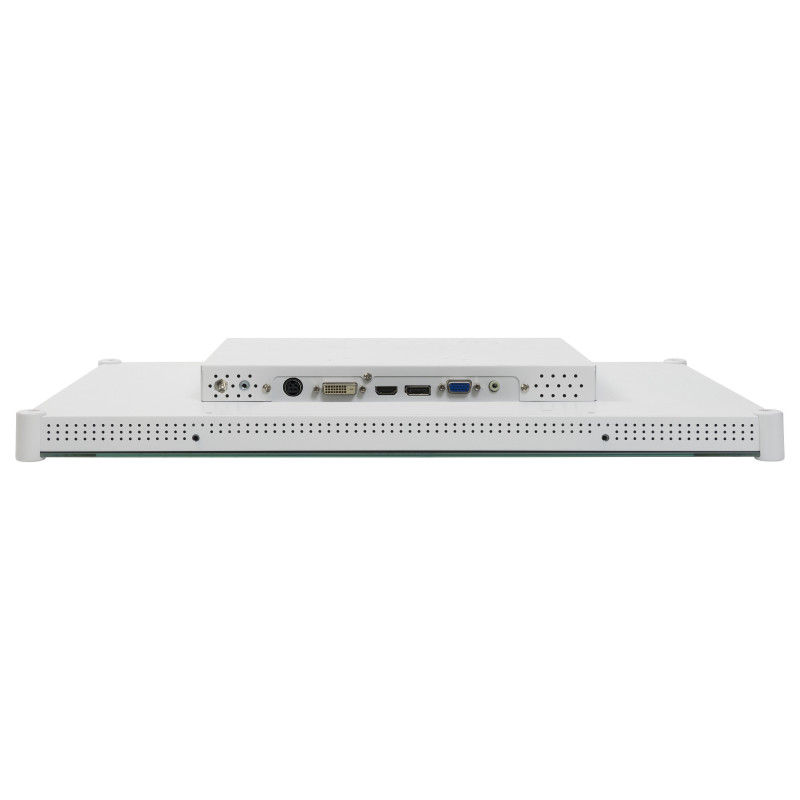

Ports interfaces

Built-in USB hub: No
USB Type-A downstream ports quantity: 1
VGA (D-Sub) ports quantity: 1
DVI port: Yes
DVI-D ports quantity: 1
HDMI: Yes
HDMI ports quantity: 1
HDMI version: 1.4
Micro HDMI ports quantity: 1
DisplayPorts quantity: 1
Audio input: Yes
Audio output: Yes
PC Audio in: Yes
DC-in jack: Yes
Composite video in: 2
Composite video out: 2
S-Video inputs quantity: 1
RS-232 ports: 1
Audio RCA outputs: 1

Ergonomics

VESA mounting: Yes
Panel mounting interface: 75 x 75,100 x 100 mm
Cable lock slot: Yes
Cable lock slot type: Kensington
Height adjustment: No
Picture-in-Picture: Yes
X-ray film viewing mode: Yes

Power

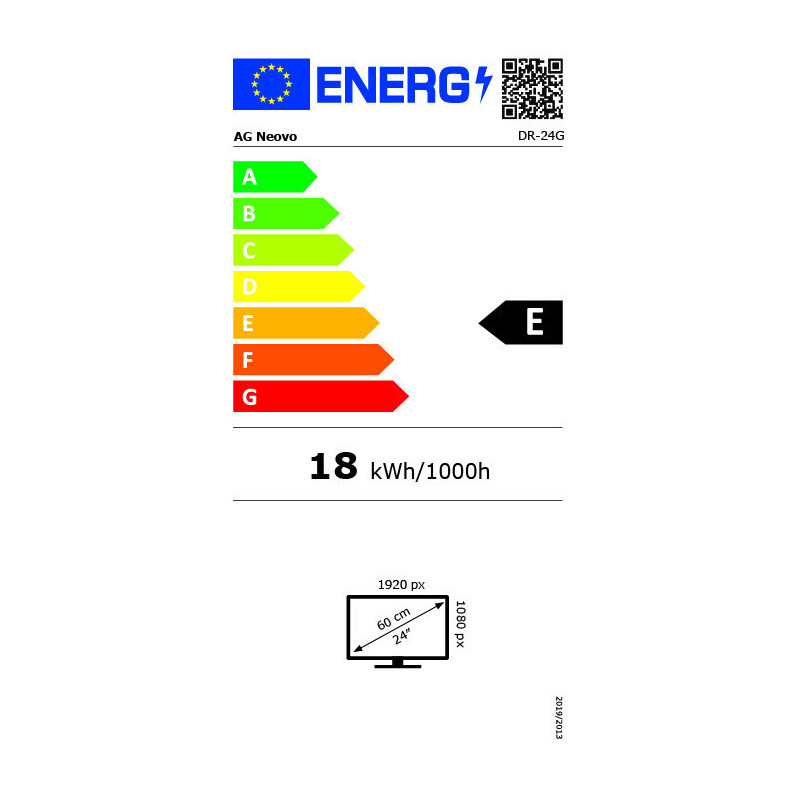

Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 18 kWh
Power consumption (typical): 18 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.3 W
Input current: 2.71 A
AC adapter output voltage: 24 V
Power supply type: External
Energy efficiency scale: A to G

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Storage temperature (T-T): -20 - 60 °C
Operating relative humidity (H-H): 10 - 90%
Storage relative humidity (H-H): 5 - 95%

Weight dimensions

Width (without stand): 562.4 mm
Depth (without stand): 56.2 mm
Height (without stand): 352.6 mm
Weight (without stand): 7.4 kg

Packaging data

Package width: 672 mm
Package depth: 249 mm
Package height: 517 mm
Package weight: 10.6 kg
Package type: Box
Warranty card: Yes

Packaging content

Cables included: AC, Audio (3.5mm), VGA
Power adapter included: Yes
Quick start guide: Yes
Power cable length: 5 m

Sustainability

Sustainability compliance: Yes

Other features

Protection features: Dust resistant, Waterproof
Picture-by-Picture (PbP): Yes
Light sensor: Yes
Transmission rate: > 97%
Compliance certificates: CE, Low Voltage Directive (LVD), REACH, RoHS, WEEE
Supplied AC adapter type: AC
