Samsung SM85HX-P

Samsung SM85HX-P. Product design: Digital signage flat panel. Display diagonal: 2.16 m (85"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 500 cd/m², HD type: 4K Ultra HD. Wi-Fi. Operating hours (hours/days): 24/7. Operating system installed: Tizen 7.0. Product colour: Black

Display

Panel type: VA
Display diagonal: 2.16 m (85")
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 500 cd/m²
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Response time: 10 ms
Contrast ratio (typical): 4000:1
Dynamic contrast ratio marketing name: Mega Contrast
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Pixel pitch: 0.487 x 0.487 mm
Horizontal scan range: 30 - 81 kHz
Vertical scan range: 48 - 75 Hz
Feature: High Dynamic Range (HDR) supported
Haze rate: 25%
Pixel frequency (max): 594 MHz

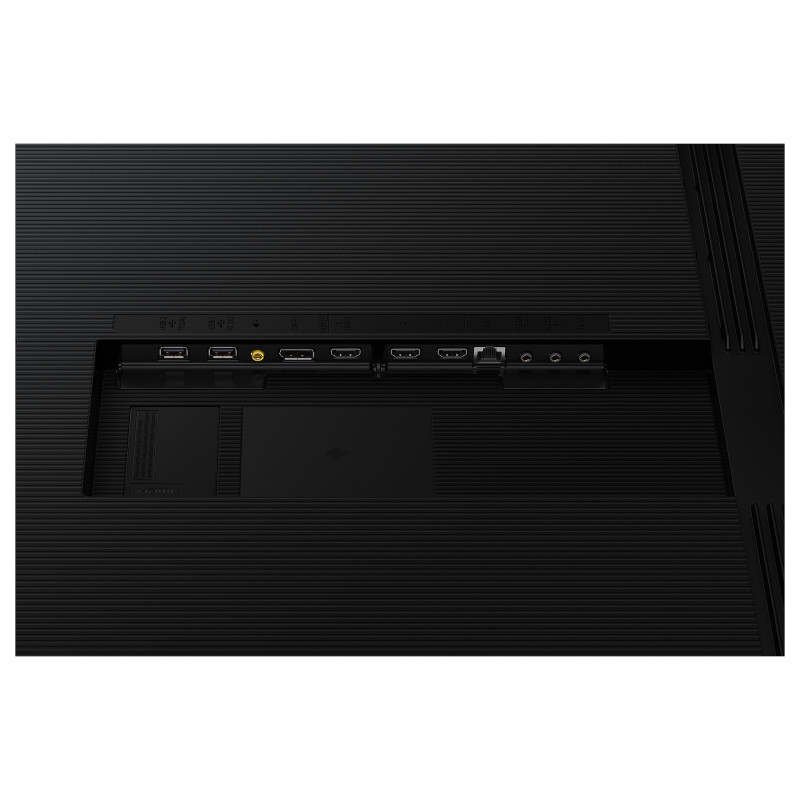

Ports & interfaces

HDMI ports quantity: 3
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
Ethernet LAN (RJ-45) ports: 2
Feature: RS-232 interface
Feature: Infrared data port

Design

Product design: Digital signage flat panel
Placement supported: Indoor
Product colour: Black
Feature: VESA mounting
Panel mounting interface: 400 x 600 mm
Bezel width (bottom): 2.1 cm
Bezel width (side): 2.1 cm
Bezel width (top): 2.1 cm

Performance

Purpose: Commercial
Operating hours (hours/days): 24/7
Feature: HDCP
HDCP version: 2.2

Power

Power consumption (typical): 440 W
Power consumption (standby): 0.5 W
Energy efficiency class (SDR): G
Energy efficiency class (HDR): G
Energy consumption (SDR) per 1000 hours: 340 kWh
Energy consumption (HDR) per 1000 hours: 447 kWh
AC input voltage: 100 - 240 V
AC input frequency: 50/60 Hz

Computer system

Feature: Computer system
Internal storage capacity: 16 GB
Operating system installed: Tizen 7.0

Weight & dimensions

Display width: 1101.2 mm
Display depth: 52 mm
Display height: 1920.2 mm
Display weight: 49 kg

Packaging data

Package width: 2093 mm
Package depth: 220 mm
Package height: 1234 mm
Package weight: 61.9 kg

Operational conditions

Operating temperature (T-T): 0 - 40 °C
Operating relative humidity (H-H): 10 - 80%

Network

Feature: Ethernet LAN
Feature: Wi-Fi

Other features

Audio output: 1
Feature: Bluetooth
