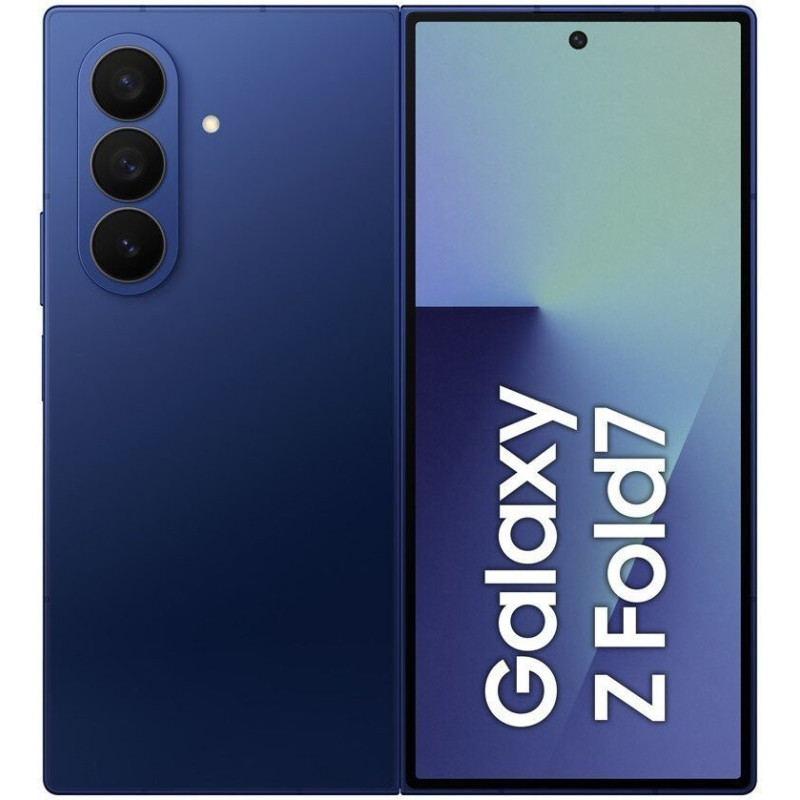

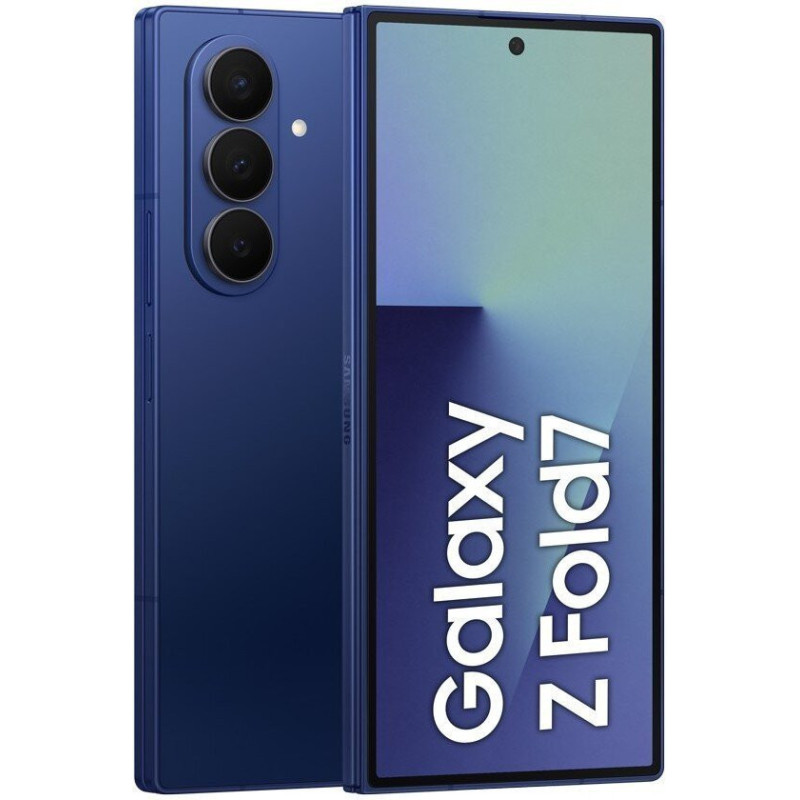

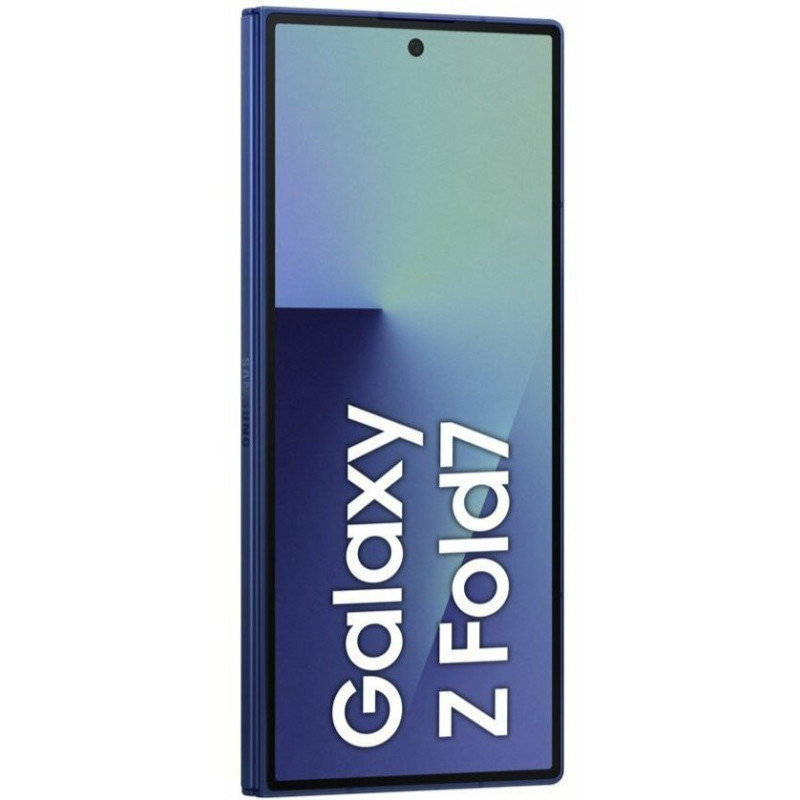

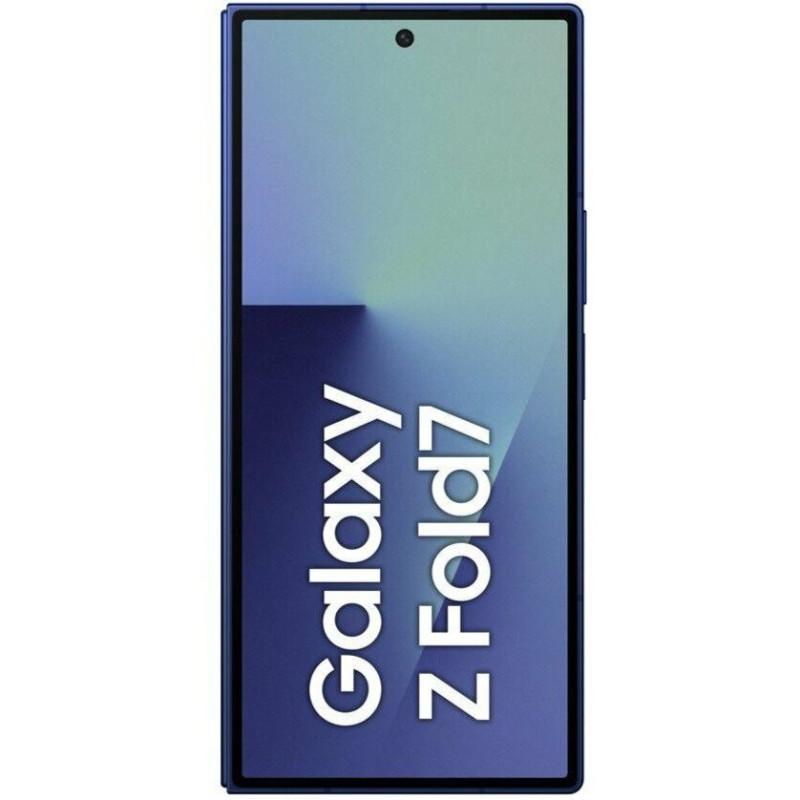

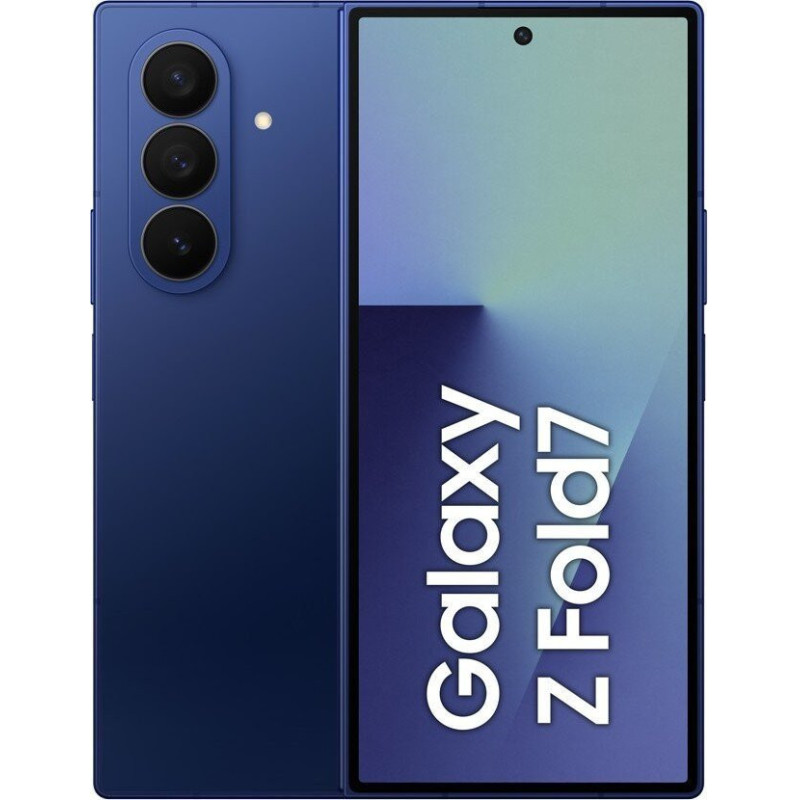

Samsung Z Fold 7 F966 5G 12 / 512GB blue shadow

Technical specifications:

Network: GSM / CDMA / HSPA / EVDO / LTE / 5G

Body:

• Dimensions:




  • Unfolded: 158.4 x 143.2 x 4.2 mm


  • Folded: 158.4 x 72.8 x 8.9 mm






• Weight: 215 g (7.58 oz)


• Build:




  • Glass front (Gorilla Glass Victus Ceramic 2) when folded


  • Plastic front when unfolded


  • Glass back (Gorilla Glass Victus 2)


  • Aluminum frame






• SIM:




  • Nano-SIM + Nano-SIM + eSIM + eSIM (max 2 active at a time)






• IP48 dust and water resistance (up to 1.5m for 30 min)


• Advanced Armor aluminum frame

Display:

• Type: Foldable Dynamic LTPO AMOLED 2X, 120Hz, HDR10+, 2600 nits (peak)


• Size: 8.0 inches, 204.2 cm² (~90.0% screen-to-body ratio)


• Resolution: 1968 x 2184 pixels (~368 ppi density)


• Protection:




  • Mohs level 1


  • Titanium plate layer for display support






• Cover Display:


• Dynamic LTPO AMOLED 2X, 120Hz, Corning Gorilla Glass Ceramic 2


• 6.5 inches, 1080 x 2520 pixels, 422 ppi

Platform

• OS: Android 16, up to 7 major Android upgrades, One UI 8


• Chipset: Qualcomm SM8750-AC Snapdragon 8 Elite (3 nm)


• CPU: Octa-core (2x4.47 GHz Oryon V2 Phoenix L + 6x3.53 GHz Oryon V2 Phoenix M)


• GPU: Adreno 830 (1200 MHz)

Memory

• Card Slot: No


• Internal Storage:




  • 256GB 12GB RAM


  • 512GB 12GB RAM


  • 1TB 12GB RAM


  • 1TB 16GB RAM






• UFS 4.0

Main Camera:

• Triple:



  • 200 MP, f/1.7, 24mm (wide), 1/1.3", 0.6µm, multi-directional PDAF, OIS


  • 10 MP, f/2.4, 67mm (telephoto), 1.0µm, PDAF, OIS, 3x optical zoom


  • 12 MP, f/2.2, 120˚ (ultrawide), 1.4µm, dual pixel PDAF






• Features: LED flash, HDR, panorama


• Video:




  • 8K@30fps


  • 4K@60fps


  • 1080p@60/120/240fps (gyro-EIS)


  • 720p@960fps (gyro-EIS)


  • 10-bit HDR, HDR10+





Selfie Camera:

• Single:



  • 10 MP, f/2.2, 18mm (ultrawide), 1.12µm






• Cover Camera:




  • 10 MP, f/2.2, 24mm (wide), 1.12µm






• Features: HDR


• Video: 4K@30/60fps, 1080p@30/60fps, gyro-EIS

Sound:

• Loudspeaker: Yes, with stereo speakers


• 3.5mm Jack: No


• Audio: 32-bit/384kHz, tuned by AKG

Communications

• WLAN: Wi-Fi 802.11 a/b/g/n/ac/6e/7, tri-band, Wi-Fi Direct


• Bluetooth: 5.4, A2DP, LE, aptX HD


• Positioning: GPS, GALILEO, GLONASS, BDS, QZSS


• NFC: Yes


• Radio: No


• USB: USB Type-C 3.2, OTG

Features

• Sensors:




  • Fingerprint (side-mounted)


  • Accelerometer, gyro, proximity, compass, barometer






• Special Features:




  • Samsung DeX (desktop experience support)


  • Ultra Wideband (UWB) support





Battery:

• Type: Li-Po 4400 mAh


• Charging:




  • 25W wired (QC2.0, 50% in 30 min)


  • 15W wireless
