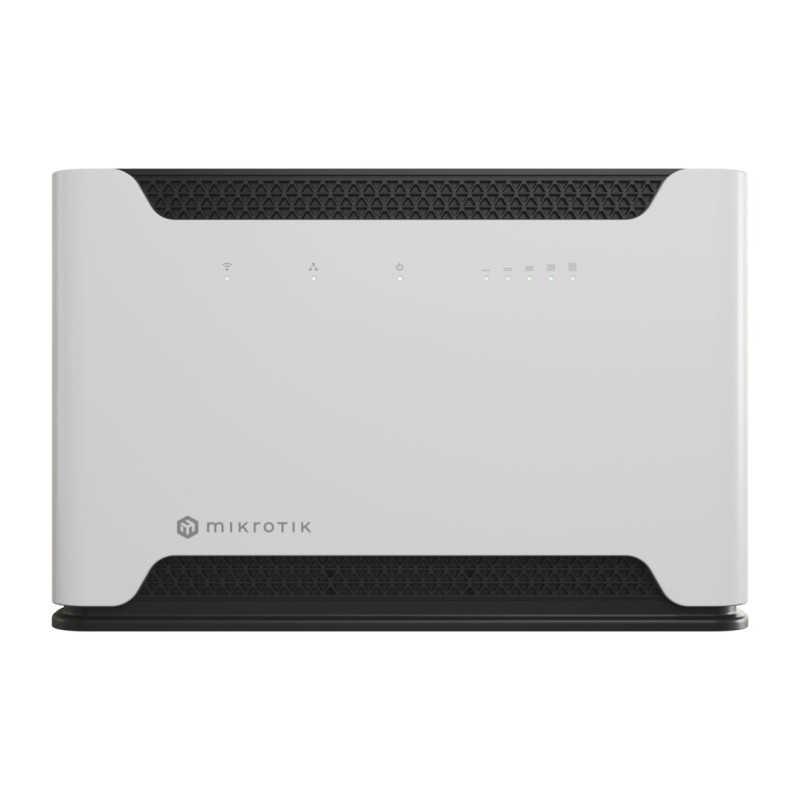

MIKROTIK Wi-Fi 5 Access Point, LTE Ver.7 support, Chateau LTE7

Chateau LTE7 retains the same elegant design, powerful hardware, and flexible RouterOS capabilities that have made the Chateau series a global favorite. Now with faster LTE Category 7 modem, a wider range of supported frequencies and lower price than the previous LTE6 model.

One router for home, office and everything in between

Chateau LTE7 designed as a replacement for weak, feature-deficient routers often offered by internet service providers.

It's a balanced solution that combines performance, flexibility, and a clean design that fits naturally into modern homes or offices - without looking like industrial equipment.

Connections and connections

•


  5 × Gigabit Ethernet ports for wired devices: NAS, TVs, computers





•


  LTE connection can be used as:





  •


    the main internet source,





  •


    a reliable backup connection for wired internet,





  •


    Dual-band, dual-stream Wi-Fi for reliable everyday use even in large homes or offices








Whether LTE is your primary connection or a backup line - Chateau adapts to your network configuration.

Powerful when needed. Simple when not.

Chateau LTE7 base - powerful quad-core ARM processor with full RouterOS v7 functionality.

This allows:

•


  use secure VPNs for remote work,





•


  configure advanced firewall rules,





•


  create VLANs and traffic priorities,





•


  monitor usage and automate notifications.




Or just plug it in and forget it. Chateau grows with your knowledge and needs - it is equally useful for networking professionals, researchers, homelab enthusiasts, and ordinary home users with minimal IT knowledge.

RouterOS v7 - Automate, adapt and control everything

Firewall, VPN, VLAN, DHCP, routing rules, advanced notifications, GPS data processing, custom scenarios - RouterOS v7 gives complete control.
No subscriptions, no additional fees - just pure functionality forever.

Eliminate LTE bottlenecks

Chateau LTE7 supports 2×2 MIMO (DL) and Carrier Aggregation, so it can use multiple LTE frequency bands simultaneously.

This means:

•


  better performance on busy networks,





•


  greater stability in areas with weaker signal,





•


  faster and more sensitive connection.




You don't have to wait for the cable network to expand to have fast and stable internet at home. Mobile networks work just fine - if you use Chateau.

Product code: D53G-5HacD2HnD-TCR11e-LTE7
Architecture: ARM 32bit
CPU: IPQ-4019
CPU core count: 4
CPU nominal frequency: 448-896 (auto) MHz
CPU Thread count: 4
Switch chip model: IPQ-4019
RouterOS license: 4
Operating System: RouterOS v7
RAM size: 256 MB
Storage size: 16 MB
Storage type: FLASH
MTBF: Approximately 200'000 hours at 25C
Tested ambient temperature: -40°C to 70°C

Powering

Number of DC inputs: 1 (DC jack)
DC jack input Voltage: 12-28 V
Max power consumption: 20 W
Max power consumption without attachments: 14.1 W
Cooling type: Passive

Mobile

3G Category: R8 (DL: 42.2 Mbps; UL: 5.76 Mbps)
3G bands:
1 (2100MHz)
5 (850MHz)
8 (900MHz)
3 (1800MHz)
LTE Category: 7 (DL: 300 Mbps; UL: 100 Mbps)
MIMO DL: 2x2
MIMO UL: 1x1
LTE FDD bands:
1 (2100MHz)
3 (1800MHz)
5 (850MHz)
7 (2600MHz)
8 (900MHz)
20 (800MHz)
28 (700MHz)
LTE TDD bands:
38 (2600MHz)
40 (2300MHz)
41 (2500MHz)
TAC: 35312597

Wireless specifications

Wireless 2.4 GHz Max data rate: 300 Mbit/s
Wireless 2.4 GHz Number of chains: 2
Wireless 2.4 GHz standards: 802.11b/g/n
Antenna gain dBi for 2.4 GHz: 2
Wireless 2.4 GHz chip model: IPQ-4019
Wireless 2.4 GHz generation: Wi-Fi 4
Wireless 5 GHz Max data rate: 867 Mbit/s
Wireless 5 GHz Number of chains: 2
Wireless 5 GHz standards: 802.11a/n/ac
Antenna gain dBi for 5 GHz: 4
Wireless 5 GHz chip model: IPQ-4019
Wireless 5 GHz generation: Wi-Fi 5

Ethernet

10/100/1000 Ethernet ports: 5

Peripherals

Number of SIM slots: 1 Modem (Micro SIM)
Number of USB ports: 1
USB Power Reset: Yes
USB slot type: USB type A
Max USB current (A): 1

Other

Mode button: Yes

Certifications Approvals

Certification: CE, EAC, ROHS
IPs: 20
