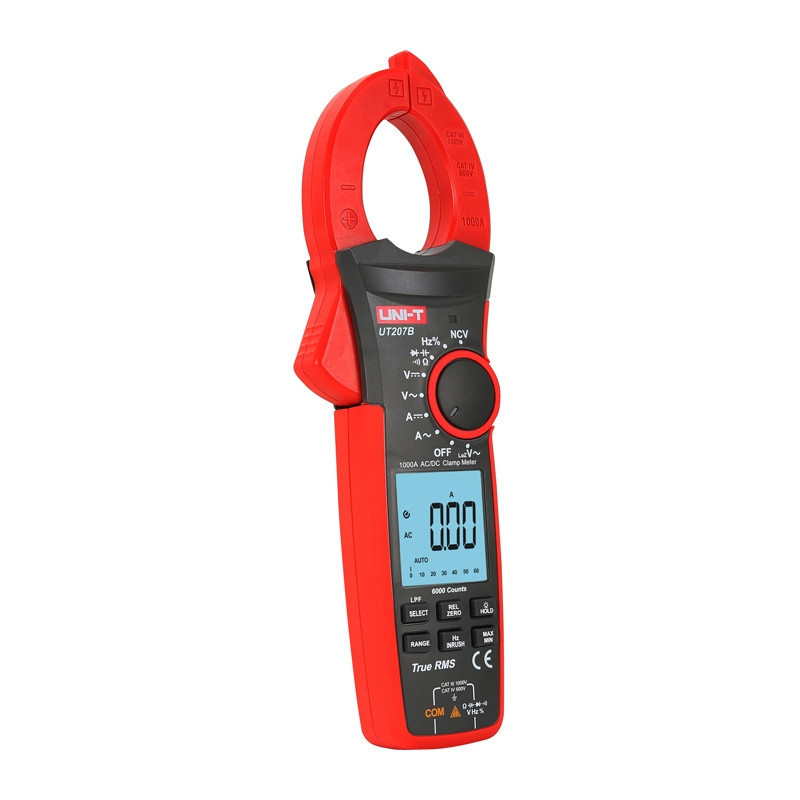

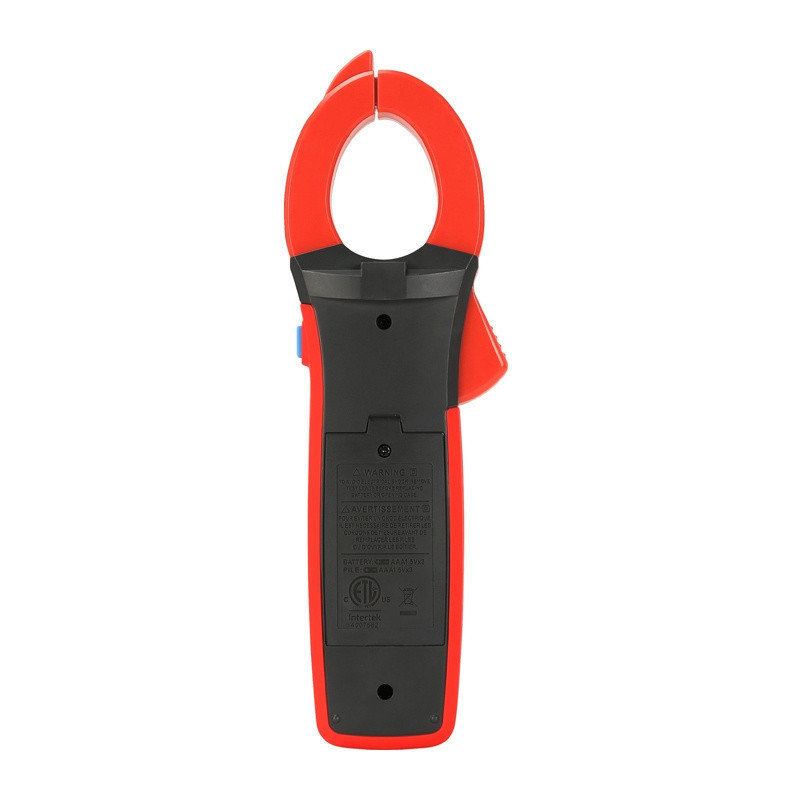

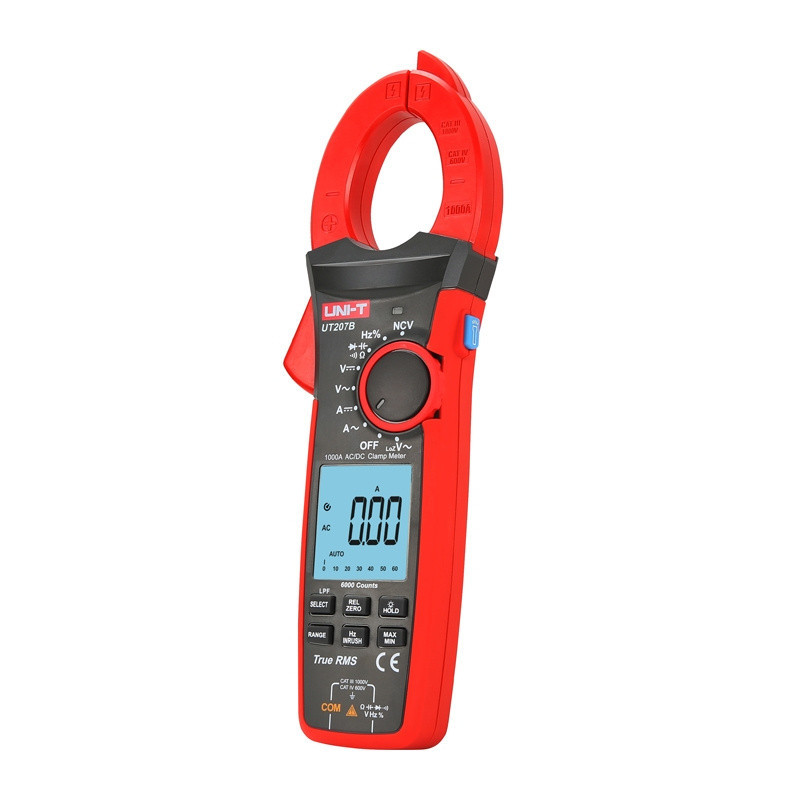

Tool - Uni-T UT207B True RMS Digital Clamp Meter 1000A AC/DC Current 1000V Voltage Black
Product reference:
14-6935750562079
Uni-T UT207B is a true RMS digital clamp meter for measuring AC and DC current up to 1000A and voltage up to 1000V. It has an inrush current measurement function, a large display, and meets CAT III 1000V / CAT IV 600V safety standards.
Tool - Uni-T UT207B True RMS Digital Clamp Meter 1000A AC/DC Current 1000V Voltage Black
Product reference:
14-6935750562079
Uni-T UT207B is a true RMS digital clamp meter for measuring AC and DC current up to 1000A and voltage up to 1000V. It has an inrush current measurement function, a large display, and meets CAT III 1000V / CAT IV 600V safety standards.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Uni-T UT207B Digital Caliper Meter
Uni-T UT207B is a true RMS digital clamp meter designed for AC and DC current measurement up to 1000A and voltage measurement up to 1000V. It has inrush current measurement function, large display and meets CAT III 1000V / CAT IV 600V safety standards.
- Measures AC and DC current to 1000A without breaking the circuit, ensuring fast and efficient diagnostics.
- Equipped with advanced features such as true RMS, inrush current measurement and non-contact voltage detection (NCV) for accurate measurements in a variety of conditions.
- Durable construction with large bar graph display, meets CAT III 1000V / CAT IV 600V safety standards for reliable use in electrical installations.
- The kit includes necessary accessories such as test leads and batteries so you can start using it right away.
Features | |
|---|---|
| Product Type | Digital Caliper Meter |
| Product Brand | Uni-T |
| Model | UT207B |
Specifications | |
| AC Current Measurement | Up to 1000A ±(2%+5) |
| DC Current Measurement | Up to 1000A ±(2%+5) |
| Inrush Current Measurement | Up to 1000A ±(10%+10) |
| AC Voltage Measurement | Up to 1000V ±(1.2%+3) |
| DC Voltage Measurement | Up to 1000V ±(0.5%+5) |
| Resistance Measurement | Up to 60MΩ ±(1%+2) |
| Capacitor Measurement | Up to 60mF ±(4%+5) |
| Frequency Measurement | 10Hz ~ 1MHz ±(0.1%+3) |
| Opening the pliers | 42 mm |
| Screen Size | 43 x 45 mm |
| Dimensions | 272 x 81 x 43.5 mm |
| Weight | 420g |
| Power Source | 3 x 1.5V battery (R03) |
| Safety Rating | CAT III 1000V / CAT IV 600V |
| Certificates of Conformity | CE, UKCA, cETLus |
Included Accessories | |
| |
| Height | 100mm |
| Length | 350mm |
| Weight | 600g |
| Width | 200mm |
