Tool - Uni-T UT206B Digital Clamp Meter 1000A AC Current 1000V AC / DC Voltage Black
Product reference: 14-6935750520635

Uni-T UT206B is a digital clamp ammeter designed to measure AC current up to 1000A and AC/DC voltage up to 1000V. It features True RMS measurement, current pulse function and a large display for easy use.

Įrankis - Uni-T UT206B Skaitmeninis Žnyplinis Matuoklis 1000A AC Srovė 1000V AC / DC Įtampa Juodas
Įrankis - Uni-T UT206B Skaitmeninis Žnyplinis Matuoklis 1000A AC Srovė 1000V AC / DC Įtampa Juodas
Įrankis - Uni-T UT206B Skaitmeninis Žnyplinis Matuoklis 1000A AC Srovė 1000V AC / DC Įtampa Juodas
Įrankis - Uni-T UT206B Skaitmeninis Žnyplinis Matuoklis 1000A AC Srovė 1000V AC / DC Įtampa Juodas
Įrankis - Uni-T UT206B Skaitmeninis Žnyplinis Matuoklis 1000A AC Srovė 1000V AC / DC Įtampa Juodas

Tool - Uni-T UT206B Digital Clamp Meter 1000A AC Current 1000V AC / DC Voltage Black

Product reference: 14-6935750520635

Uni-T UT206B is a digital clamp ammeter designed to measure AC current up to 1000A and AC/DC voltage up to 1000V. It features True RMS measurement, current pulse function and a large display for easy use.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
10170 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

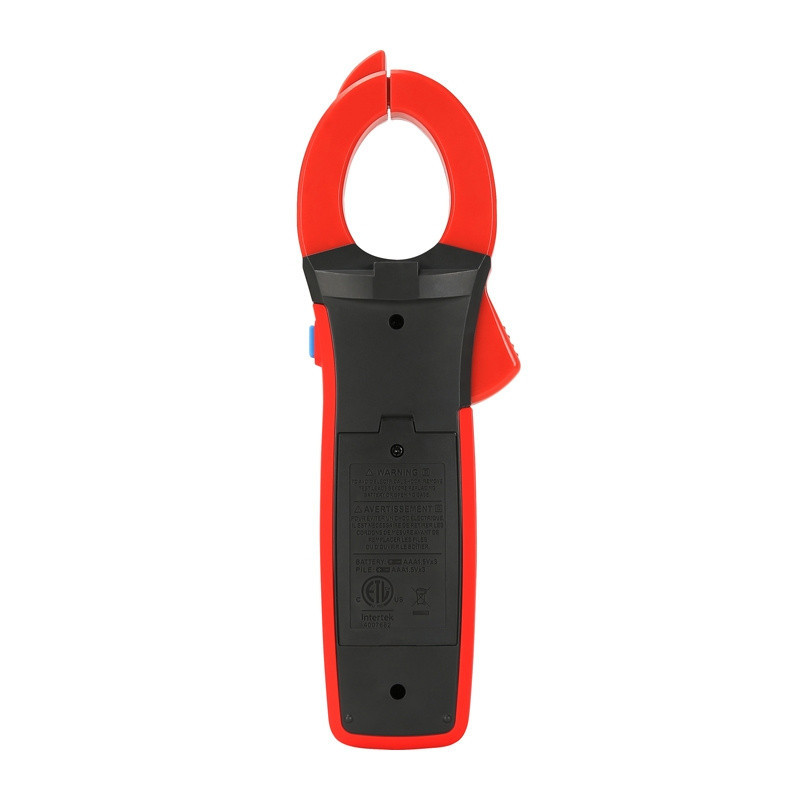

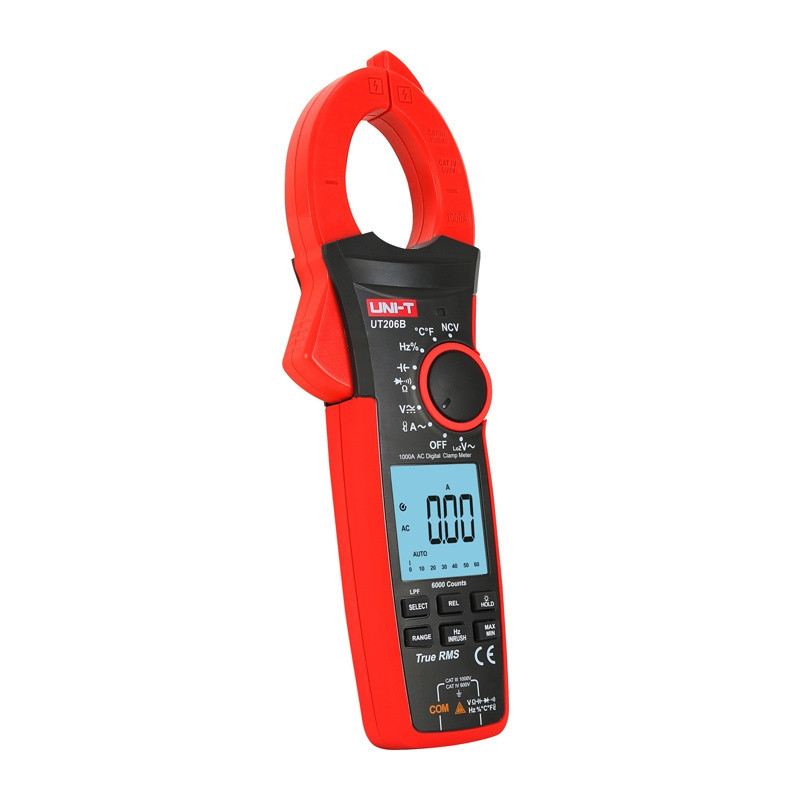

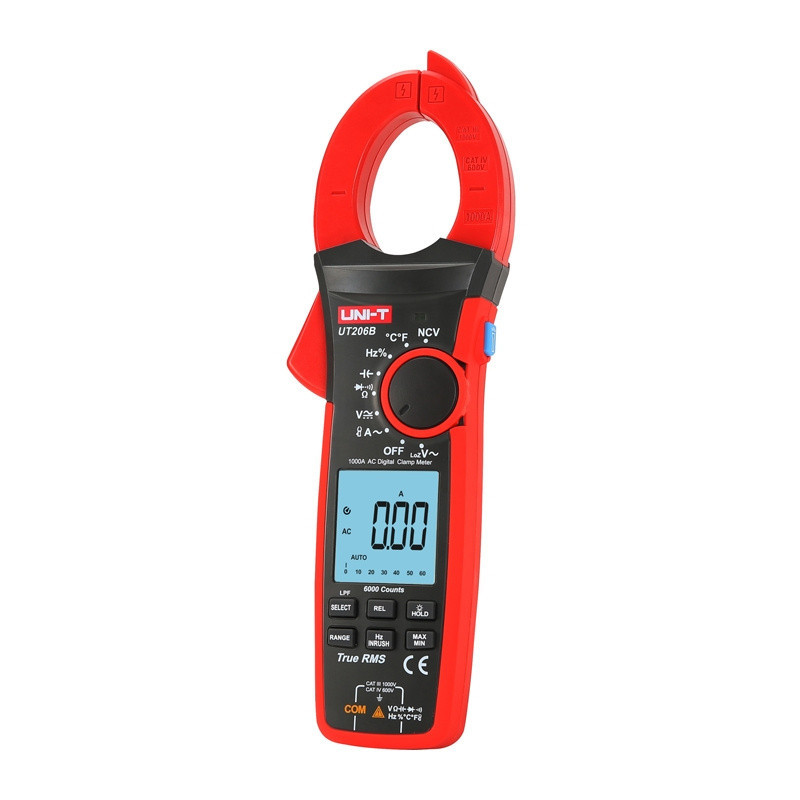

Uni-T UT206B Digital Clamp Meter


Uni-T UT206B is a digital clamp meter designed to measure AC current up to 1000A and AC/DC voltage up to 1000V. It features True RMS measurement function, current triggering measurement capability, and a large display for easy use.


  • Measures AC current up to 1000A and AC/DC voltage up to 1000V, providing versatile electrical diagnostic solutions.
  • True RMS technology guarantees accurate measurements even in difficult electrical environments.
  • The large display with bar graph makes it easy to read, and the 42 mm jaw opening ensures comfortable use.
  • Advanced features such as inrush current measurement and low-pass filter are included to increase measurement accuracy.

Features

Product Type Digital Caliper Meter
Product Brand Uni-T
Model UT206B

Specifications

AC Current Measurement Up to 1000A ±(2%+5)
Current Start Measurement Up to 1000A ±(10%+10)
AC Voltage Measurement Up to 1000V ±(1.2%+3)
DC Voltage Measurement Up to 1000V ±(0.5%+5)
Resistance Measurement Up to 60MΩ ±(1%+2)
Capacitor Measurement Up to 60mF ±(4%+5)
Temperature Measurement -40°C ~ 1000°C ±(1%+2)
Frequency Measurement 10Hz ~ 1MHz ±(0.1%+3)
Opening the Tongs 42 mm
Power supply 3x 1.5V battery (R03)
Dimensions 272 x 81 x 43.5 mm
Weight 465 g
Safety Class CAT III 1000V / CAT IV 600V
