Clamp Meter - UNI-T UT216A True RMS 600 A AC 750 V 1 000 V DC 30 mm Clamps With NCV
Product reference: 14-6935750512166

UNI-T UT216A - digital "True RMS" current clamp meter, designed to measure up to 600 A AC current, up to 750 V AC and up to 1,000 V DC voltage. 30 mm clamps, non-contact voltage detection, resistance and capacitance measurement, illuminated display, flashlight and "Data Hold" and "MAX/MIN" functions ensure convenient and accurate work.

Spaustuvinis Matuoklis - UNI-T UT216A True RMS 600 A AC 750 V 1 000 V DC 30 mm Žnyplės Su NCV
Spaustuvinis Matuoklis - UNI-T UT216A True RMS 600 A AC 750 V 1 000 V DC 30 mm Žnyplės Su NCV
Spaustuvinis Matuoklis - UNI-T UT216A True RMS 600 A AC 750 V 1 000 V DC 30 mm Žnyplės Su NCV

Clamp Meter - UNI-T UT216A True RMS 600 A AC 750 V 1 000 V DC 30 mm Clamps With NCV

Product reference: 14-6935750512166

UNI-T UT216A - digital "True RMS" current clamp meter, designed to measure up to 600 A AC current, up to 750 V AC and up to 1,000 V DC voltage. 30 mm clamps, non-contact voltage detection, resistance and capacitance measurement, illuminated display, flashlight and "Data Hold" and "MAX/MIN" functions ensure convenient and accurate work.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
83,09 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

UNI-T UT216A


UNI-T UT216A - digital clamp meter with true RMS measurement, designed to measure up to 600 A AC current, up to 750 V AC voltage and up to 1,000 V DC voltage. It features a 30 mm terminal opening, NCV detection function, resistance and capacitance measurement, illuminated display, flashlight, data hold and MAX/MIN functions.


  • Digital clamp meter with true RMS measurement for fast, non-contact measurement of AC current up to 600 A.
  • Measures AC voltage up to 750 V, DC voltage up to 1,000 V, resistance, capacitance, frequency and circuit integrity.
  • 30 mm terminal opening, NCV detection, diode test, data hold, relative measurement and MAX/MIN functions.
  • Illuminated 6000-dot display, built-in flashlight, automatic range selection and compact red and gray housing for convenient use on site.

Product information

Product type Digital clamp meter with true RMS measurement
Brand UNI-T
Model UT216A
Color Red and gray
Screen 6000-digit LCD display, 38 × 24 mm, with backlight

Technical specifications

AC accuracy ±(2.5% + 5)
AC frequency range 50-60Hz
AC voltage accuracy ±(1.2% + 5)
AC voltage frequency range 40-400Hz
DC voltage accuracy ±(0.8% + 1)
Resistance measurement Up to 60 MΩ; accuracy ±(1 % + 2)
Capacity measurement Up to 60 mF; accuracy ±(4 % + 5)
Features Diode test, circuit integrity test, auto ranging, auto power off, low battery indicator, built-in flashlight
Terminal opening 30 mm
Power supply 3 × 1.5V R03/AAA batteries
Dimensions 220 × 75 × 40mm
Weight 280 g
Certificates CE, UKCA, cETLus

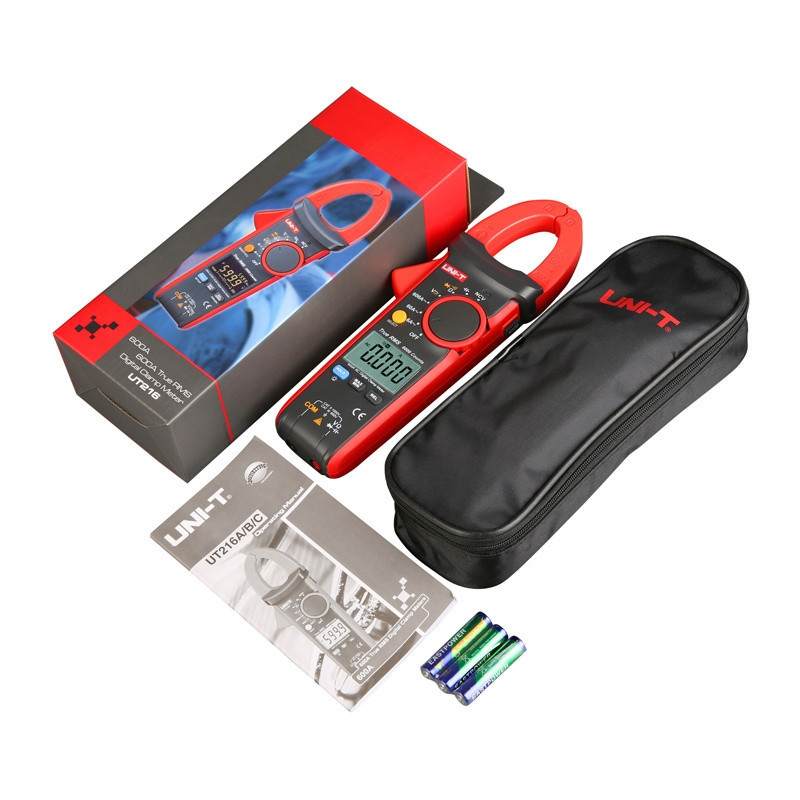

Included accessories

The set includes:
  • UT216A clamp meter
  • Measuring leads
  • 3 AAA batteries
  • Carrying case
  • User manual

Safety warning

Warning Use only for electrical measurements within the specified values. Follow the instructions in the user manual, wear appropriate personal protective equipment, and do not touch exposed conductors or test leads during measurement. Protect the meter from moisture and inspect the test leads before use.
