Digital Multimeter - UNI-T UT139A True RMS Multimeter 600 V 10 A 20 MΩ
Product reference:
14-6935750511398
UNI-T UT139A - true RMS digital multimeter for measuring AC and DC voltage up to 600 V, AC and DC current up to 10 A, and resistance up to 20 MΩ. The device has automatic and manual range selection, non-contact voltage detection (NCV), frequency, diode, battery and circuit integrity testing functions, as well as data capture, REL, MAX/MIN functions and a backlit LCD display.
Digital Multimeter - UNI-T UT139A True RMS Multimeter 600 V 10 A 20 MΩ
Product reference:
14-6935750511398
UNI-T UT139A - true RMS digital multimeter for measuring AC and DC voltage up to 600 V, AC and DC current up to 10 A, and resistance up to 20 MΩ. The device has automatic and manual range selection, non-contact voltage detection (NCV), frequency, diode, battery and circuit integrity testing functions, as well as data capture, REL, MAX/MIN functions and a backlit LCD display.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

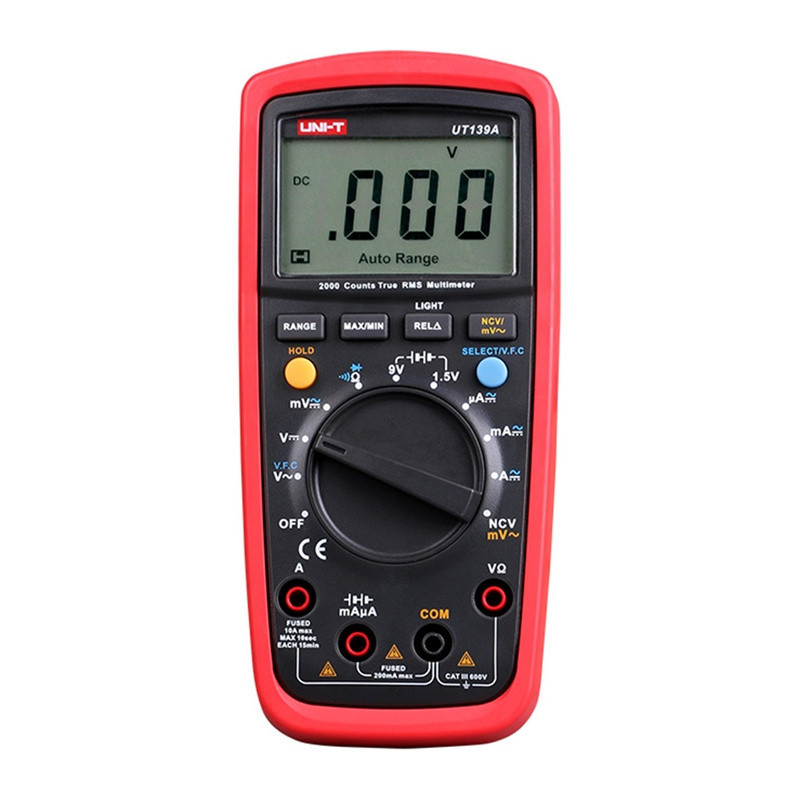

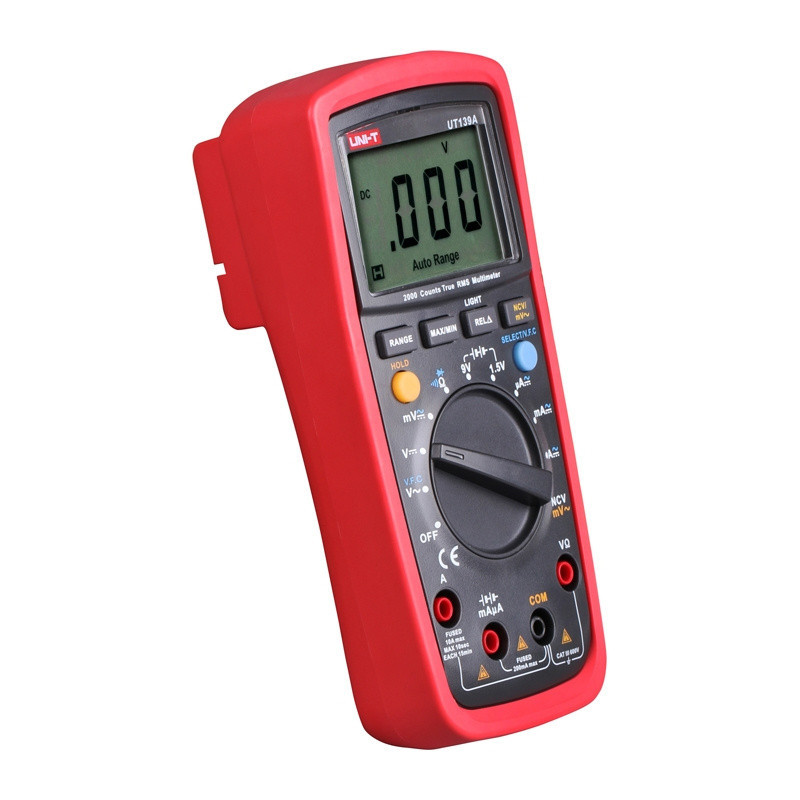

UNI-T UT139A True RMS Multimeter
UNI-T UT139A - true RMS digital multimeter, designed to measure up to 600 V AC and DC voltage, up to 10 A AC and DC current, and up to 20 MΩ resistance. It features automatic and manual range selection, non-contact voltage detection (NCV), frequency and diode testing, audible continuity signal, battery testing, "Data Hold", REL, MAX/MIN functions, and a backlit LCD display.
- True RMS digital multimeter for accurate AC and DC voltage and current measurements
- Measures voltage up to 600 V, current up to 10 A and resistance up to 20 MΩ
- Includes NCV function, frequency measurement, diode and battery testing, and audible integrity testing
- Automatic or manual selection of measurement limits, "Data Hold", REL, MAX/MIN functions and illuminated LCD display
Product information | |
|---|---|
| Product type | True RMS digital multimeter |
| Brand | UNI-T |
| Model | UT139A |
| Purpose | Electrical, electronic, installation and maintenance measurements |
Measurement specifications | |
| Voltage measurement | AC and DC voltage up to 600 V |
| Current measurement | AC and DC current up to 10 A |
| Resistance measurement | Up to 20 MΩ |
| Number of display readings | 2,000 readings |
| Measurement technology | True RMS value |
Features | |
| Selecting measurement limits | Automatic and manual |
| Additional measurements | Frequency, diode, battery and integrity testing |
| Voltage detection | Non-contact voltage detection (NCV) |
| AC voltage measurement function | VFC function for measuring variable frequency AC voltage |
| Measurement modes | Data Hold, REL and MAX/MIN |
| Screen | Backlit LCD display |
Construction and power supply | |
| Entrance protection | Protected inputs up to 600 Vrms |
| Low battery indicator | Yes |
| Power source | Two AA batteries |
| Dimensions | 175 × 81 × 48.5mm |
Safety warning | |
| Important safety information | Use the multimeter only for its intended purpose - to make electrical measurements. Follow the correct measurement procedure, select the appropriate measurement range and input terminals, and do not exceed the specified voltage or current limits. Check the test leads and the meter before use, and disconnect the power supply when changing connectors or batteries. The NCV function is an auxiliary function and cannot confirm that there is no voltage in the circuit. |
| Height | 100mm |
| Length | 300mm |
| Weight | 500g |
| Width | 200mm |
