UNI-T UT123D Universal Multimeter


The UT123D is a True RMS digital multimeter for measuring voltage, current, resistance and capacitance. It features automatic range selection, non-contact voltage detection and a compact design for easy portability.


  • Advanced True RMS multimeter for accurate electrical measurements in a variety of environments.
  • Compact and lightweight design, making it easy to carry and use on the go.

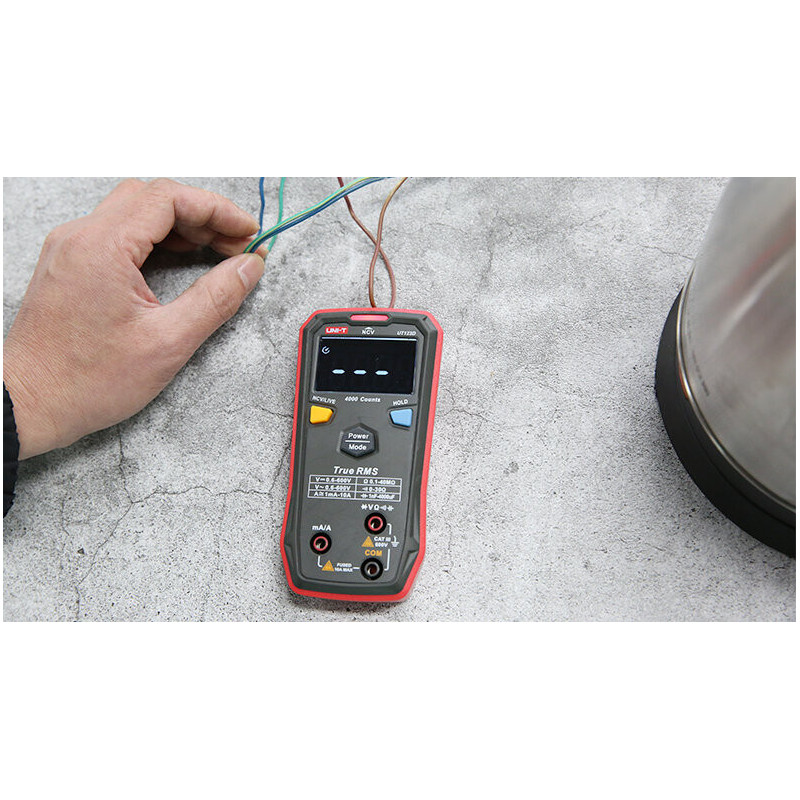

  • Non-contact voltage detection (NCV) for safe and fast testing of live wires.
  • Automatic range selection and function recognition simplify operation for both beginners and professionals.

Features

Product type Digital multimeter
Brand Uni-T
Model UT123D

Specifications

Power supply 2 x AAA batteries (included)
Display type EBTN, white characters on a black background
Display dimensions 44 x 26 mm
Maximum display value 4099
Dimensions 130 x 65 x 28 mm
Weight 196 g

Technical data

DC voltage measurement 600V ±(0.5%+3)
AC voltage measurement 600V ±(0.8%+3)
DC current measurement 10A ±(1%+3)
AC current measurement 10A ±(1.2%+3)
Resistance measurement 40MΩ ±(0.8%+2)
Capacity measurement 4000μF ±(4%+5)

Additional information

Non-contact voltage detection Yes (NCV)
Diode tester Yes
Continuity tester Yes, with audible signal
Overload protection Yes
Automatic range selection Yes
Function storage Yes

Height50mm
Length200mm
Weight300g
Width100mm
