Digital Multimeter - Habotest HT127B 6,000 Counts True RMS CAT III 600 V Multimeter
Product reference:
14-5907489609425
Habotest HT127B - digital multimeter with 6,000 counts resolution for measuring AC and DC voltage and current, resistance, capacitance, frequency, temperature and circuit continuity. It features True RMS, diode test, NCV and Live Test functions, data logging, backlight, flashlight and CAT III 600 V safety class.
Digital Multimeter - Habotest HT127B 6,000 Counts True RMS CAT III 600 V Multimeter
Product reference:
14-5907489609425
Habotest HT127B - digital multimeter with 6,000 counts resolution for measuring AC and DC voltage and current, resistance, capacitance, frequency, temperature and circuit continuity. It features True RMS, diode test, NCV and Live Test functions, data logging, backlight, flashlight and CAT III 600 V safety class.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

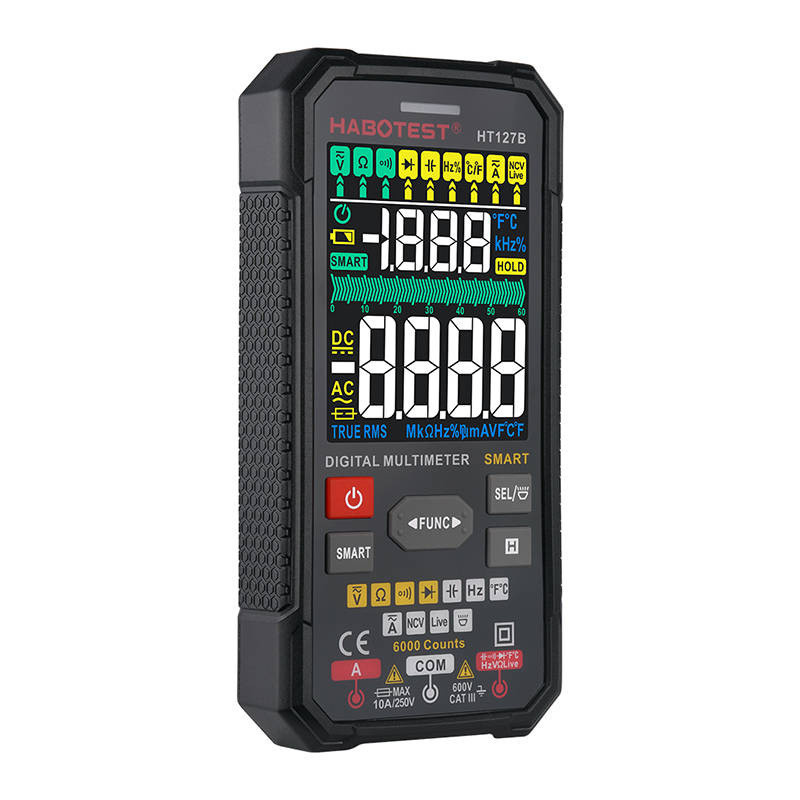

Habotest HT127B digital multimeter
Habotest HT127B - 6,000-count digital multimeter for measuring AC and DC voltage and current, resistance, capacitance, frequency, temperature, and circuit continuity. It features True RMS function, diode test, NCV and "Live Test" warnings, data capture, backlight, flashlight, and CAT III 600 V safety class.
- Multifunctional digital multimeter that accurately measures AC and DC voltage and current, resistance, capacitance, frequency, temperature and other parameters.
- True RMS function, diode and circuit continuity testing, "Live Test" and non-contact voltage detection with audible and visual warnings.
- Clear backlit 6,000-count display, data logging, low battery and blown fuse indicators, and automatic shut-off.
- Compact, insulated housing with built-in flashlight. Powered by four AAA batteries, meets CAT III 600 V requirements.
Product information | |
|---|---|
| Product type | Digital multimeter |
| Brand | Habotest |
| Model | HT127B |
| Screen | 6,000-dot VA display with backlight |
| Dimensions | 145 × 71.5 × 26mm |
Measurement specifications | |
| DC voltage range | 600mV, 6V, 60V, 600V |
| AC voltage range | 6V, 60V, 600V |
| DC range | 600mA, 10A |
| AC range | 600mA, 10A |
| Resistance range | 600 Ω, 6 kΩ, 60 kΩ, 600 kΩ, 6 MΩ, 60 MΩ |
| Capacity range | 6 nF, 60 nF, 600 nF, 6 µF, 60 µF, 600 µF, 6 mF |
| Frequency range | 60 Hz, 600 Hz, 6 kHz, 60 kHz, 600 kHz, 6 MHz, 10 MHz |
| Fill factor range | 1.0-99.0% |
| Temperature range | -40°C-1000°C / -40°F-1832°F |
| Diode testing | 0-3V |
| Checking the integrity of the circuit | Audible signal when resistance is less than 50 Ω |
Features and safety | |
| True RMS | Yes |
| Non-contact voltage detection | NCV with audible and visual warnings |
| "Live Test" | Audible and visual warnings |
| Data capture | Yes |
| Indicators | Low battery, blown fuse and input jack indicators |
| Automatic shutdown | Yes |
| Safety class | EN 61010-1, CAT III 600 V |
Power supply and equipment | |
| Power source | 4 × 1.5V AAA batteries |
| Additional function | Built-in flashlight |

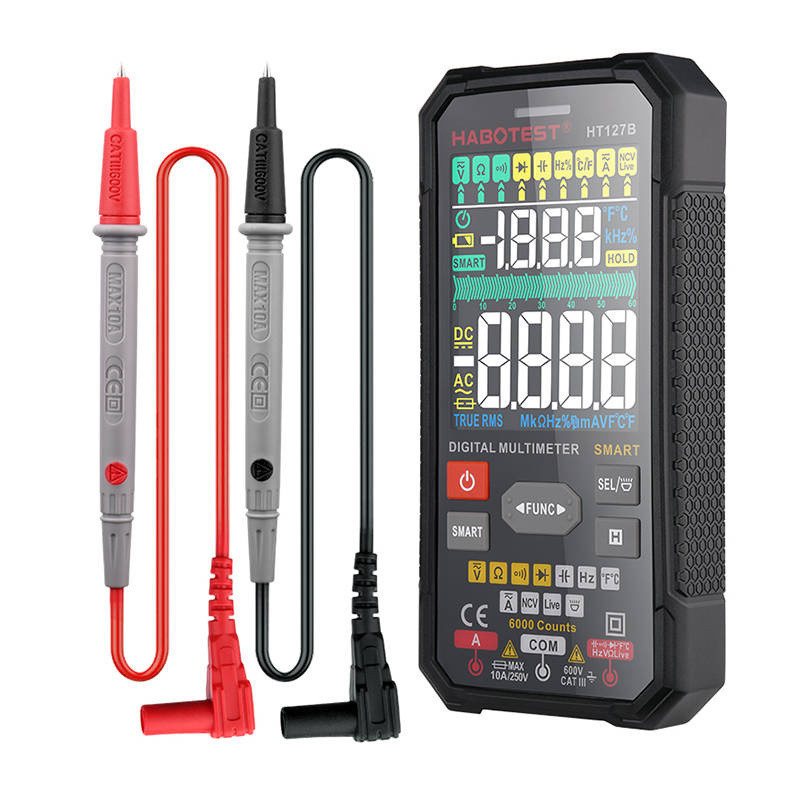

| Included | Digital multimeter, test leads and instruction manual |
Safety warning | |
| Warning | Use only for electrical measurements within the specified ranges and in accordance with the CAT III 600 V safety class. Follow the operating instructions to select the correct input sockets and function before measuring. Never measure voltage with leads connected to the current input. Check the multimeter and test leads before use, and disconnect the power supply before changing batteries or fuses. |
| Height | 200mm |
| Length | 300mm |
| Weight | 450 g |
| Width | 150mm |
