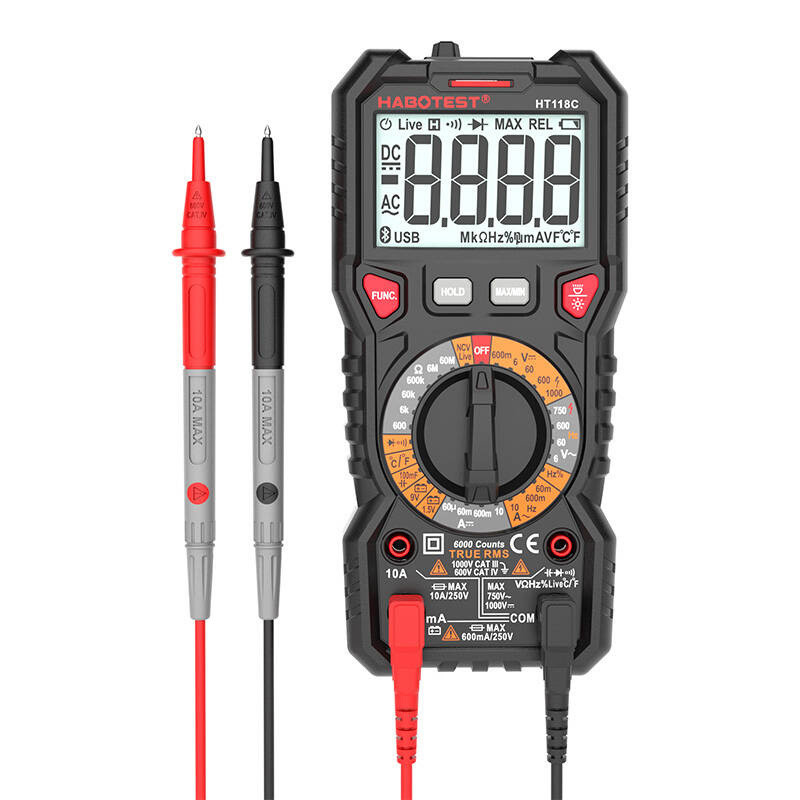

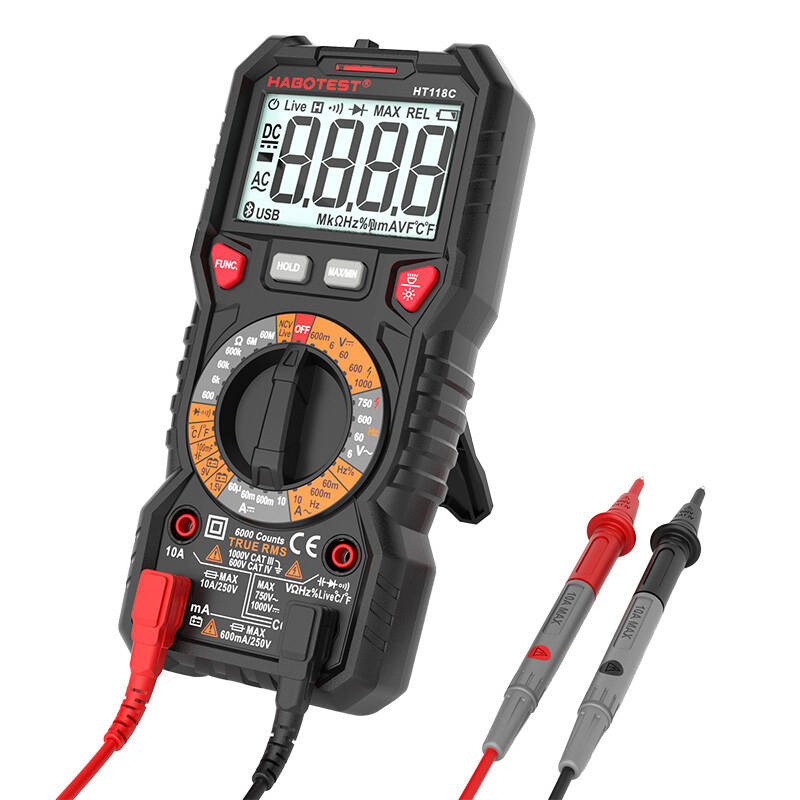

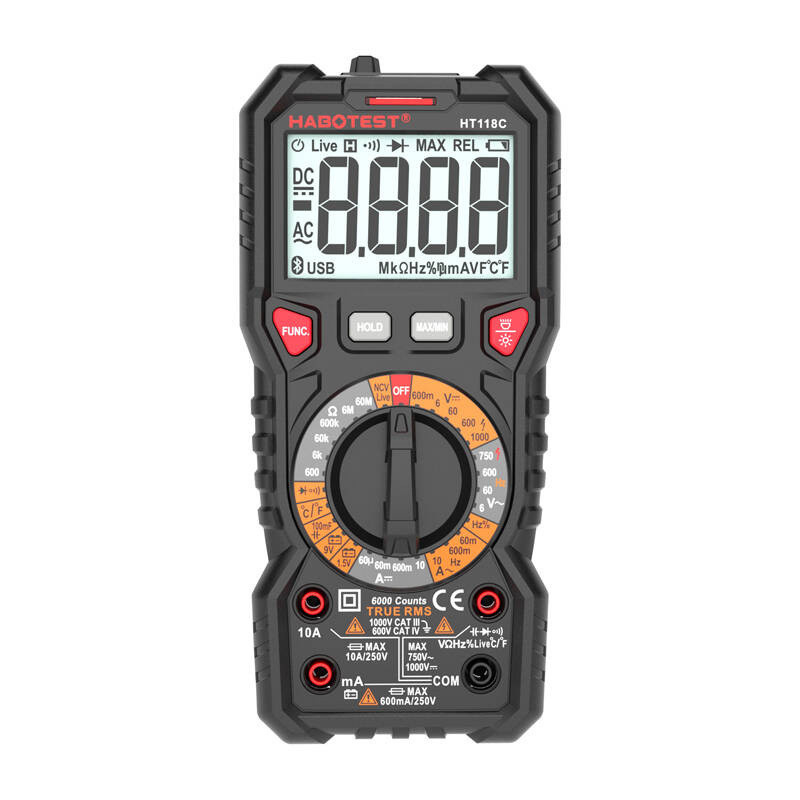

Digital Multimeter - Habotest HT118C "True RMS", NCV, 1.5 / 9 V Battery Tester
Product reference: 14-5907489606615

Habotest HT118C - digital True RMS multimeter for measuring AC and DC voltage, current, resistance, capacitance, frequency, circuit continuity, diodes and temperature. Manual range selection, non-contact voltage detection, 1.5 and 9 V battery testing, illuminated display, flashlight and foldable stand ensure convenient work in various conditions.

Skaitmeninis multimetras - Habotest HT118C "True RMS", NCV, 1,5 / 9 V Baterijų Tikrinimas
Skaitmeninis multimetras - Habotest HT118C "True RMS", NCV, 1,5 / 9 V Baterijų Tikrinimas
Skaitmeninis multimetras - Habotest HT118C "True RMS", NCV, 1,5 / 9 V Baterijų Tikrinimas
Skaitmeninis multimetras - Habotest HT118C "True RMS", NCV, 1,5 / 9 V Baterijų Tikrinimas
Skaitmeninis multimetras - Habotest HT118C "True RMS", NCV, 1,5 / 9 V Baterijų Tikrinimas
Skaitmeninis multimetras - Habotest HT118C "True RMS", NCV, 1,5 / 9 V Baterijų Tikrinimas

Digital Multimeter - Habotest HT118C "True RMS", NCV, 1.5 / 9 V Battery Tester

Product reference: 14-5907489606615

Habotest HT118C - digital True RMS multimeter for measuring AC and DC voltage, current, resistance, capacitance, frequency, circuit continuity, diodes and temperature. Manual range selection, non-contact voltage detection, 1.5 and 9 V battery testing, illuminated display, flashlight and foldable stand ensure convenient work in various conditions.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
43,07 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

Habotest HT118C True RMS Digital Multimeter


Habotest HT118C - true RMS digital multimeter for measuring AC and DC voltage and current, resistance, capacitance, frequency, continuity, diodes and temperature. Manual range selection, NCV detection, 1.5 and 9 V battery check, illuminated display, flashlight and foldable stand help you perform electrical measurements in a variety of conditions.


  • True RMS digital multimeter for accurate AC and DC voltage and current measurements
  • Measures resistance, capacitance, frequency, duty cycle and temperature from -40°C to 1,000°C
  • Manual range selection, NCV and voltage wire detection, continuity and diode testing, as well as 1.5V and 9V battery testing
  • 6000-digit LCD display with two-color backlight, flashlight, data hold, minimum and maximum value recording and automatic power off

Product information

Product type True RMS digital multimeter
Brand Habotest
Model HT118C
Screen 6000-dot LCD display with two-color backlight
Dimensions 188 × 88 × 58mm
Weight Approximately 350g

Measurement specifications

Constant voltage 600 mV, 6 V, 60 V, 600 V and 1000 V; accuracy ±(0.5% + 3)
Alternating voltage 6 V, 60 V, 600 V and 750 V; accuracy ±(1.0 % + 5)
Direct current 60 µA, 60 mA, 600 mA and 10 A; accuracy ±(0.8% + 3) or ±(1.2% + 3) at 10 A
Alternating current 60 mA, 600 mA and 10 A; accuracy ±(1.0 % + 3) or ±(1.5 % + 3) at 10 A
Resistance 600 Ω to 60 MΩ; accuracy ±(0.8% + 3)
Capacity 10 nF to 100 mF; accuracy ±(4.0% + 3) or ±(5.0% + 5) for 100 mF
Frequency 10 Hz to 10 MHz; accuracy ±(1.0% + 23)
Duty cycle 1-99%; accuracy ±(1.0% + 2)
Temperature -40°C to 1000°C or -40°F to 1832°F; accuracy ±(1.0% + 3)
Frequency bandwidth 1 kHz

Functions and features

Range selection Manual
Verification functions Continuity, diode, voltage lead, NCV and 1.5 and 9 V battery testing
Measurement functions True RMS value, data hold, minimum and maximum value recording and data storage
Warnings Audio and visual signals to warn of integrity, voltage wiring and NCV detection
Lighting Two-color lighting; turns orange when exceeding 80 V or 1 A

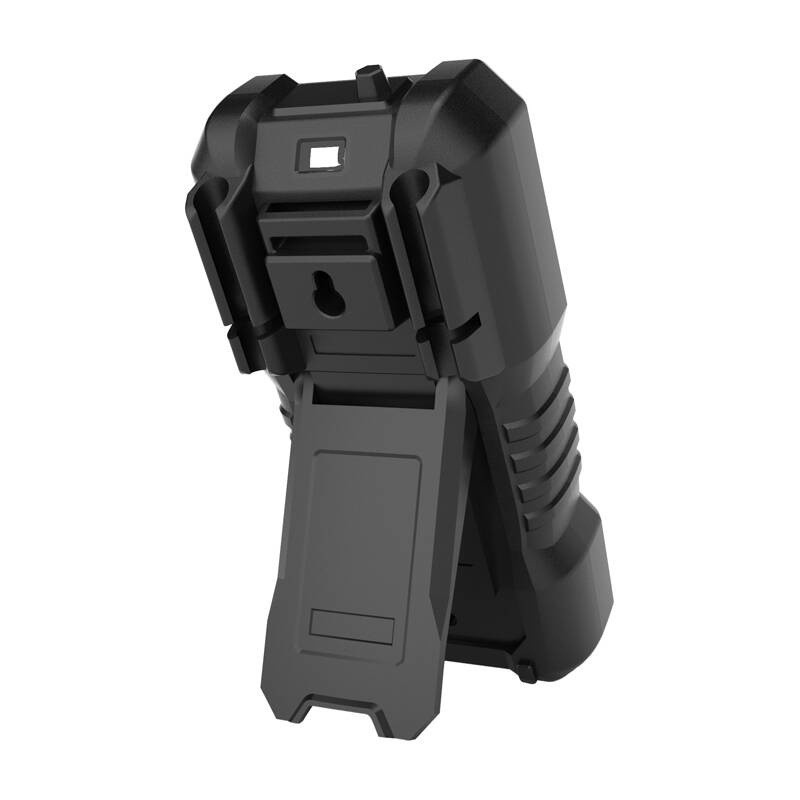

Additional equipment Built-in flashlight, input jack LED indicator and foldable stand
Power supply 2 × AA batteries
Energy management Low battery indicator and automatic shut-off

Security and compliance

Safety category CAT III 1000V and CAT IV 600V
Standards EN 61010-1, EN 61010-2-030, EN 61010-2-033 and EN 61326-1
Safety warning Use only for electrical measurements within the specified ranges and safety categories. Before use, check the multimeter and test leads, select the correct function and input terminal, and never exceed the specified voltage or current. Do not use damaged equipment and do not measure resistance, continuity, diodes, capacitance, or temperature on circuits that are live. NCV and voltage lead detection are only supplementary checks and cannot replace direct measurement. Protect the multimeter from moisture and follow the operating instructions.
