Digital Multimeter - Habotest HT118A True RMS With NCV And Flashlight
Product reference:
14-5907489606622
Habotest HT118A - digital true RMS multimeter with automatic range selection for measuring AC and DC voltage, current, resistance, capacitance, frequency and temperature. Equipped with non-contact voltage detection (NCV), circuit continuity and diode test functions, illuminated LCD display, built-in flashlight, data recording and folding stand.
Digital Multimeter - Habotest HT118A True RMS With NCV And Flashlight
Product reference:
14-5907489606622
Habotest HT118A - digital true RMS multimeter with automatic range selection for measuring AC and DC voltage, current, resistance, capacitance, frequency and temperature. Equipped with non-contact voltage detection (NCV), circuit continuity and diode test functions, illuminated LCD display, built-in flashlight, data recording and folding stand.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

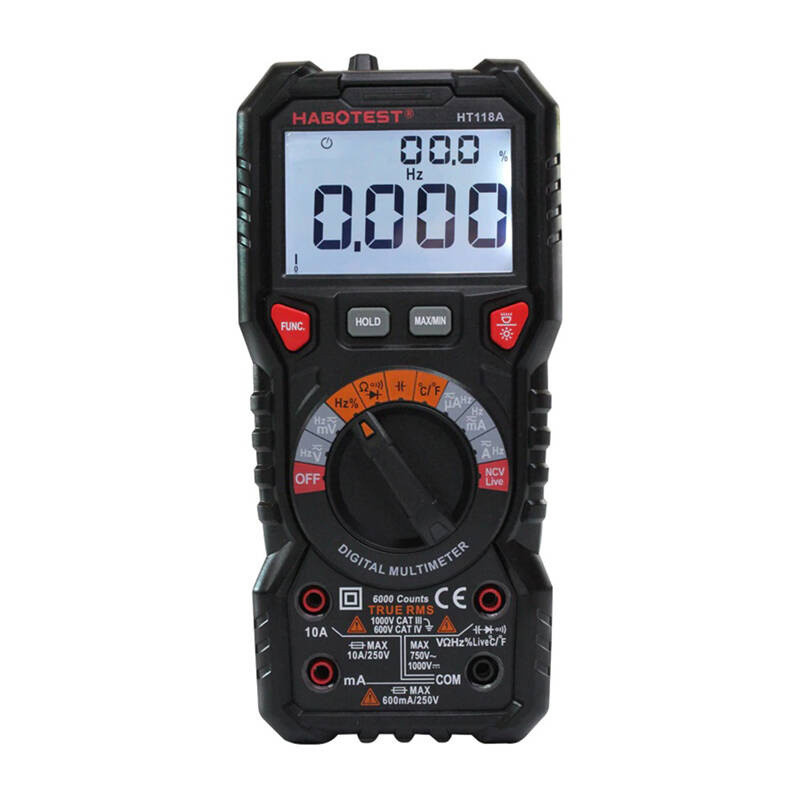

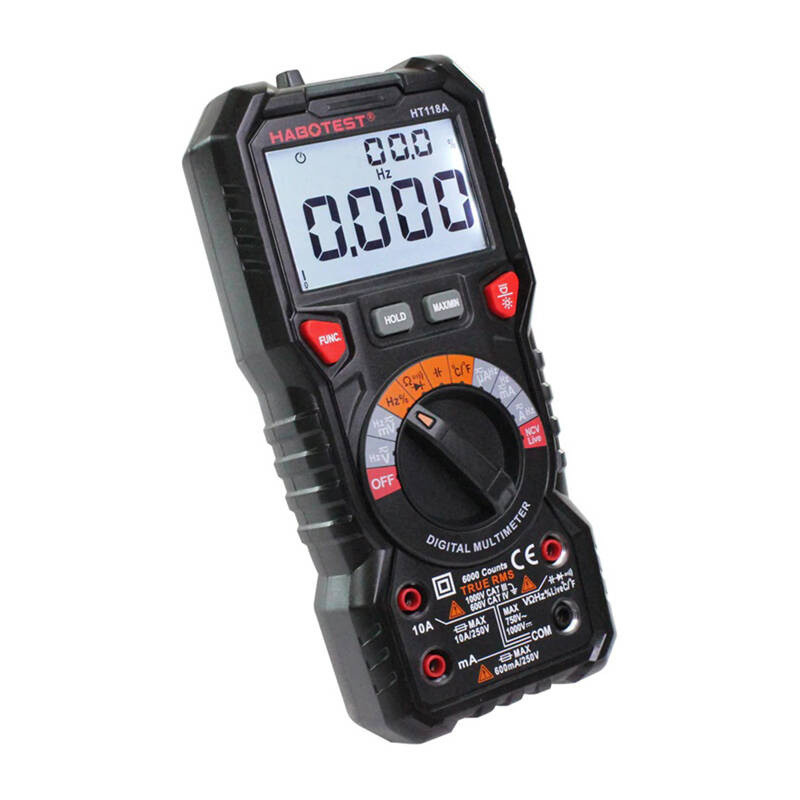

Habotest HT118A True RMS multimeter with NCV function and flashlight
Habotest HT118A is a digital "True RMS" multimeter with automatic range selection. It can measure AC and DC voltage and current, resistance, capacitance, frequency and temperature. The device has an NCV function, circuit continuity and diode test, illuminated LCD display, built-in flashlight, data hold function and a folding stand.
- True RMS multimeter that accurately measures AC and DC voltage and current, resistance, capacitance, frequency, temperature and other parameters
- Autoranging, clear 6000-count LCD display with dual backlight, bar graph and color alert
- NCV, live conductor detection, circuit continuity and diode testing with audible and visual alerts

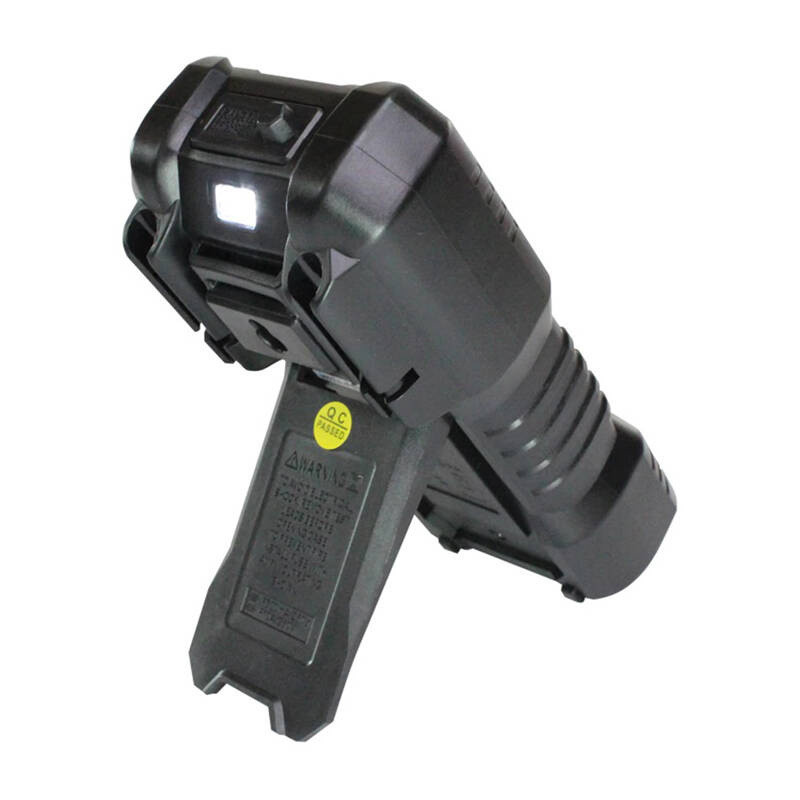

- Built-in flashlight, foldable stand, data hold and save functions, MAX/MIN values and automatic shut-off
Product information | |
|---|---|
| Product type | Digital multimeter |
| Brand | Habotest |
| Model | HT118A |
| Measurement type | True RMS |
| Range selection | Automatic |
Technical specifications | |
| DC voltage | 600 mV; 6 V, 60 V, 600 V and 1000 V; accuracy ±(0.5 % + 3) |
| Alternating voltage | 600 mV; 6 V, 60 V, 600 V and 750 V; accuracy ±(1.0 % + 5) |
| Direct current | 600 µA, 6000 µA, 60 mA, 600 mA, 6 A and 10 A; accuracy ±(0.8 % + 3) up to 600 mA and ±(1.2 % + 3) at 6 A/10 A |
| Alternating current | 600 µA, 6000 µA, 60 mA, 600 mA, 6 A and 10 A; accuracy ±(1.0 % + 3) up to 600 mA and ±(1.5 % + 3) at 6 A/10 A |
| Resistance | 600 Ω to 60 MΩ; accuracy ±(0.8% + 3) |
| Capacity | 10 nF to 100 mF; accuracy ±(4.0% + 3) up to 10 mF and ±(5.0% + 5) at 100 mF |
| Frequency | 10 Hz to 10 MHz; accuracy ±(1.0% + 3) |
| Duty cycle | 1-99%; accuracy ±(1.0% + 2) |
| Temperature | -40°C to 1000°C or -40°F to 1832°F; accuracy ±(1.0% + 3) |
| Number of display columns | 6000 |
| Measurement category | CAT III 1000V, CAT IV 600V |
| Applicable standards | EN 61010-1, EN 61010-2-030, EN 61010-2-033 and EN 61326-1 |
Functions and design | |
| Screen | LCD display with dual backlight, bar graph and color alert |
| Non-contact voltage detection | Yes, with audible and visual warnings |
| Live conductor detection | Yes, with audible and visual warnings |
| Checking the integrity of the circuit | Yes, with audible and visual warnings |
| Diode testing | Yes |
| Additional features | Data hold and save, MAX/MIN values, low battery indicator and input jack LED indicator |
| Flashlight | Built-in |
| Stand | Foldable rear stand |
| Automatic shutdown | After approximately 15 minutes of inactivity |
Physical specifications | |
| 188 × 88 × 58mm | |
| Weight | About 350g |
| Power source | 2 × AA batteries included |
Safety warning | |
| Safe use | Use only for electrical measurements within the specified ranges and measurement categories. Follow the operating instructions, use appropriate test leads, and do not touch exposed probe tips or live conductors during measurement. Disconnect power before testing resistance, continuity, capacitance, or diodes. Keep out of reach of children and do not use the multimeter if it or its leads are damaged. |
| Height | 100mm |
| Length | 300mm |
| Weight | 500g |
| Width | 200mm |
