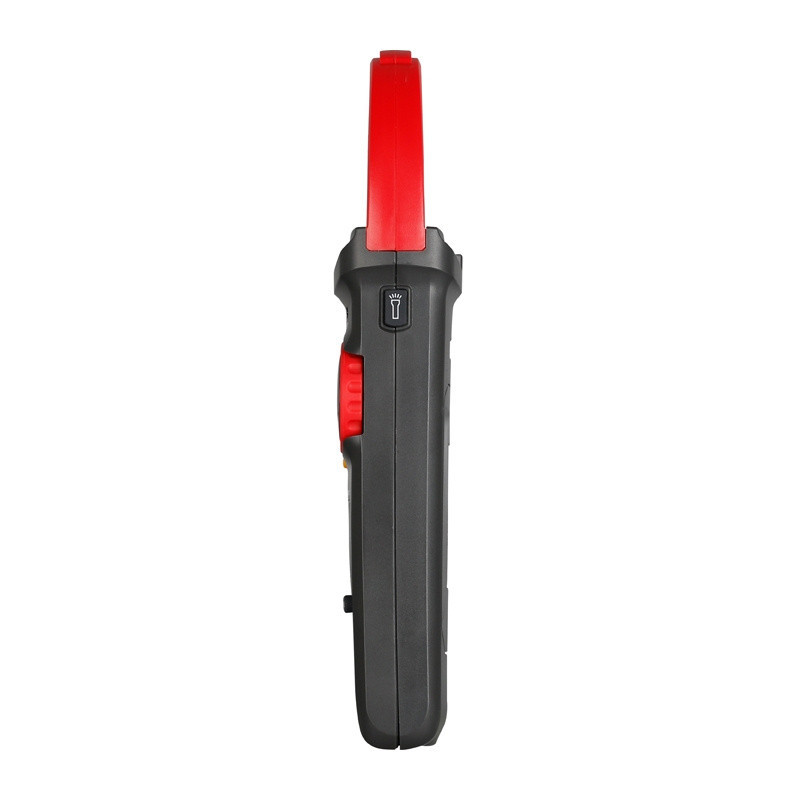

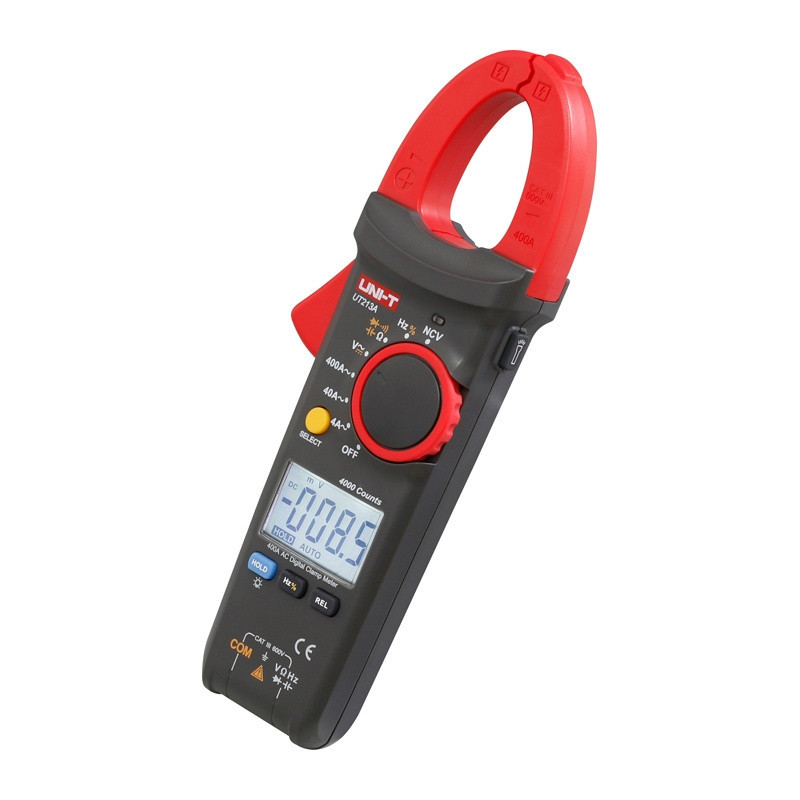

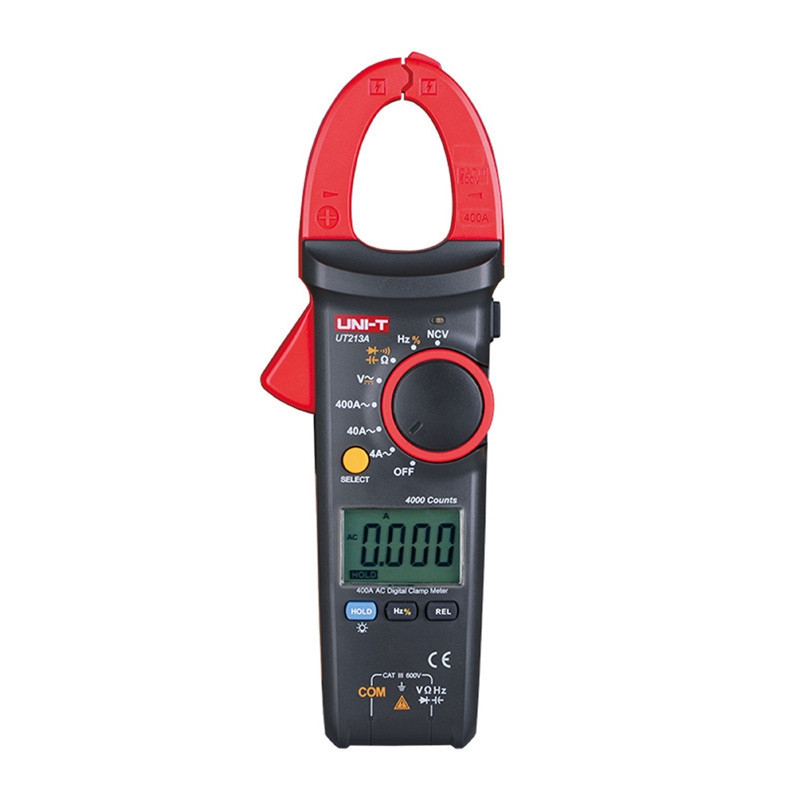

Digital current clamp - Uni-T UT213A 400 A 2nd generation
Product reference: 14-6935750521311

Uni-T UT213A - digital current meter with clamps, designed for measuring up to 400 A alternating current, up to 600 V alternating and direct voltage, resistance, capacitance and frequency. Equipped with 30 mm clamp opening, non-contact voltage detection function, continuity and diode testing, illuminated display and integrated flashlight.

Skaitmeninės srovės replės - Uni-T UT213A 400 A 2-oji karta
Skaitmeninės srovės replės - Uni-T UT213A 400 A 2-oji karta
Skaitmeninės srovės replės - Uni-T UT213A 400 A 2-oji karta
Skaitmeninės srovės replės - Uni-T UT213A 400 A 2-oji karta
Skaitmeninės srovės replės - Uni-T UT213A 400 A 2-oji karta
Skaitmeninės srovės replės - Uni-T UT213A 400 A 2-oji karta

Digital current clamp - Uni-T UT213A 400 A 2nd generation

Product reference: 14-6935750521311

Uni-T UT213A - digital current meter with clamps, designed for measuring up to 400 A alternating current, up to 600 V alternating and direct voltage, resistance, capacitance and frequency. Equipped with 30 mm clamp opening, non-contact voltage detection function, continuity and diode testing, illuminated display and integrated flashlight.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
49,38 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

Uni-T UT213A 400 A, 2nd generation


" Uni-T UT213A" - digital clamp multimeter for measuring AC current up to 400 A, AC and DC voltage up to 600 V, resistance, capacitance and frequency. Equipped with a 30 mm clamp opening, non-contact voltage (NCV) detection, continuity and diode test functions, illuminated display and integrated flashlight.


  • 400 A AC clamp multimeter with 30 mm mouth opening for everyday electrical and HVAC equipment diagnostics
  • Measures AC and DC voltage up to 600 V, resistance up to 40 MΩ, capacitance up to 100 µF and frequency from 10 Hz to 1 MHz
  • Convenient features: automatic measuring range selection, NCV detection, continuity and diode testing, data capture, relative mode, LCD display illumination and integrated flashlight
  • CAT III 600 V safety rating, compact 280 g body and clear 4,000-segment display for convenient everyday use

Product information

Product type Digital clamp multimeter
Brand Uni-T
Model UT213A, 2nd generation
Measurement category CAT III 600V

Technical data

AC accuracy ±(1.8% + 9)
AC voltage accuracy ±(1.2% + 5)
DC voltage accuracy ±(0.8% + 1)
Impedance accuracy ±(1% + 2)
Capacity accuracy ±(4% + 5)
Frequency accuracy ±(0.1% + 4)
Screen 4,000-segment LCD display, 38 × 24 mm
Opening the mouth 30 mm
Power source 3 × 1.5V R03/AAA batteries

Features

Measurement and convenience features NCV detection, diode test, continuity beeper, data hold, relative mode, auto-ranging, auto-off, low battery indicator, LCD backlight and built-in flashlight
Input protection Integrated input protection for routine electrical measurements

Physical data

Dimensions 220 × 75 × 40mm
Weight 280 g
Certificates CE, UKCA, cETLus

Included accessories

The set includes:
  • UT213A clamp multimeter
  • Test leads, 1 pair
  • 3 AAA batteries
  • User manual

Safety warning

Warning For electrical measurements only. Use the multimeter, test leads and clamps within the specified parameters and within the measurement category CAT III 600 V. Inspect the device and leads before use; do not use if damaged. Follow the user manual and proper electrical safety procedures. Keep out of reach of children.

Height100mm
Length300mm
Weight420g
Width150mm
