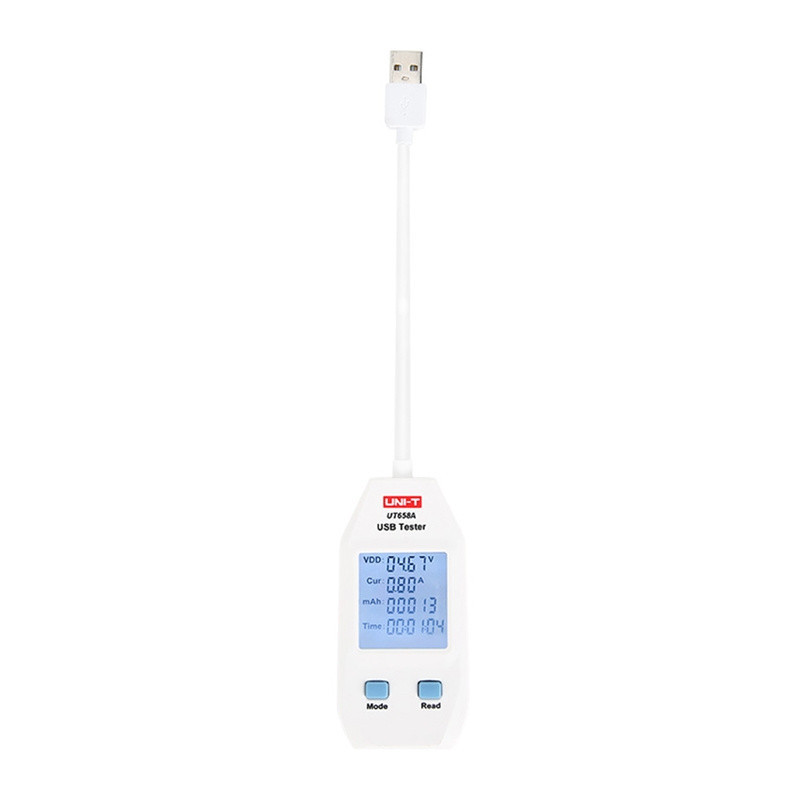

Uni-T UT658A USB tester


The Uni-T UT658A is a USB tester designed to monitor the parameters of chargers, power banks, USB Type-A cables, and other power supply devices. The device measures voltage in the range of 4-24 V DC, current from 0.05 to 3 A DC, capacity up to 99,999 mAh, energy up to 1000 Wh, equivalent circuit resistance from 1 to 480 Ω, and D+ and D- data line voltages up to 3.3 V, allowing for a quick assessment of power quality and the condition of the tested equipment. The model supports USB Type-A ports, USB 2.0 and 3.0 standards, and QC 3.0 fast charging. Additionally, it allows for the storage of 10 data sets and the recording of measurements for up to 99 hours, 59 minutes, and 59 seconds with a resolution of 1 second. Simultaneous display of key parameters on the screen facilitates result analysis, while the compact dimensions of 93 × 45 × 13 mm and a weight of 50.6 g make the device convenient for everyday use and easy to carry.



USB tester connected to a wall charger, displaying charging voltage and current parameters on the screen.


Included



  • USB tester

  • User manual




Specifications




























Manufacturer Uni-T
Model UT658A
Product type USB tester
Input and output ports USB Type-A
Data transmission standards USB 2.0 / 3.0
Voltage measurement range 4-24 V DC
Voltage resolution 0.01 V
Current measurement range 0.05-3 A DC
Current resolution 0.01 A
Capacity measurement range 0-99,999 mAh
Capacity resolution 1 mAh
Energy measurement range 0-1000 Wh
Circuit equivalent resistance range 1-480 Ω
Data line D+ voltage range 0-3.3 V
Data line D- voltage range 0-3.3 V
Data logging memory 10 data sets
Maximum recording time 99 h 59 min 59 s
Time resolution 1 s
Supported fast charging protocols QC 3.0
Color White
Dimensions 93 × 45 × 13 mm
Weight 50.6 g
Certifications CE, UKCA


Gamintojas UNI-T
Gross weight 70 g.
Net weight 56 g.
Box length 12,50 cm.
Box width 6,50 cm.
Box height 4,00 cm.
