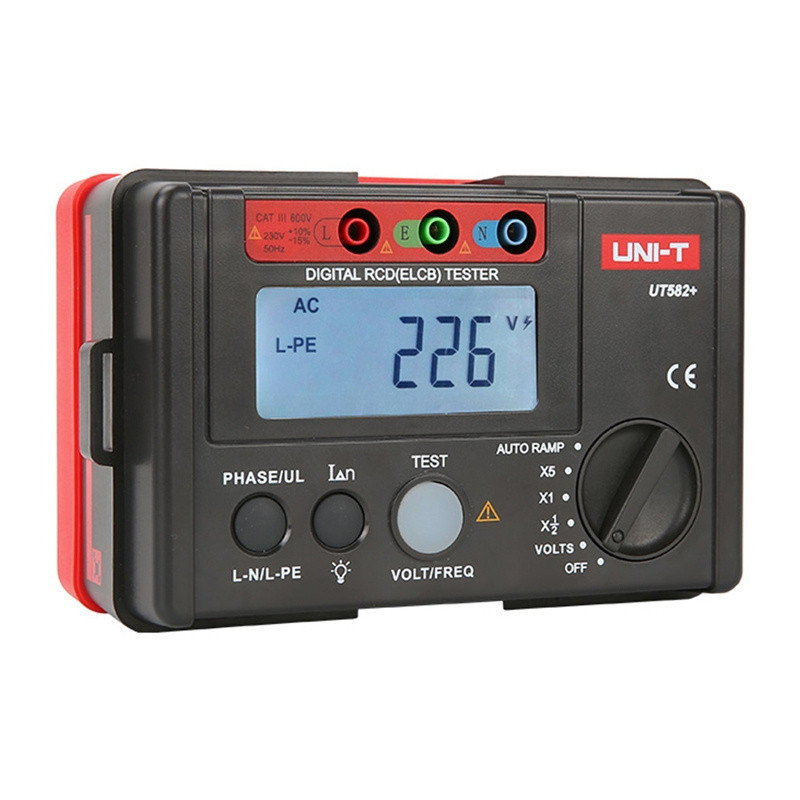

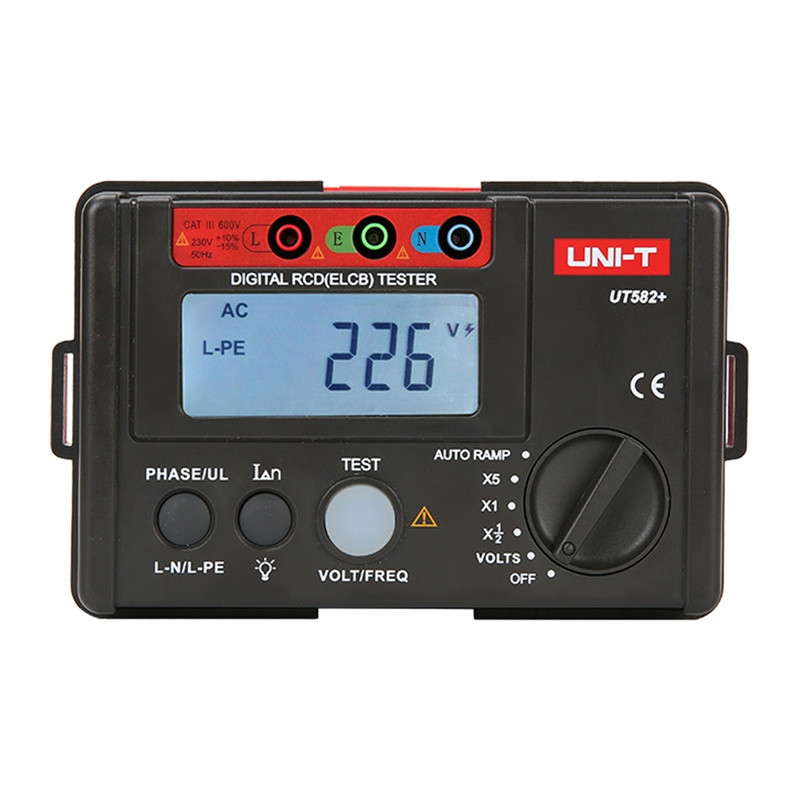

Uni-T RCD tester UT582+


The Uni-T UT582+ tester is a device designed to test the operation of residual current devices (RCDs) in single-phase installations. It allows you to verify whether the protective devices respond correctly, which is essential during electrical system inspections and maintenance work.



UNI-T digital RCD tester on a table, with connected leads. A power outlet and distribution panel in the background.


Accurate RCD testing


The UT582+ model allows for the measurement of trip time and trip current for various rated values, enabling the assessment of the proper operation of the protective devices. The AUTO RAMP function facilitates automatic verification of the trip threshold, and the device also offers voltage measurement up to 600V.



Hands holding the UNI-T RCD tester while measuring voltage on an electrical panel.


Features for convenience and safety


The device is equipped with a backlit display, a Data Hold function, and audible signals indicating errors and operating status. Fuse protection and connection indicators enhance safety, while automatic shutdown helps save energy.



UNI-T digital RCD tester measuring voltage in a control cabinet.


Included



  • RCD tester

  • Test leads (1 pair)

  • 6 AA batteries (LR6)

  • Carrying case

  • Wrist strap

  • User manual




Specifications





















Manufacturer Uni-T
Model UT582+
Product type RCD tester
Operating voltage range 195-253 V
Voltage measurement range 30-600 V ±(3% + 3)
Frequency range 45-65 Hz
Test currents 10 mA / 20 mA / 30 mA / 100 mA / 300 mA / 500 mA
Response time range 40-2000 ms
Response time accuracy ±(2% + 2)
Maximum display reading 999
Functions AUTO RAMP, Data Hold, LCD backlight, audible alarm, connection check, auto power off, low battery indicator
Power supply 6 × 1.5 V AA batteries (LR6)
Display dimensions 71 × 34 mm
Dimensions 160 × 100 × 71 mm
Weight 400 g
Certifications CE, UKCA


Gamintojas UNI-T
Gross weight 1060 g.
Net weight 400 g.
