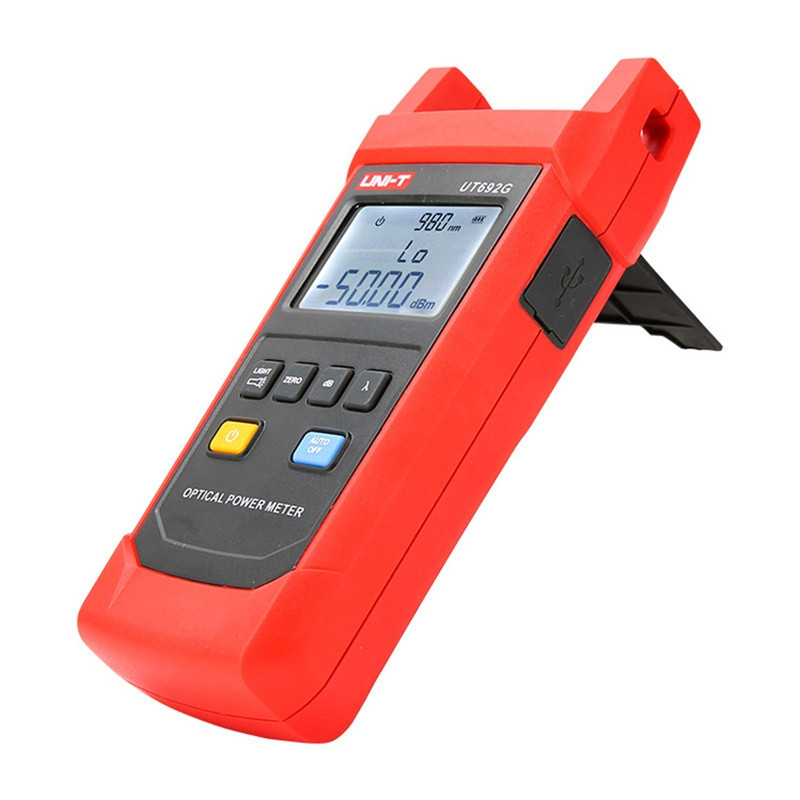

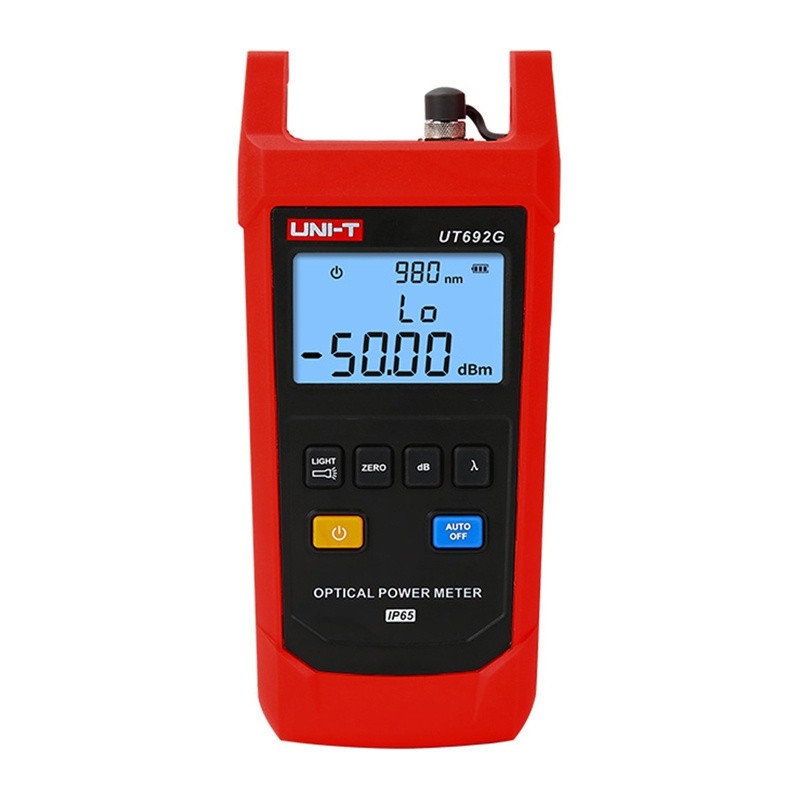

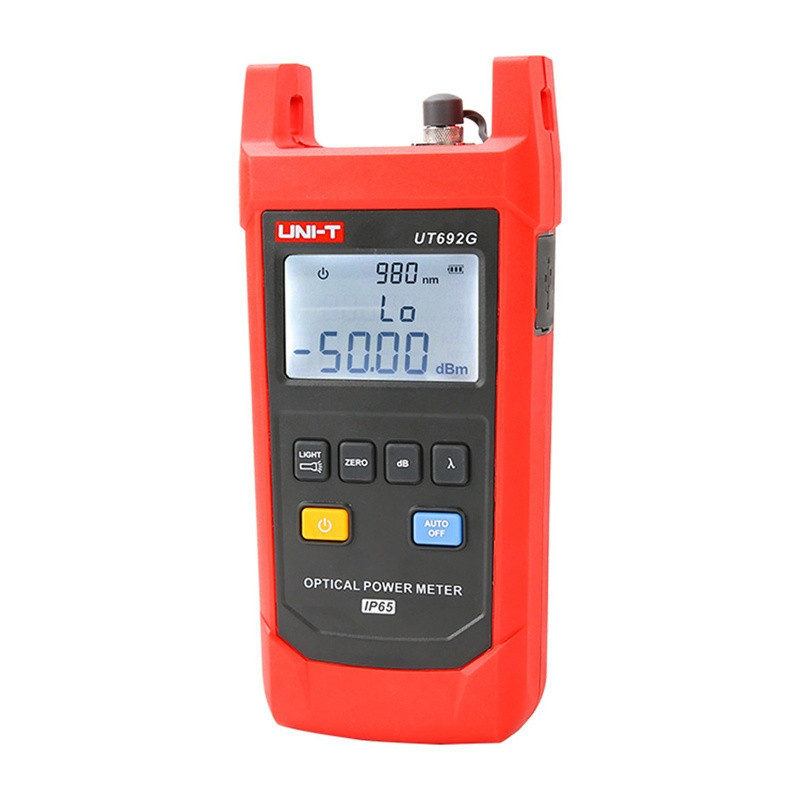

Optical Power Meter - UNI-T UT692G from -50 to +26 dBm 800-1700 nm InGaAs FC / SC / ST IP65
Product reference:
14-6935750569214
" Uni-T UT692G" - optical power meter designed to measure optical power and signal attenuation from -50 to +26 dBm in the 800-1700 nm range. It is equipped with an InGaAs sensor, a backlit LCD display, 60 readings memory, FC, SC and ST connectors and IP65 protection.
Optical Power Meter - UNI-T UT692G from -50 to +26 dBm 800-1700 nm InGaAs FC / SC / ST IP65
Product reference:
14-6935750569214
" Uni-T UT692G" - optical power meter designed to measure optical power and signal attenuation from -50 to +26 dBm in the 800-1700 nm range. It is equipped with an InGaAs sensor, a backlit LCD display, 60 readings memory, FC, SC and ST connectors and IP65 protection.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
UNI-T UT692G
" Uni-T UT692G" - optical power meter designed to measure optical power and signal loss from -50 to +26 dBm, at a wavelength of 800-1700 nm. It is equipped with an InGaAs sensor, a backlit LCD display, a memory of 60 measurements, FC/SC/ST connectors and IP65 protection.
- Optical power meter for testing signal strength and loss in fiber optic networks
- Wide measurement range from -50 to +26 dBm, supports wavelengths of 800-1700 nm
- InGaAs sensor with FC, SC and ST connector compatibility for accurate on-site measurements
- Backlit display, 60 record memory, built-in flashlight, IP65 protection and drop resistance from 2 m
Product information | |
|---|---|
| Product type | Optical power meter |
| Brand | Uni-T |
| Model | UT692G |
| Purpose | Optical power and signal loss measurement in fiber optic networks |
Technical specifications | |
| Calibrated wavelengths | 850 nm, 980 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 1650 nm |
| Measurement accuracy | ±5% |
| Linear resolution | 0.1% |
| Logarithmic resolution | 0.01dB |
| Sensor type | InGaAs |

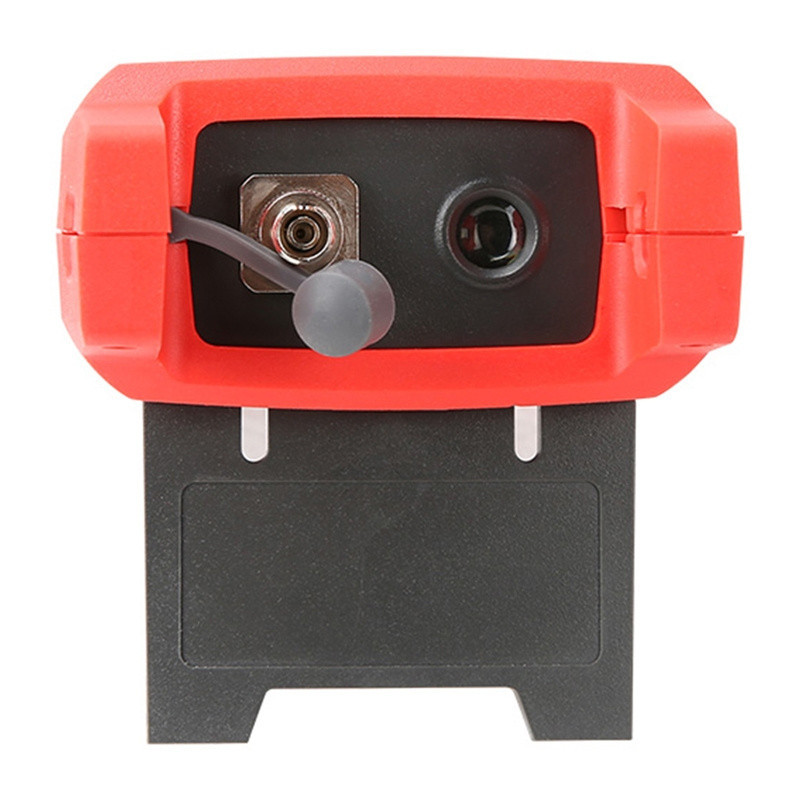

| Connector interface | FC, SC and ST with 2.5mm adapter |
| Screen | Backlit LCD display |
| Data memory | 60 data sets |
| User calibration | Supported |
| Additional features | Built-in flashlight and automatic shut-off |
Power supply and construction | |
| Power source | 3 × 1.5V AA batteries |
| Duration of operation | At least 60 hours |
| Protection class | IP65 |
| Drop resistance | From a height of up to 2 m |
| Dimensions | 189 × 87 × 45mm |
| Weight | 286 g |
| Certificates | CE, UKCA |
Included accessories | |
| Complete set |
|
Safety warning | |
| Safe use | Use the device only for measuring optical signals in compatible fiber optic systems. Do not look directly into fiber optic connectors or active optical sources, as invisible or visible laser radiation can damage the eyes. Keep the connector ports clean and follow the equipment manufacturer's safety instructions. |
| Height | 100mm |
| Length | 300mm |
| Weight | 400g |
| Width | 200mm |
