Multimeter - Habotest HT112B True RMS 6,000 Counts CAT III 600 V Black
Product reference:
14-5907489606677
True RMS digital multimeter for measuring AC and DC voltage, current, resistance, capacitance, frequency and duty cycle. 6000-count display, automatic measuring range selection, non-contact voltage (NCV) detection, diode and continuity test, backlight, flashlight and CAT III 600 V safety category ensure convenient and safe use.
Multimeter - Habotest HT112B True RMS 6,000 Counts CAT III 600 V Black
Product reference:
14-5907489606677
True RMS digital multimeter for measuring AC and DC voltage, current, resistance, capacitance, frequency and duty cycle. 6000-count display, automatic measuring range selection, non-contact voltage (NCV) detection, diode and continuity test, backlight, flashlight and CAT III 600 V safety category ensure convenient and safe use.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

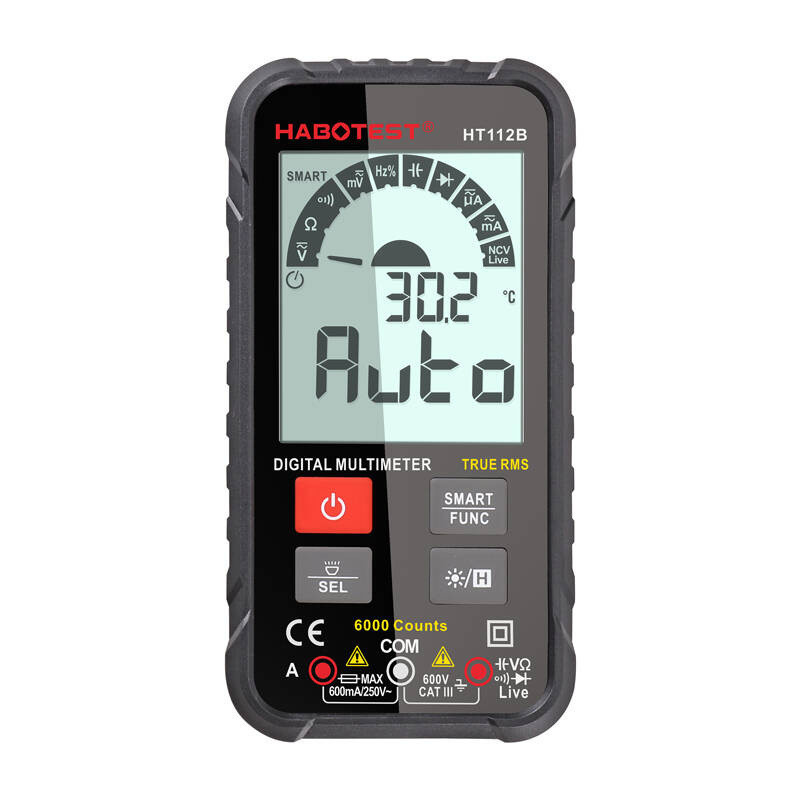

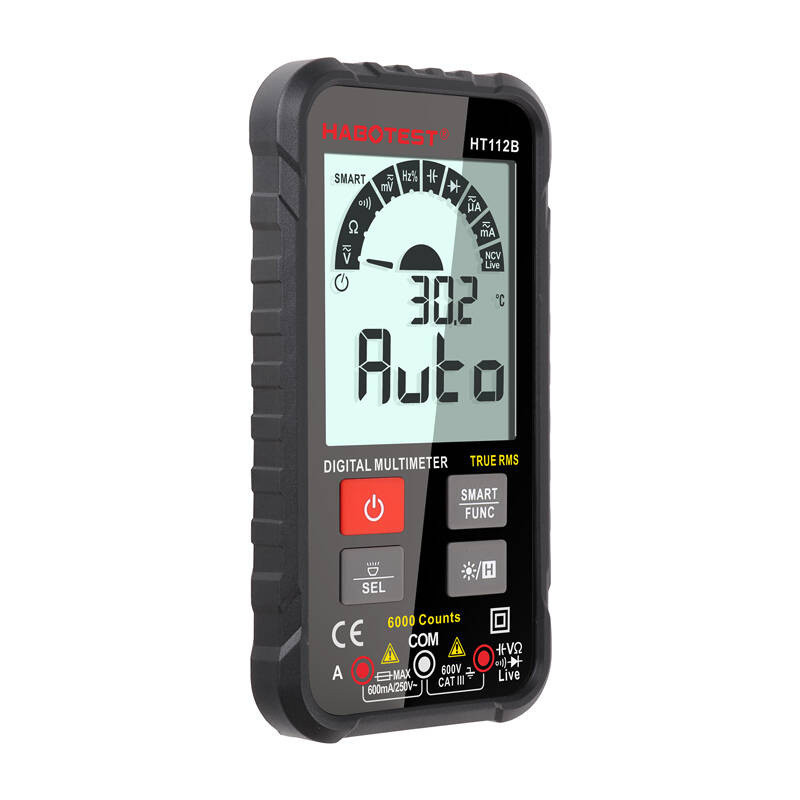

Habotest HT112B multimeter
Digital True RMS multimeter for measuring AC and DC voltage and current, resistance, capacitance, frequency and duty cycle. Equipped with a 6000-count display, automatic measuring range selection, NCV detection, diode and circuit continuity test functions, backlight, flashlight and CAT III 600 V safety class.
- Smart auto-ranging multimeter with a clear 2.88″ display and 6000-count resolution
- Measures AC and DC voltage and current, resistance, capacitance, frequency, duty cycle and True RMS values
- NCV detection, live wire testing, diode and circuit integrity testing, and data logging
- Compact 1.9 cm thick body with silicone buttons, screen backlight, LED flashlight and protective case
Product information | |
|---|---|
| Product type | Digital True RMS Multimeter |
| Brand | Habotest |
| Model | HT112B |
| Color | Black |
| Screen | 2.88-inch display with 6000-dot resolution |
| Thickness | 1.9cm |
Measurement specifications | |
| Constant voltage | 60 mV / 600 mV / 6 V / 60 V / 600 V; accuracy ±(0.5 % + 3) |
| Alternating voltage | 60 mV / 600 mV / 6 V / 60 V / 600 V; accuracy ±(1.0 % + 3) |
| Direct current | 6000 µA / 60 mA / 600 mA; accuracy ±(1.2 % + 5) |
| Alternating current | 6000 µA / 60 mA / 600 mA; accuracy ±(1.5% + 5) |
| Resistance | 600 Ω / 6 kΩ / 60 kΩ / 600 kΩ / 6 MΩ / 60 MΩ; accuracy ±(1.0% + 5) |
| Capacity | 6 nF / 60 nF / 600 nF / 6 µF / 60 µF / 600 µF / 6 mF / 60 mF; accuracy ±(4.0% + 5) |
| Frequency | 10 Hz to 10 MHz; accuracy ±(1.0% + 5) |
| Duty cycle | 1-99%; accuracy ±(3.0% + 5) |
Features | |
| Range selection | Intelligent automatic range selection |
| Voltage detection | Non-contact voltage detection (NCV) and live wire testing |
| Verification functions | Diode and circuit integrity testing and True RMS measurement |
| Additional features | Data logging, automatic ACV detection, probe connection to current input recognition and blown fuse indicator |
| Indicators | Low battery indicator and automatic shut-off |
| Lighting | Screen backlight and built-in LED flashlight |
Power and safety | |
| Power source | 2 × CR2032 3V batteries |
| Safety class | CAT III 600V |
| Applicable standards | EN 61010-2-030, EN 61010-2-033 and EN 61326-1 |
| Included accessories | Protective case and batteries |
| Safety warning | Use only for electrical measurements within the specified ranges and with a safety rating of CAT III 600 V. Follow the operating instructions, use the correct test leads, and disconnect the power supply before changing connectors or batteries. Do not use the multimeter if the housing, test leads, or insulation is damaged. |
| Height | 50mm |
| Length | 250mm |
| Weight | 300g |
| Width | 120mm |
