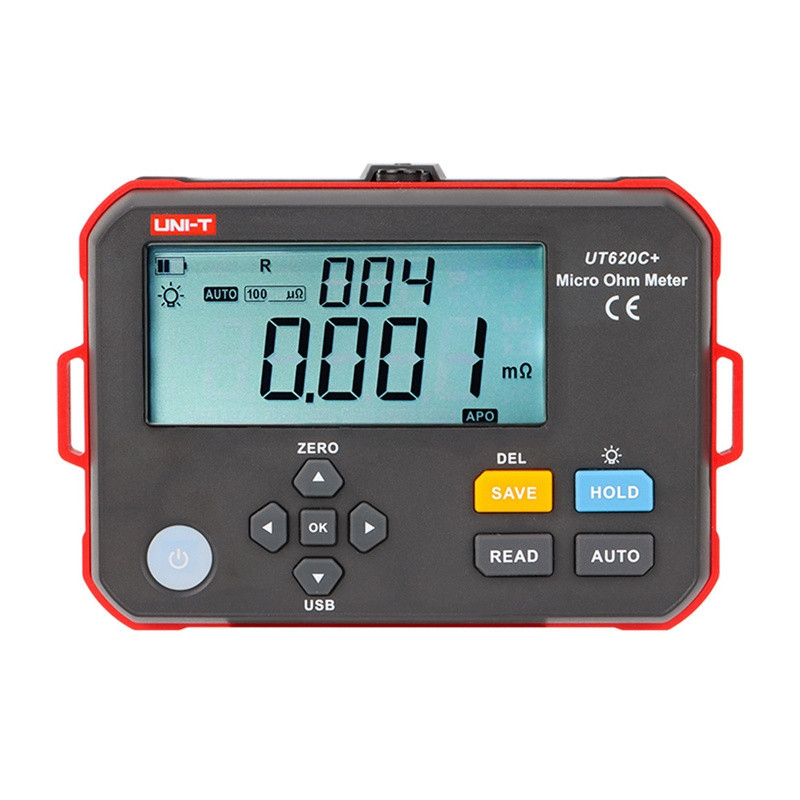

Meter - Uni-T UT620C+ Digital Micro-Ohmmeter 0.001 mΩ to 300 kΩ, 1 μΩ Resolution, Black
Product reference:
14-6935750562017
The Uni-T UT620C+ digital microohmmeter measures low resistances from 0.001 mΩ to 300 kΩ with a resolution of up to 1 μΩ and an accuracy of ±0.1% FS. It features a four-wire measurement method, a backlit LCD display, and the ability to store up to 500 data sets.
Meter - Uni-T UT620C+ Digital Micro-Ohmmeter 0.001 mΩ to 300 kΩ, 1 μΩ Resolution, Black
Product reference:
14-6935750562017
The Uni-T UT620C+ digital microohmmeter measures low resistances from 0.001 mΩ to 300 kΩ with a resolution of up to 1 μΩ and an accuracy of ±0.1% FS. It features a four-wire measurement method, a backlit LCD display, and the ability to store up to 500 data sets.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Uni-T UT620C+ Digital Micro-Ohmmeter
Uni-T UT620C+ Digital Micro-Ohmmeter measures low resistances from 0.001 mΩ to 300 kΩ with a resolution of up to 1 μΩ and an accuracy of ±0.1% FS . It uses a four-wire measurement methodology, a backlit LCD display, and can store up to 500 data sets.
- Measures low resistances from 0.001 mΩ to 300 kΩ with high accuracy of ±0.1% FS.
- Uses the four-wire method for stable and repeatable measurements, minimizing the effects of lead resistance.
- Stores up to 500 measurement results for easy documentation and analysis.
- Backlit LCD display and compact, portable design for convenient use in a variety of environments.
Features | |
|---|---|
| Product Type | Digital Micro-Ohmmeter |
| Product Brand | Uni-T |
| Model | UT620C+ |
Specifications | |
| Resistance Measurement Range | 0.001 mΩ - 300.0 kΩ |
| Resolution | up to 1 μΩ |
| Reverse Circuit Voltage | ≤ 4.2V |
| Measurement Speed | about 2 measurements/s |
| Memory | up to 500 data sets |
| Screen | illuminated segment LCD |
| Interface | USB Type-C |
| Entrance Security | up to 36 V AC/DC |
| Protection Class | IP54 |
| Power Source | 3.7 V / 3200 mAh Li-ion battery |
| Power | ≤ 8W |
| Dimensions | 161 × 117 × 68mm |
| Weight | 480g (with battery) |
Safety Warning | |
| Use the product only for its intended purpose to ensure safety and accuracy in measurements. | |
| Height | 100mm |
| Length | 300mm |
| Weight | 600g |
| Width | 200mm |
