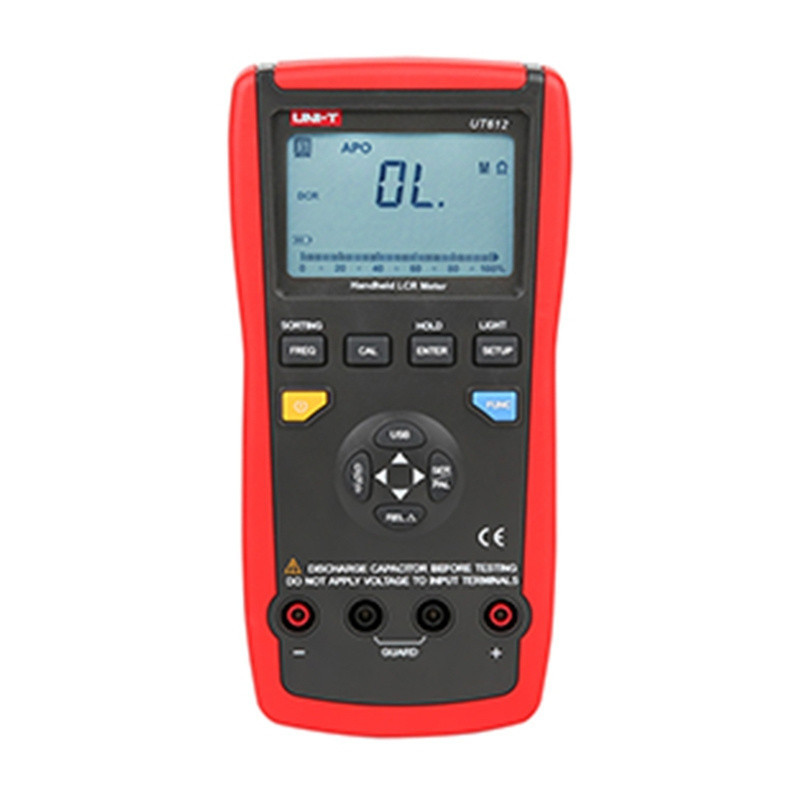

Meter - Uni-T UT612 LCR Meter, Inductance, Capacitance, Resistance, USB Interface, Black
Product reference:
14-6935750561201
Uni-T UT612 is an LCR meter that measures inductance, capacitance and resistance over a wide range. It has a USB interface for data storage and supports multiple test frequencies, ensuring accurate component analysis.
Meter - Uni-T UT612 LCR Meter, Inductance, Capacitance, Resistance, USB Interface, Black
Product reference:
14-6935750561201
Uni-T UT612 is an LCR meter that measures inductance, capacitance and resistance over a wide range. It has a USB interface for data storage and supports multiple test frequencies, ensuring accurate component analysis.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
Uni-T LCR Meter UT612
Uni-T UT612 is an LCR meter that measures inductance, capacitance, and resistance over a wide range of values. It has a USB interface for data storage and supports multiple test frequencies for accurate component analysis.
- Accurate LCR measurements for inductance, capacitance and resistance across a wide range of components.
- Automatic component recognition and a wide range of measurement functions, including quality factor and phase angle.
- Large backlit LCD display with data hold and relative mode functions for easy analysis of results.
- USB connection for data archiving, allowing storage of up to 60,000 measurement results.
Features | |
|---|---|
| Product Type | LCR Meter |
| Product Brand | Uni-T |
| Model | UT612 |
Specifications | |
| Inductance Range | 20µH ~ 2000H (±0.5% + 5) |
| Capacity Range | 200pF ~ 20mF (±0.5% + 5) |
| Resistance Range | 20Ω ~ 200MΩ (±0.3% + 5) |
| Supported Parameters | L, C, R, DCR, Q, D, θ, ESR |
| Tests Frequencies | 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz |
| Tests Voltage | 0.6 Vrms |
| Screen | LCD (40 × 63 mm) |
| Digits | 20,000 |
| D/Q Digits | 2,000 |
| D/Q Resolution | 0.001 |
| Power Source | 9V battery (6F22) or USB power supply |
| Dimensions | 96 × 193 × 47mm |
| Weight | 374 g |
Included Accessories | |
| Include |
|
Safety Warning | |
| Use the product as intended to ensure safety and accuracy in measurements. | |
| Height | 100mm |
| Length | 300mm |
| Weight | 500g |
| Width | 200mm |
