Meter - Uni-T UT533 Insulation Resistance Meter 2GΩ, 1000V, CAT III 1000V, Black
Product reference: 14-6935750553305

Uni-T UT533 insulation resistance tester measures insulation resistance up to 2GΩ with test voltages from 50V to 1000V, as well as AC/DC voltage, current, resistance, capacitance, frequency and temperature. The device has a large backlit display, dual display function and meets CAT III 1000V and CAT IV 600V safety standards.

Testavimo Įranga - Uni-T UT533 Izoliacijos Atsparumo Matuoklis 2GΩ, 1000V, CAT III 1000V, Juoda

Meter - Uni-T UT533 Insulation Resistance Meter 2GΩ, 1000V, CAT III 1000V, Black

Product reference: 14-6935750553305

Uni-T UT533 insulation resistance tester measures insulation resistance up to 2GΩ with test voltages from 50V to 1000V, as well as AC/DC voltage, current, resistance, capacitance, frequency and temperature. The device has a large backlit display, dual display function and meets CAT III 1000V and CAT IV 600V safety standards.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
233,00 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

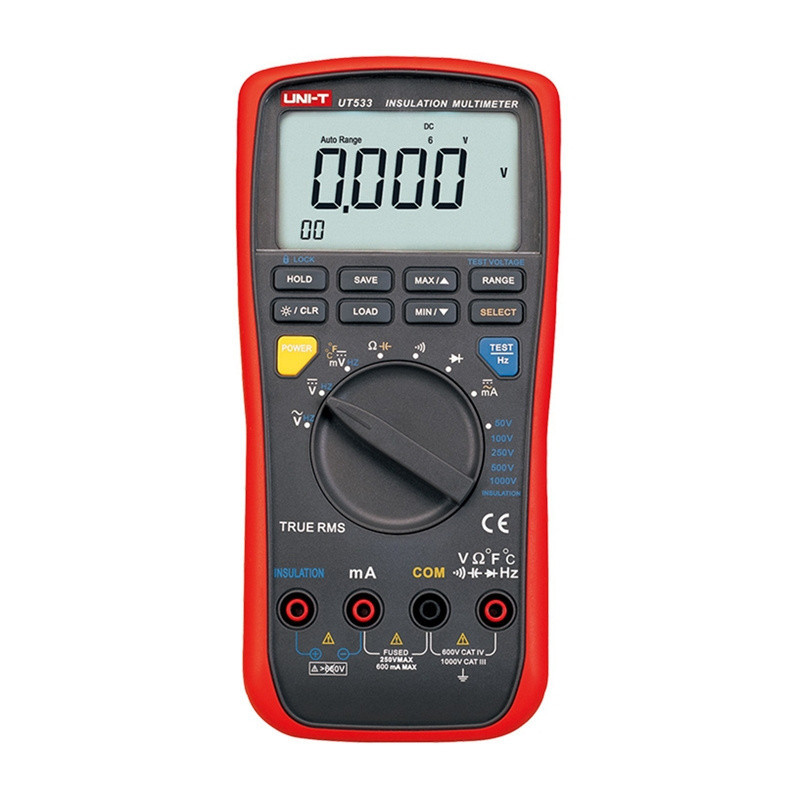

Uni-T UT533 Insulation Resistance Meter


The Uni-T UT533 insulation resistance meter measures insulation resistance up to 2GΩ with test voltages from 50V to 1000V, as well as AC/DC voltage, current, resistance, capacitance, frequency and temperature. It has a large illuminated display, dual display function and meets the CAT III 1000V and CAT IV 600V safety standards.


  • Universal 2-in-1 device for measuring insulation resistance and standard electrical parameters such as voltage, current and temperature.
  • Insulation resistance measurement up to 2GΩ with adjustable test voltages from 50V to 1000V for effective diagnostics.
  • Large backlit display with dual display function for easy visibility and simultaneous monitoring of parameters.
  • Durable construction that meets CAT III 1000V and CAT IV 600V safety standards, ensuring reliable use in challenging environments.

Features

Product Type Insulation Resistance Meter
Product Brand Uni-T
Model UT533

Specifications

Insulation Resistance Meter 0.1 MΩ - 2 GΩ (±5%+5)
Tests Voltage 50V - 1000V
AC Voltage Meter 6V - 1000V (±2%+3)
DC Voltage Meter 6mV - 1000V (±0.3%+4)
AC Current Meter 60mA - 600mA (±1.5%+2)
DC Current Meter 60mA - 600mA (±1.0%+2)
Resistance Meter 600Ω - 40MΩ (±1.5%+3)
Capacity Meter 10nF - 100µF (±3%+5)
Power supply 6 × 1.5V LR6 battery
Dimensions 96.7 × 202.8 × 46 mm
Weight 505 g

Safety Warning

Use the product only for its intended purpose to ensure safety and reliability.

Height100mm
Length250mm
Weight700g
Width150mm
