Meter - Uni-T UT512 High Voltage Insulation Resistance Meter 100 GΩ, 500 / 1000 / 2500 V, USB Black
Product reference:
14-6935750551202
Uni-T UT512 is a high-voltage insulation resistance tester that measures insulation resistance up to 100 GΩ with test voltages of 500/1000/2500 V. It features a large display, memory for 18 data sets, and a USB connection for data analysis.
Meter - Uni-T UT512 High Voltage Insulation Resistance Meter 100 GΩ, 500 / 1000 / 2500 V, USB Black
Product reference:
14-6935750551202
Uni-T UT512 is a high-voltage insulation resistance tester that measures insulation resistance up to 100 GΩ with test voltages of 500/1000/2500 V. It features a large display, memory for 18 data sets, and a USB connection for data analysis.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

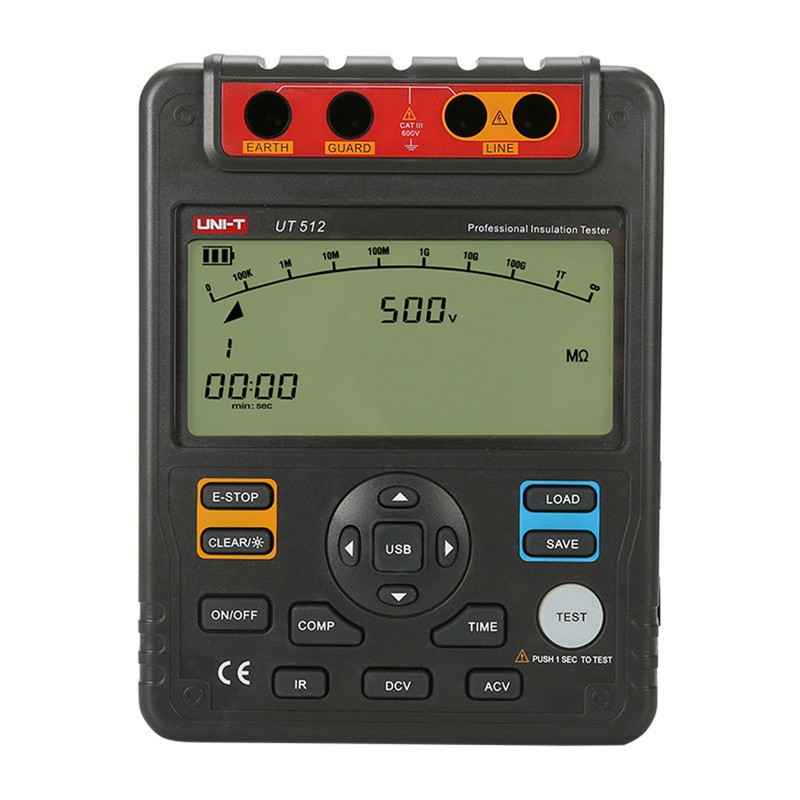

Uni-T UT512 High Voltage Insulation Resistance Meter
Uni-T UT512 is a high-voltage insulation resistance meter that measures insulation resistance up to 100 GΩ with test voltages of 500/1000/2500 V. It has a large display, memory for 18 data sets, and a USB connection for data analysis.
- Advanced insulation resistance measurement with voltages up to 2500 V and measurements up to 100 GΩ.
- Convenient user interface with large display and analog bar graph for quick results evaluation.
- Built-in memory allows you to store up to 18 data sets for easy data transfer and analysis via USB.
- Enhanced safety features including automatic current discharge and high voltage signaling for safe operation.
Features | |
|---|---|
| Product Type | High Voltage Insulation Resistance Meter |
| Product Brand | Uni-T |
| Model | UT512 |
Specifications | |
| Tests Voltages | 500V, 1000V, 2500V |
| Insulation Resistance Measurement Range | up to 100 GΩ |
| Measurement Accuracy | up to ±(3%+5) (depending on range) |
| Data Memory | 18 sets |
| Screen | 9999 with analog bar graph (30 segments) |
| Features | Continuous measurement mode, automatic power off, LCD backlight, automatic current discharge |
| Power Source | 8 × 1.5V battery (LR14) |
| Dimensions | 202 × 155 × 94mm |
| Weight | about 1.8 kg |
| Certificates of Conformity | CE, UKCA |
Safety Warning | |
| Use this product only for its intended purpose to ensure safety and reliability. | |
| Height | 150mm |
| Length | 300mm |
| Weight | 2400g |
| Width | 200mm |
