Insulation Resistance Meter - UNI-T UT511 High Voltage
Product reference: 14-6935750551103

High voltage insulation resistance meter with selectable test voltage of 100 V, 250 V, 500 V or 1000 V and measuring range up to 10 GΩ. The device features PI and DAR diagnostics, LCD display with bar graph, 18 results memory, measurement for a set time and automatic discharge.

  • −3%

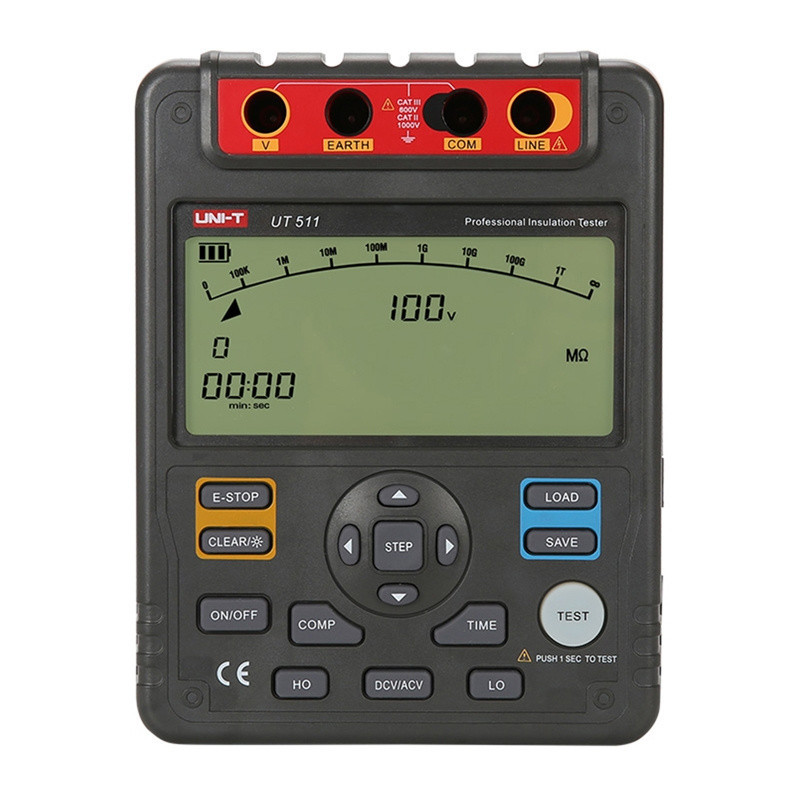

Bandomoji Įranga - Uni-T UT511 Aukštos Įtampos Izoliacijos Atsparumo Testeris 1000V 10GΩ Juodas

Insulation Resistance Meter - UNI-T UT511 High Voltage

Product reference: 14-6935750551103

High voltage insulation resistance meter with selectable test voltage of 100 V, 250 V, 500 V or 1000 V and measuring range up to 10 GΩ. The device features PI and DAR diagnostics, LCD display with bar graph, 18 results memory, measurement for a set time and automatic discharge.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
140,23 €
144,57 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

UNI-T UT511 insulation resistance meter


High voltage insulation resistance meter with selectable test voltages of 100 V, 250 V, 500 V and 1000 V and measurements up to 10 GΩ. The device features PI and DAR diagnostic functions, LCD display with bar graph, 18 result memory, timed measurement and automatic discharge.


  • Insulation resistance measurement with a choice of 100 V, 250 V, 500 V or 1,000 V test voltage
  • Insulation resistance measurement up to 10 GΩ in devices, cables, motors and electrical equipment
  • PI and DAR functions help to comprehensively assess the insulation status over time
  • 4-digit, 9,999-count backlit display with bar graph, automatic discharge, high voltage warning and 18-reading memory

Product information

Product type Insulation resistance meter
Brand UNI-T
Model UT511
Purpose Insulation resistance measurement of electrical devices, cables, motors and electrical equipment

Technical specifications

Accuracy ±(3% + 5)
Screen 9,999-count backlit LCD with 30-segment bar graph
Measurement modes Continuous and timed measurement for up to approximately 30 minutes
High voltage indicator High voltage warning signal
Unloading function Automatic discharge after measurement
Additional indicators Overrange and low battery indicators
Power supply 8 × 1.5V LR14 batteries
Dimensions 202 × 155 × 94mm
Weight Approximately 1.2 kg

Included accessories

The set includes:
  • UNI-T UT511 meter
  • Red two-pin test lead with crocodile clip
  • Two single-contact test leads with crocodile clips
  • AC adapter
  • Battery pack

Safety warning

Warning The product may only be used by properly trained persons. Use the meter only to measure insulation resistance within the specified test voltage range. Disconnect and isolate the equipment under test before connecting the leads. Do not touch the test terminals or the circuit under test during measurement. Make sure that the equipment under test is automatically discharged before touching it.

Height150mm
Length350mm
Weight1600g
Width250mm
