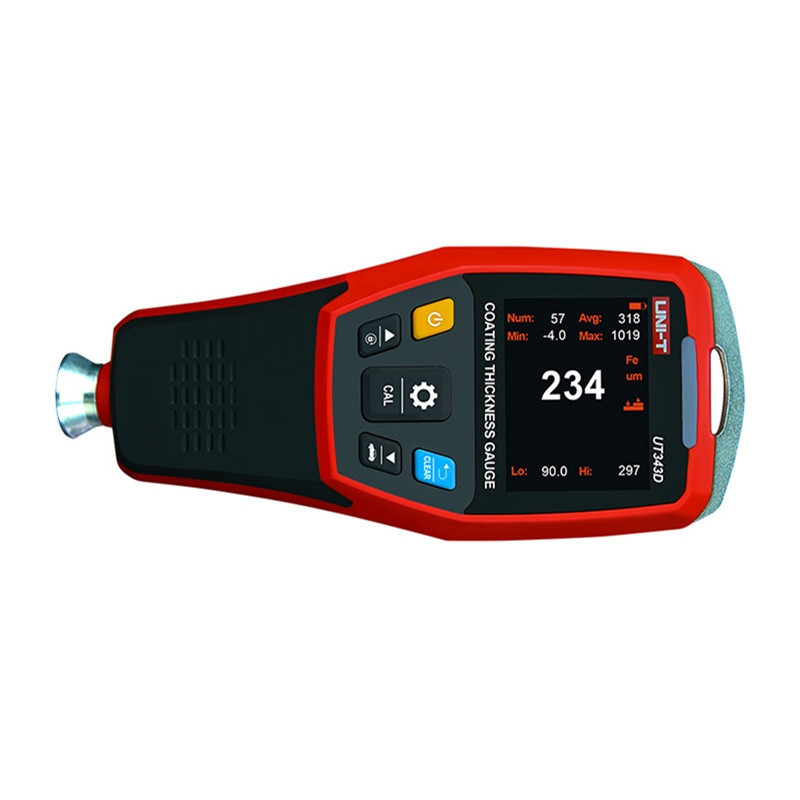

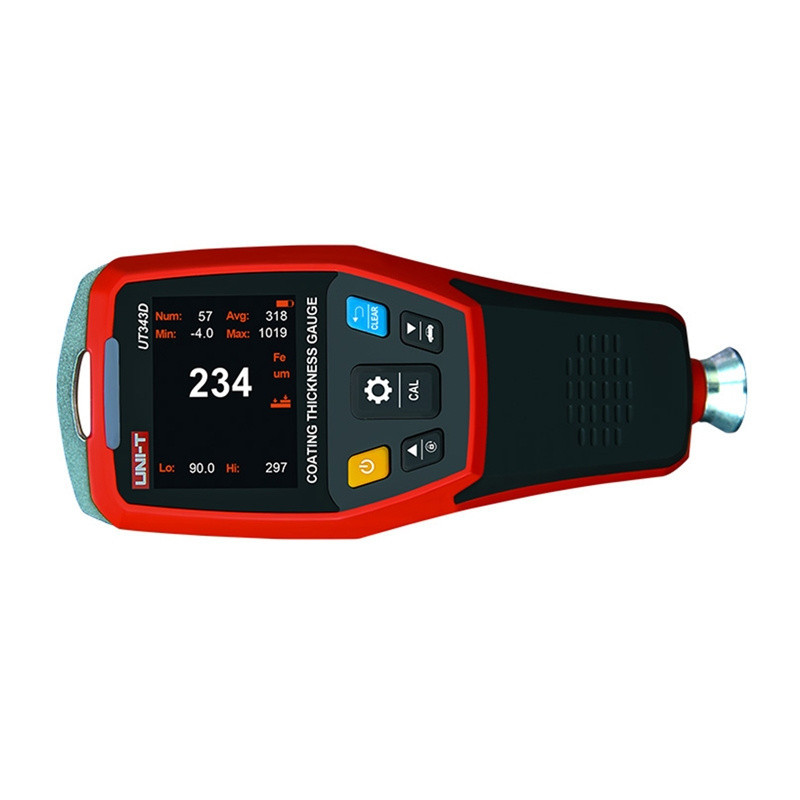

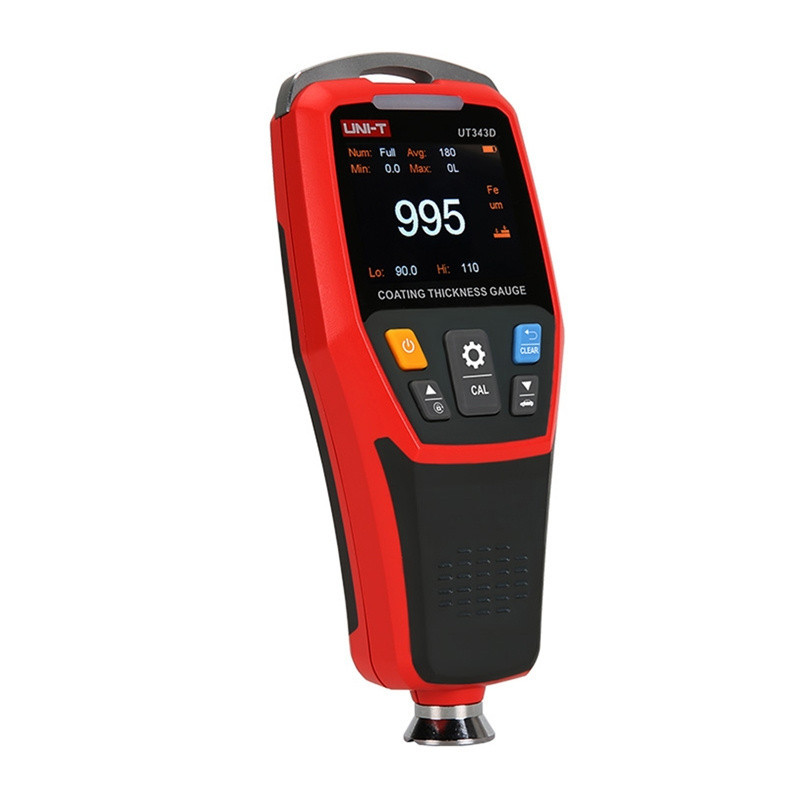

UNI-T UT343D Paint Thickness Gauge
UNI-T UT343D accurately measures the thickness of paints and coatings on metal surfaces, with a measuring range of 0 to 1,250 µm and an accuracy of ±(3%H + 1) µm. It has a color TFT display, a USB port for data transfer, and a Quick Test mode with audible and LED warnings for thickness tolerance.
- Accurate measurement of paint and coating thickness on metal surfaces up to 1,250 µm.
- Quick Test Mode with audible and LED alerts for effective quality control.
- Reliable 2-inch color display with adjustable brightness and auto-rotation for comfortable reading.
- Data storage for up to 500 measurements and USB connection for more detailed analysis on a computer.
Features | |
|---|---|
| Product Type | Paint Thickness Gauge |
| Product Brand | UNI-T |
| Model | UT343D |
Specifications | |
| Measuring Range | 0-1250 µm |
| Accuracy | ±(3%H + 1) µm |
| Resolution | 0.1 µm (0-99.9 µm); 1 µm (100-1250 µm) |
| Measurement Method | One / Permanent |
| Measurement Mode | Max / Min / Average |
| Excipients | Ferromagnetic and non-ferromagnetic metals |
| Screen | TFT LCD 2" (320 x 240 pixels) |
| Data Memory | 500 groups |
| USB Connector | Yes |
| Power Source | 2x 1.5V AA batteries |
| Dimensions | 153.5 × 64.5 × 41 mm |
| Weight | 175 g |
Additional Information | |
| Quick Test Mode | Yes |
| Audible and LED Signal | Yes (3 colors) |
| Automatic Shutdown | Yes |
| Low Battery Indicator | Yes |
| Height | 100mm |
| Length | 250mm |
| Weight | 250 g |
| Width | 200mm |
