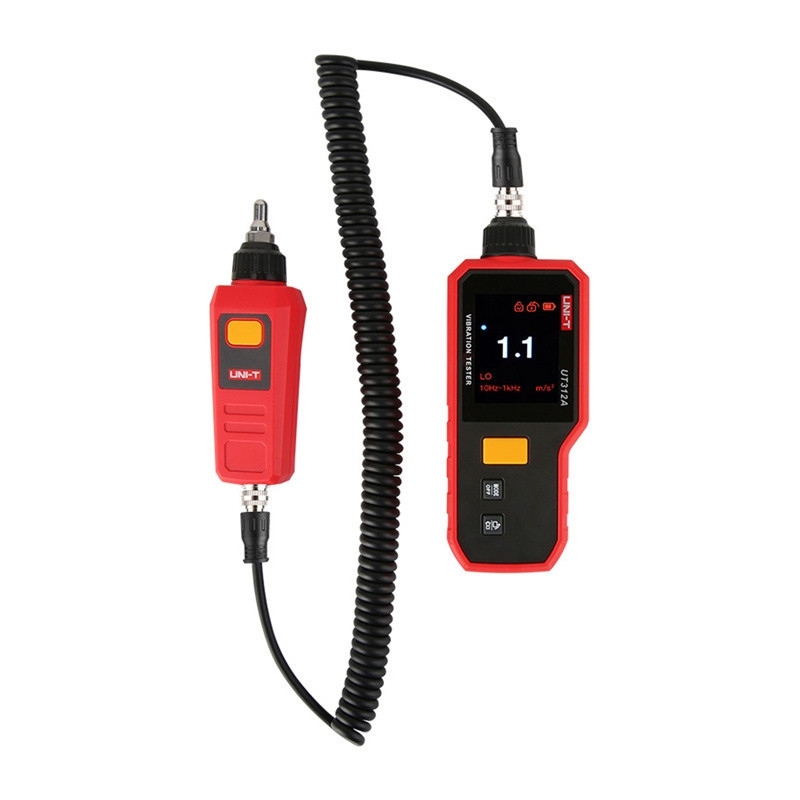

Meter - Uni-T UT312A Vibration Meter, Acceleration, Velocity, Deflection, Black
Product reference:
14-6935750531228
The Uni-T UT312A vibration tester measures vibration acceleration, velocity and displacement in a wide range of frequencies. It features a 2.4-inch TFT display, a built-in flashlight and a rechargeable battery that lasts for approximately 12 hours.
Meter - Uni-T UT312A Vibration Meter, Acceleration, Velocity, Deflection, Black
Product reference:
14-6935750531228
The Uni-T UT312A vibration tester measures vibration acceleration, velocity and displacement in a wide range of frequencies. It features a 2.4-inch TFT display, a built-in flashlight and a rechargeable battery that lasts for approximately 12 hours.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
8 - 9
business days
Uni-T UT312A Vibration Meter
The Uni-T UT312A vibration meter measures vibration acceleration, velocity and displacement in different frequency ranges. It has a 2.4" TFT display, an integrated flashlight and a rechargeable battery that lasts for approximately 12 hours.
- Measures vibration acceleration, velocity and displacement for effective machine condition monitoring.
- Compact design with 2.4" TFT display, auto-rotation function and integrated flashlight for convenient outdoor use.
- There are separate frequency modes for precise analysis of low and high frequency vibrations.
- Long-lasting battery, approximately 12 hours of playtime, and USB-C charging for convenience.
Features | |
|---|---|
| Product Type | Vibration Meter |
| Product Brand | Uni-T |
| Model | UT312A |
Specifications | |
| Accelerometer | 0.1-199.9 m/s² |
| Speedometer | 0.1-199.9 mm/s |
| Displacement Meter | 0.001-1.999mm |
| Acceleration Frequency Range | LO: 10 Hz-1 kHz / HI: 1 kHz-15 kHz |
| Speed Frequency Range | 10 Hz-1,5 kHz |
| Offset Frequency Range | 10 Hz-1 kHz |
| Resolution | 0.1 m/s² / 0.1 mm/s / 0.001 mm |
| Acceleration and Velocity Accuracy | ±(5%+2 digits) |
| Offset Accuracy | ±(10%+2 digits) |
| Screen | 2.4" TFT LCD, auto-rotation, backlight |
| Power Source | 1350 mAh Li-Ion battery, 3.7 V |
| Loading | USB-C, DC 5V |
| Operating Time | Approximately 12 hours. |
| Operating Conditions | 0°C-40°C, ≤80% RH (non-condensing) |
| Dimensions | 168 × 28 × 64mm |
| Weight | 364 g (with short probe) |
Included Accessories | |
| |
| Height | 100mm |
| Length | 250mm |
| Weight | 500g |
| Width | 80mm |
