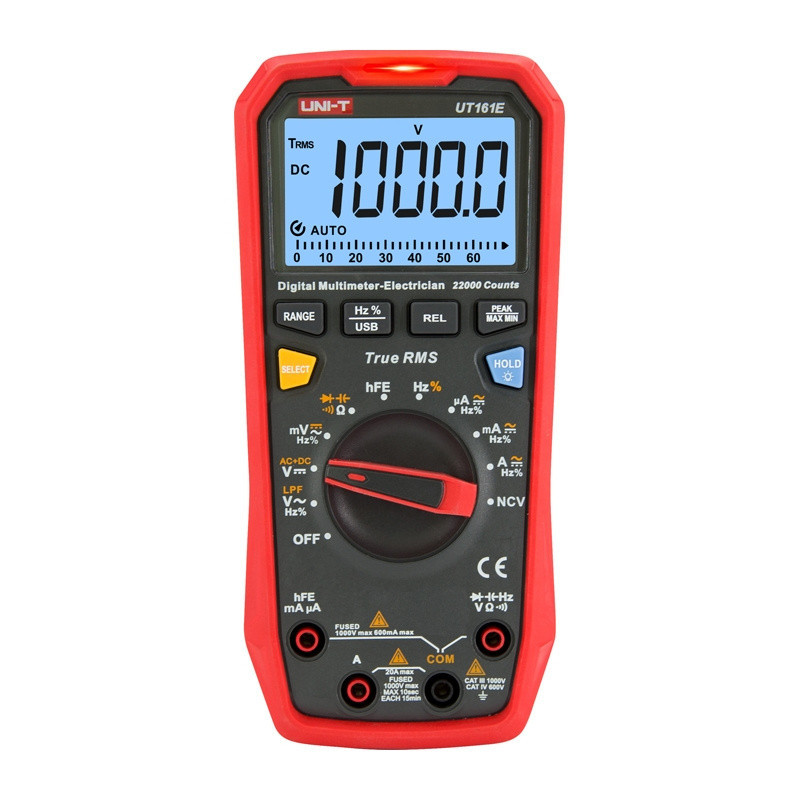

Meter - Uni-T UT161E True RMS Digital Multimeter 1000V 20A USB Black
Product reference: 14-6935750516171

The Uni-T UT161E is a true RMS digital multimeter capable of measuring voltages up to 1000V and currents up to 20A. It features advanced features such as a low-pass filter, data hold, and USB connectivity for data analysis.

Matuoklis - Uni-T UT161E True RMS Skaitmeninis Multimetras 1000V 20A USB Juodas

Meter - Uni-T UT161E True RMS Digital Multimeter 1000V 20A USB Black

Product reference: 14-6935750516171

The Uni-T UT161E is a true RMS digital multimeter capable of measuring voltages up to 1000V and currents up to 20A. It features advanced features such as a low-pass filter, data hold, and USB connectivity for data analysis.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
138,38 €
Last product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

Uni-T UT161E Digital Multimeter


Uni-T UT161E is a True RMS digital multimeter that can measure voltages up to 1000V and currents up to 20A. It has advanced features such as a low-pass filter, data hold, and USB connectivity for data analysis.


  • High accuracy with a measurement range of up to 1000V for voltage and 20A for current, suitable for professional applications.
  • Advanced features including True RMS, low-pass filter, and real-time data analysis functions such as Max/Min and Peak Hold.
  • High-resolution display with 22,000 digits and wide bar graph for easy reading.
  • USB connection for easy data transfer and analysis on a computer.

Features

Product Type Digital Multimeter
Product Brand Uni-T
Model UT161E

Specifications

DC Voltage Measurement 1000V ±(0.05%+5)
AC Voltage Measurement 1000V ±(0.8%+10)
DC Current Measurement 20A ±(0.5%+10)
AC Current Measurement 20A ±(0.8%+10)
Resistance Measurement 220MΩ ±(0.5%+10)
Capacitor Measurement 220mF ±(3.0%+5)
Frequency Measurement 220MHz ±(0.01%+5)
Maximum View 22000 digits
Dimensions 190 × 90 × 50mm
Weight 350 g
Power supply 4x 1.5V AAA batteries
Security Class CAT III 1000V / CAT IV 600V
Certificates CE, UKCA, cETLus

Height100mm
Length300mm
Weight500g
Width200mm
