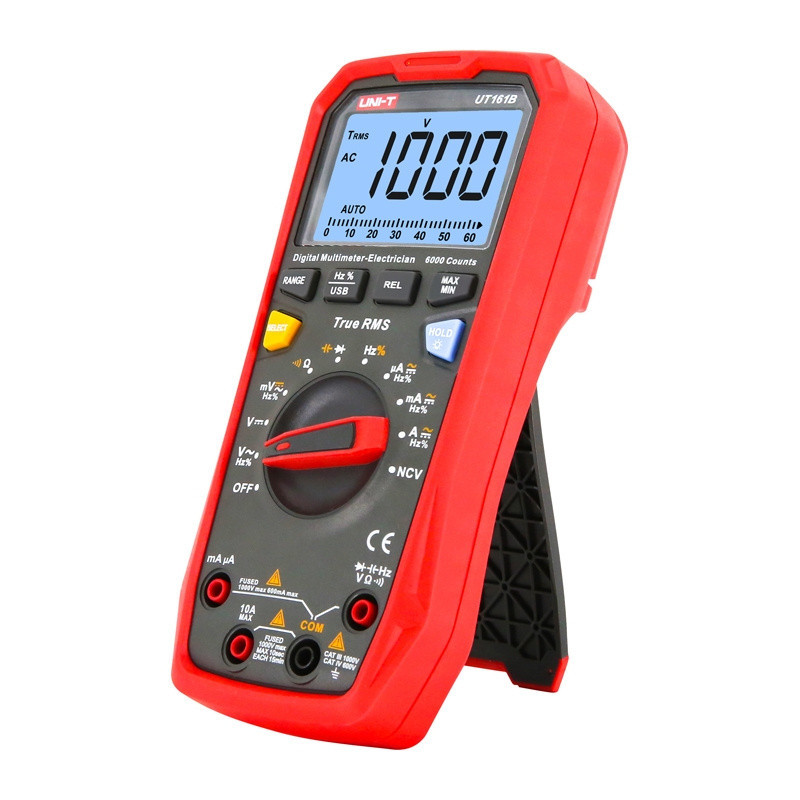

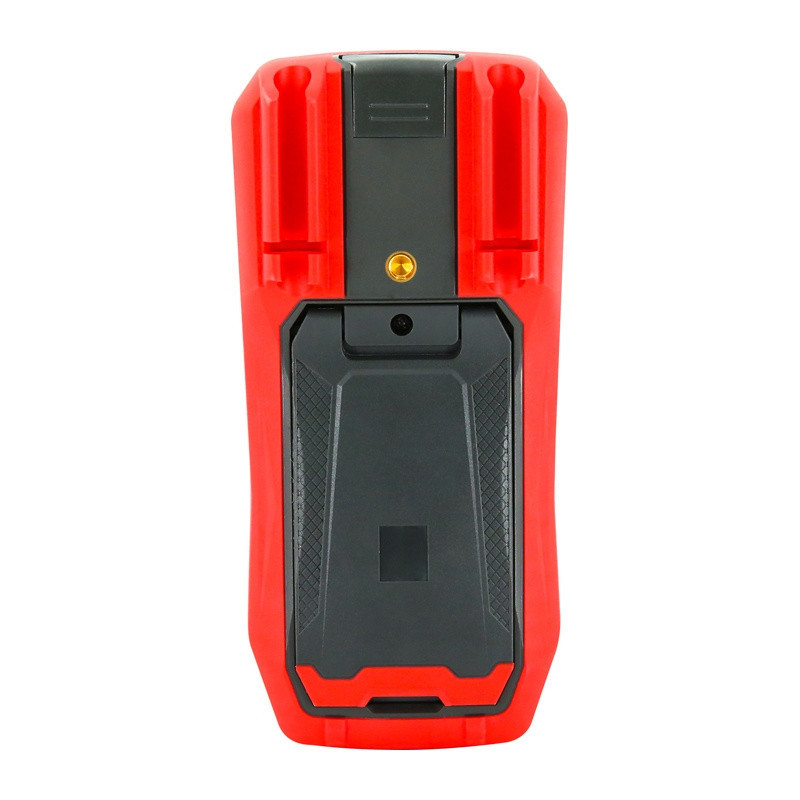

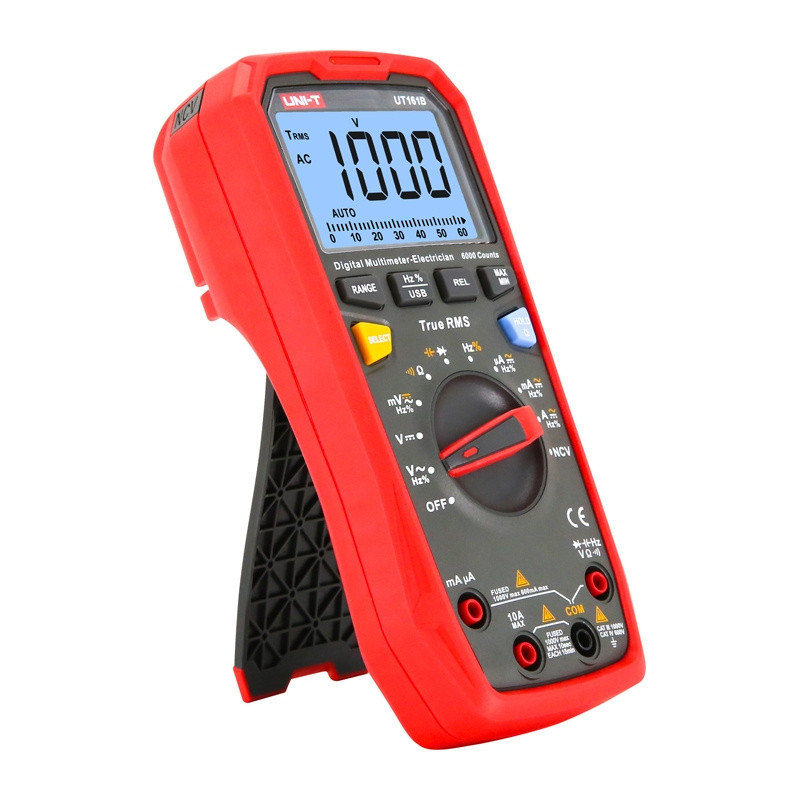

Meter - Uni-T UT161B True RMS Digital Multimeter 1000V 10A Black
Product reference: 14-6935750516157

The Uni-T UT161B is a true RMS digital multimeter capable of measuring AC/DC voltage up to 1000V and current up to 10A. It features features such as non-contact voltage detection, resistance and capacitance measurements, as well as USB connectivity for data transfer.

  • −3%
Matuoklis - Uni-T UT161B True RMS Skaitmeninis Multimetras 1000V 10A Juodas
Matuoklis - Uni-T UT161B True RMS Skaitmeninis Multimetras 1000V 10A Juodas
Matuoklis - Uni-T UT161B True RMS Skaitmeninis Multimetras 1000V 10A Juodas
Matuoklis - Uni-T UT161B True RMS Skaitmeninis Multimetras 1000V 10A Juodas
Matuoklis - Uni-T UT161B True RMS Skaitmeninis Multimetras 1000V 10A Juodas

Meter - Uni-T UT161B True RMS Digital Multimeter 1000V 10A Black

Product reference: 14-6935750516157

The Uni-T UT161B is a true RMS digital multimeter capable of measuring AC/DC voltage up to 1000V and current up to 10A. It features features such as non-contact voltage detection, resistance and capacitance measurements, as well as USB connectivity for data transfer.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
94,61 €
97,54 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

Uni-T UT161B Digital Multimeter


Uni-T UT161B is a True RMS digital multimeter that can measure AC/DC voltage up to 1000V and current up to 10A. It has features such as non-contact voltage detection, resistance, capacitance measurements, and USB connectivity for data transfer.


  • Advanced True RMS function ensures accurate measurements of AC and DC signals.
  • Wide measurement range: up to 1000V for voltage and 10A for current, suitable for high voltage systems.
  • Non-contact voltage detection (NCV) function with audible and visual warnings for increased safety.
  • Backlit display and USB connection for easy reading and data transfer.

Features

Product Type Digital Multimeter
Product Brand Uni-T
Model UT161B

Specifications

DC Voltage Measurement Up to 1000V ±(0.5%+3)
AC Voltage Measurement Up to 1000V ±(1.0%+3)
DC Current Measurement Up to 10A ±(1.0%+2)
AC Current Measurement Up to 10A ±(1.2%+5)
Resistance Measurement Up to 60MΩ ±(1.0%+2)
Capacity Measurement Up to 60mF ±(3.0%+5)
Frequency Measurement Up to 10MHz ±(0.1%+4)
Duty Cycle Measurement 0.1% ~ 99.9% ±(2.0%+5)
Maximum View 6000
AC Bandwidth 40Hz ~ 500Hz
Power supply 4x 1.5V AAA batteries
Dimensions 190 × 90 × 50mm
Weight 350 g
Security Class CAT III 1000V / CAT IV 600V
Certificates CE, UKCA, cETLus

Additional Information

Features True RMS, Non-Contact Voltage Detection, Diode Test, Continuity Test, Data Hold, Relative Mode, Max/Min, Illumination, Bar Graph, USB Connection
Security Warning Use the product for its intended purpose to ensure safety during operation.

Height100mm
Length300mm
Weight500g
Width200mm
