FNIRSI LCR-ST2Plus
FNIRSI LCR-ST2Plus is a handheld LCR meter for measuring resistance, capacitance, inductance, voltage, and diode parameters. It features a 1.47-inch color display, USB-C charging, multiple measurement frequencies, and comes with tweezers and a cable with Kelvin clamp.
- Portable LCR meter for measuring resistors, capacitors, inductors, diodes and voltage
- Supports five measurement frequencies and four RMS voltage levels, allowing for flexible and accurate component analysis
- Intelligent component recognition, frequency scanning and sorting functions facilitate single and batch measurements

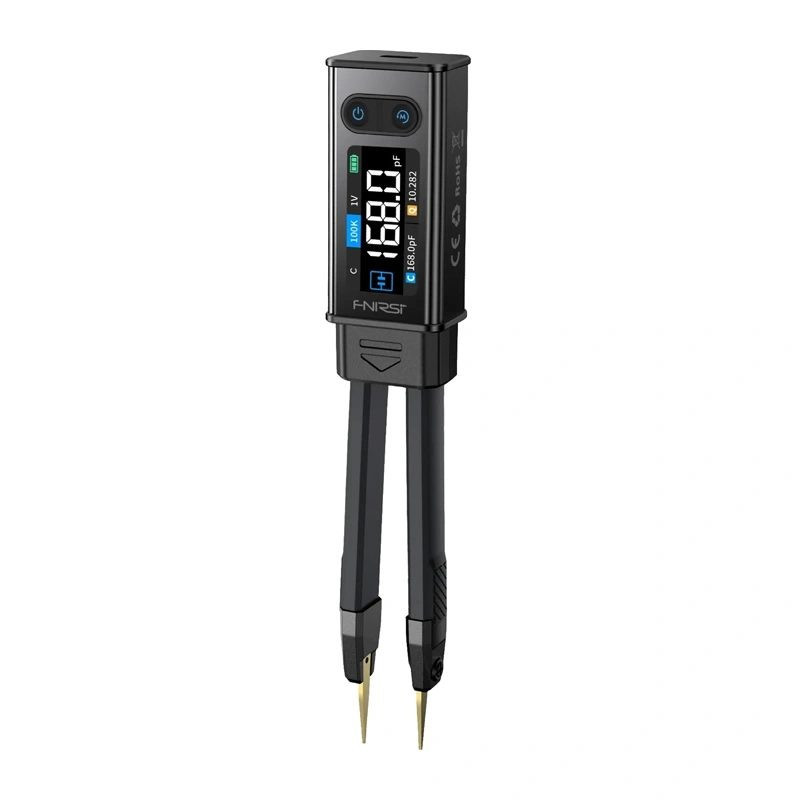

- Compact tweezer-style design with 1.47-inch color display, USB-C charging, and probes for SMD and larger components
Product information | |
|---|---|
| Product type | Handheld LCR meter |
| Brand | FNIRSI |
| Model | LCR-ST2Plus |
| Color | White |
| Main purpose | For measuring resistance, capacitance, inductance, voltage and diode parameters |
Measurement specifications | |
| Resistance range | 10mΩ-10MΩ |
| Capacity range | 1pF-22mF |
| Inductance range | 1μH-10H |
| Voltage measurement | Up to ±30V |
| Diode measurement | Direct voltage up to 0.7 V |
| Displayed parameters | D, Q, Z, X, θ and ESR |
| Measurement frequencies | 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz |
| Measurement voltage levels | 0.1 V, 0.3 V, 0.6 V and 1.0 V RMS |
| Frequency scanning | 100Hz-100kHz |

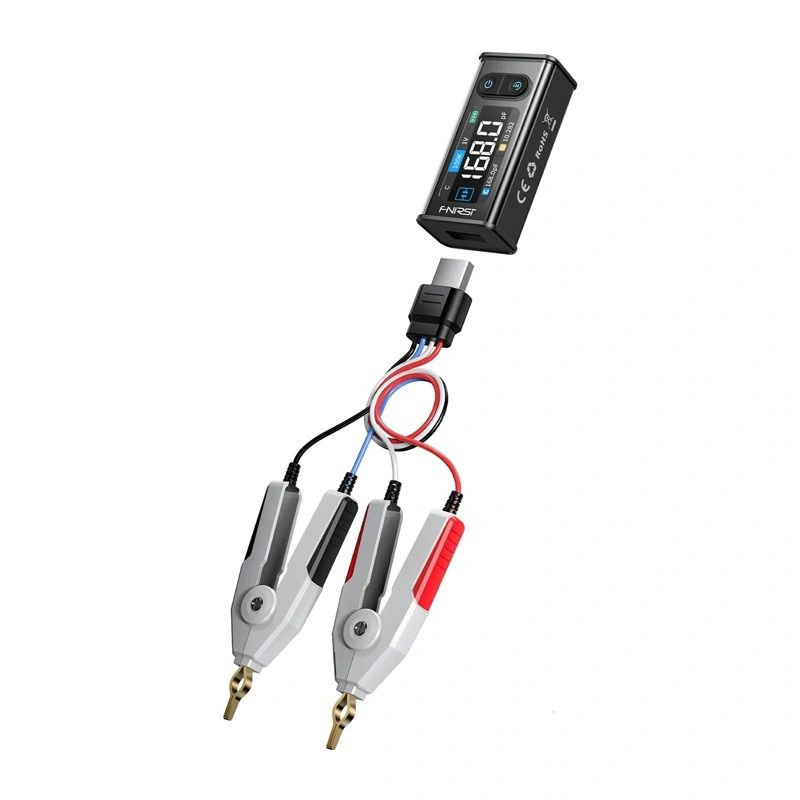

| Measurement method | Four-wire measurement with cable and Kelvin clamp |
Features | |
| Component identification | Automatic recognition of resistors, capacitors and coils |
| Sorting function | Classification of compliance and non-compliance according to predefined nominal values and tolerances |
| Additional features | HOLD, maximum and minimum values, series and parallel equivalent values, and automatic screen rotation |
Screen and construction | |
| Screen | 1.47-inch high-definition color screen |
| Dimensions | 31 × 170.7 × 20.3mm |
| Weight | About 60.8g |
| Battery | Built-in 300 mAh lithium battery |
| Operating time | About 3 o'clock. |
| Charging connector | USB-C |
| Operating temperature | 0 °C-50 °C; relative humidity up to 75% |
| Storage temperature | −20 °C-60 °C; relative humidity up to 75% |
Included accessories | |
| The set includes: |
|
Safety warning | |
| Safe use | Use only to measure components and voltages within the specified ranges. Do not connect the tester to circuits or sources with voltages exceeding ±30 V. Disconnect power before measuring components installed in the circuit. |
| Height | 50mm |
| Length | 200mm |
| Weight | 100g |
| Width | 100mm |
