FNIRSI LCR-ST2

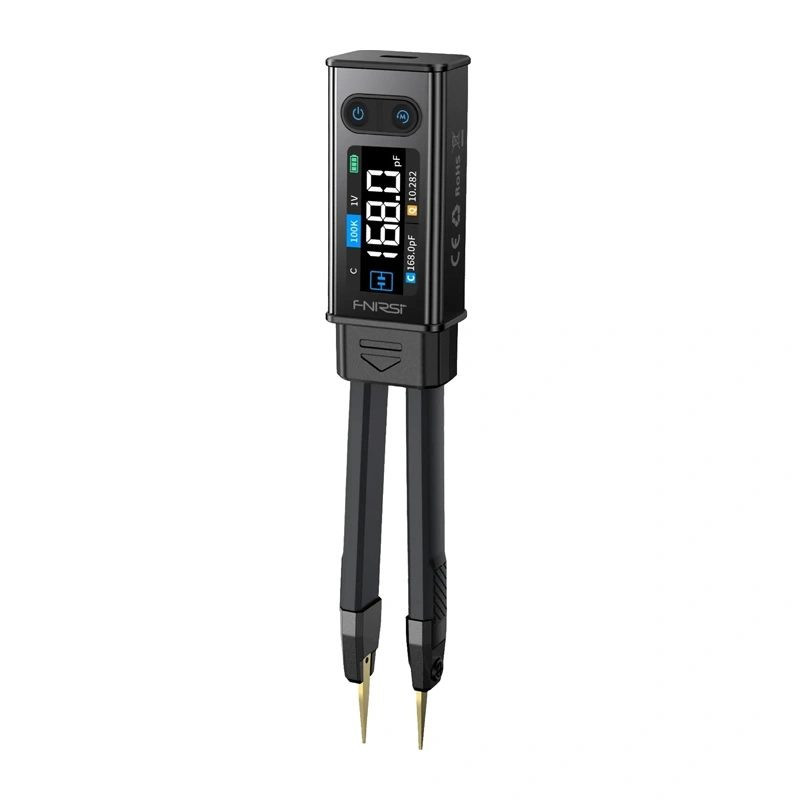

FNIRSI LCR-ST2 - electronic component tester with tweezers for measuring resistance, capacitance, inductance, voltage and diodes. It features a 1.47-inch color display, multiple measurement frequencies, USB-C charging and the ability to measure with a tweezers or Kelvin probe.
- Portable FNIRSI LCR-ST2 tester for measuring resistors, capacitors, inductors, diodes and voltage
- Supports five measurement frequencies from 100 Hz to 100 kHz and four RMS measurement voltage levels, making it suitable for analyzing a variety of components
- Automatic component recognition, D, Q, Z, X, θ and ESR readings, as well as frequency scan, sort, HOLD, Max and Min functions

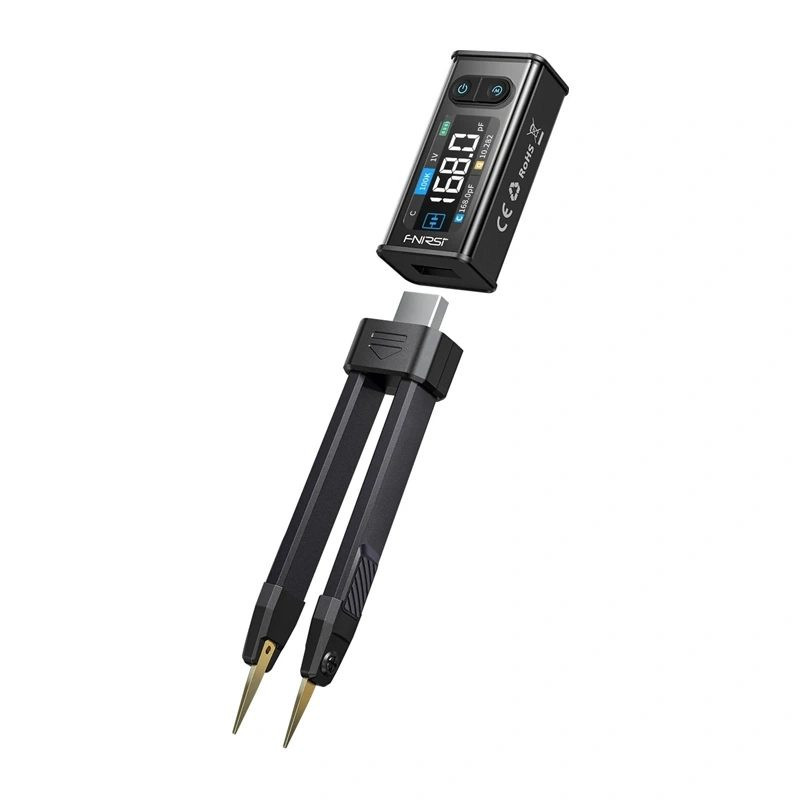

- Tweezer-style design with interchangeable probe connectors, auto-rotating 1.47-inch color display, and USB-C rechargeable battery
Product information | |
|---|---|
| Product type | LCR meter and electronic component tester |
| Brand | FNIRSI |
| Model | LCR-ST2 |
| Screen | 1.47-inch HD color screen with auto-rotation |
| Construction | Tweezer-type body with magnetic holder |
Measurement specifications | |
| Resistance range | 10mΩ-10MΩ |
| Capacity range | 1pF-22mF |
| Inductance range | 1μH-10H |
| Voltage measurement | Up to ±30V |
| Diode measurement | Forward voltage up to 0.7 V |
| Measurement frequencies | 100 Hz, 120 Hz, 1 kHz, 10 kHz and 100 kHz |
| RMS measurement voltage | 0.1V, 0.3V, 0.6V or 1.0V |
| Displayed parameters | D, Q, Z, X, θ and ESR |
Functions and connections | |
| Measurement functions | Automatic component recognition, frequency scan, component sorting, HOLD, Max and Min |
| Measurement modes | Equivalent serial and parallel measurements, two parameters displayed simultaneously |
| Probe connectors | Tweezer-type probes and four-wire Kelvin probe |
| Included accessories | Storage case, curved probe, shorting plate, USB-C data cable and user manual |
Power supply and dimensions | |
| Battery | Built-in 300 mAh lithium battery |
| Operating time | Approximately 3 hours |
| Charging connector | USB-C |
| Dimensions | 31 × 170.7 × 20.3mm |
| Weight | Approximately 60.8 g |
| Operating temperature | 0°C to 50°C, relative humidity not exceeding 75% |
| Storage temperature | −20 °C to 60 °C, relative humidity not exceeding 75% |
Safety warning | |
| Warning | Use only to measure compatible electronic components and do not exceed the specified measurement limits. Do not connect the tester to circuits or voltage sources exceeding ±30 V. Inspect the probes and cables before use, and protect the device from moisture and excessive heat. |
| Height | 50mm |
| Length | 200mm |
| Weight | 100g |
| Width | 100mm |
