Insulation resistance meter - Uni-T UT512D High Voltage Insulation Resistance Meter 1 TΩ 2500V Black
Product reference:
14-6935750551257
Uni-T UT512D is a high voltage insulation resistance tester that measures insulation resistance up to 1 TΩ with test voltages of 250V, 500V, 1000V and 2500V. It has an automatic discharge function, data logging capabilities and can store up to 999 measurement sets for analysis.
Insulation resistance meter - Uni-T UT512D High Voltage Insulation Resistance Meter 1 TΩ 2500V Black
Product reference:
14-6935750551257
Uni-T UT512D is a high voltage insulation resistance tester that measures insulation resistance up to 1 TΩ with test voltages of 250V, 500V, 1000V and 2500V. It has an automatic discharge function, data logging capabilities and can store up to 999 measurement sets for analysis.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

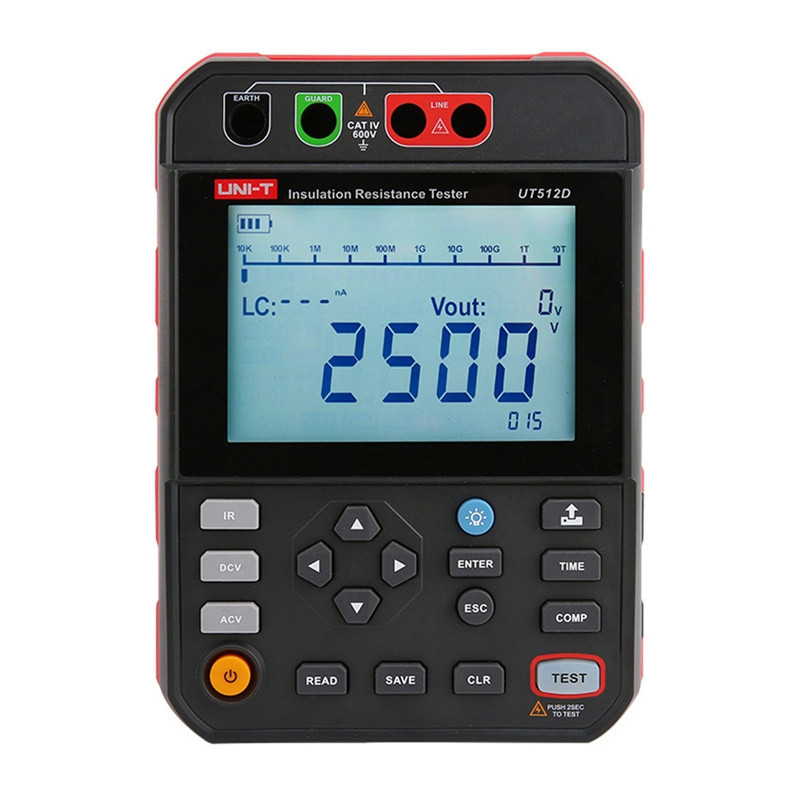

Uni-T UT512D High Voltage Insulation Resistance Meter
Uni-T UT512D is a high voltage insulation resistance meter that measures insulation resistance up to 1 TΩ with test voltages 250V, 500V, 1000V and 2500V. It has an automatic discharge function, data logging capabilities and can store up to 999 measurement sets for analysis.
- Measures insulation resistance with test voltages up to 2500V, suitable for various electrical maintenance and installation applications.
- Features polarization index (PI) and dielectric absorption ratio (DAR) functions to ensure accurate insulation condition assessment.
- Equipped with automatic discharge and high voltage alarm to ensure greater user safety during testing.
- Stores up to 999 measurement sets and allows USB data transfer for convenient analysis and documentation.
Features | |
|---|---|
| Product Type | High Voltage Insulation Resistance Meter |
| Product Brand | Uni-T |
| Model | UT512D |
Specifications | |
| Tests Voltages | 250V / 500V / 1000V / 2500V |
| Maximum Output Voltage | up to 2.5 kV |
| Insulation Resistance Meter | up to 249 GΩ (accurate) and up to 1.00 TΩ (indicative) |
| Short Circuit Current Meter | about 3.5 mA |
| Data Memory | up to 999 measurements |
| PC Connection | via USB |
| Voltage Category | CAT IV 600V |
| Power Source | 8 × LR14 alkaline batteries |
| Dimensions | 238 × 166 × 90.5 mm |
| Weight | approx. 1800 g (with batteries) |
| Certificates of Conformity | CE, UKCA |
Safety Warning | |
| Use the product only for its intended purpose to ensure safety during operation. | |
| Height | 150mm |
| Length | 300mm |
| Weight | 2400g |
| Width | 250mm |
