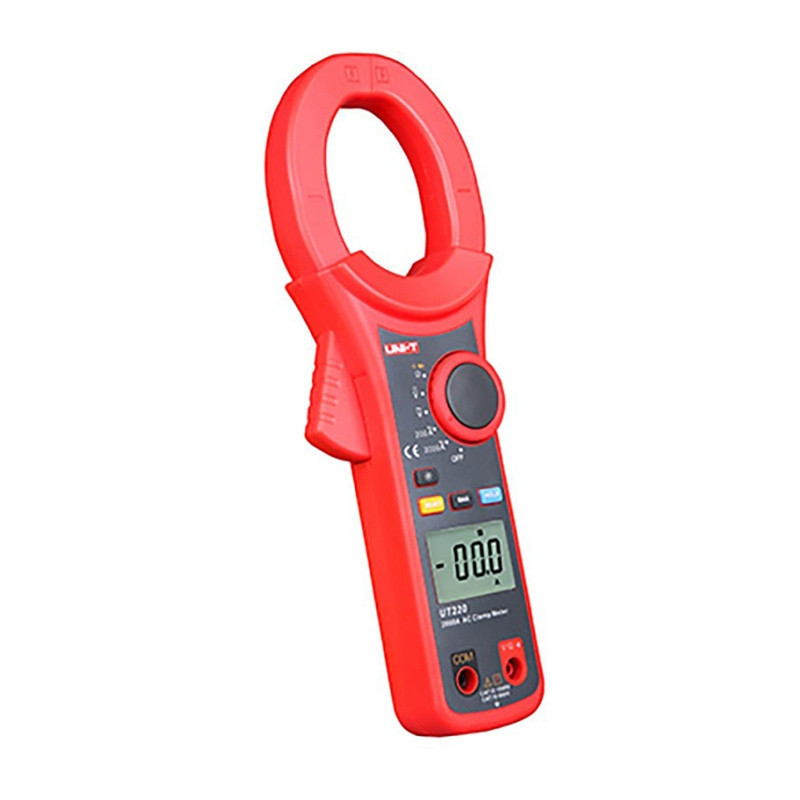

Clamp Meter - UNI-T UT220 2,000 A AC, 750 V AC, 1,000 V DC, 20 MΩ, 63 mm Clamp Hole
Product reference: 14-6935750522080

UNI-T UT220 - digital clamp meter for measuring AC current up to 2,000 A, AC voltage up to 750 V and DC voltage up to 1,000 V, and resistance up to 20 MΩ. It is equipped with 63 mm clamps, automatic range selection, diode and circuit continuity test functions, as well as "Data Hold" and "MAX" modes.

Gnybtų Matuoklis - UNI-T UT220 2 000 A AC, 750 V AC, 1 000 V DC, 20 MΩ, 63 mm Žnyplių Anga
Gnybtų Matuoklis - UNI-T UT220 2 000 A AC, 750 V AC, 1 000 V DC, 20 MΩ, 63 mm Žnyplių Anga
Gnybtų Matuoklis - UNI-T UT220 2 000 A AC, 750 V AC, 1 000 V DC, 20 MΩ, 63 mm Žnyplių Anga

Clamp Meter - UNI-T UT220 2,000 A AC, 750 V AC, 1,000 V DC, 20 MΩ, 63 mm Clamp Hole

Product reference: 14-6935750522080

UNI-T UT220 - digital clamp meter for measuring AC current up to 2,000 A, AC voltage up to 750 V and DC voltage up to 1,000 V, and resistance up to 20 MΩ. It is equipped with 63 mm clamps, automatic range selection, diode and circuit continuity test functions, as well as "Data Hold" and "MAX" modes.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
64,84 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

UNI-T UT220


UNI-T UT220 - digital current clamp meter designed to measure up to 2,000 A AC current, up to 750 V AC voltage, up to 1,000 V DC voltage and up to 20 MΩ resistance. It features a 63 mm clamp mouth, automatic measurement range selection, diode and circuit integrity test functions, data hold and MAX functions.


  • Professional digital current clamp meter for measuring alternating current up to 2,000 A
  • Measures up to 750 V AC voltage, up to 1,000 V DC voltage, and up to 20 MΩ resistance
  • 63 mm wide pliers are suitable for thick cables and conductors
  • Automatic range selection, diode and circuit integrity check, data hold and MAX functions, and low battery indicator

Product information

Product type Digital current clamp meter
Brand UNI-T
Model UT220

Technical specifications

AC measurement accuracy ±(2.5% + 5)
AC voltage measurement accuracy ±(1.2% + 5)
DC voltage measurement accuracy ±(0.8% + 1)
Resistance measurement accuracy ±(1% + 2)
Maximum display 2,000
Pliers jaw width 63 mm
Screen size 43 × 30 mm
Input impedance Manufacturer's recommended safe measurement

Features

Measurement functions AC current, AC voltage, DC voltage, resistance, diode and circuit integrity testing
Meter functions Automatic range selection, data hold function, MAX function and low battery indicator

Power supply and construction

Power source 1 × 9V 6F22 battery
Dimensions 298 × 107 × 47mm
Weight 389 g
Certificates CE, UKCA and cETLus

Included accessories

The set includes:
  • Current clamp meter
  • Measuring leads
  • 9V 6F22 battery
  • Carrying case
  • User manual

Safety warning

Warning For electrical measurements only. Use the meter, test leads and clamps within the specified parameters. Follow the user manual, use appropriate personal protective equipment and never touch exposed conductors during measurement. Disconnect power before measuring resistance, checking diodes or circuit continuity.

Height100mm
Length350mm
Weight500g
Width150mm
