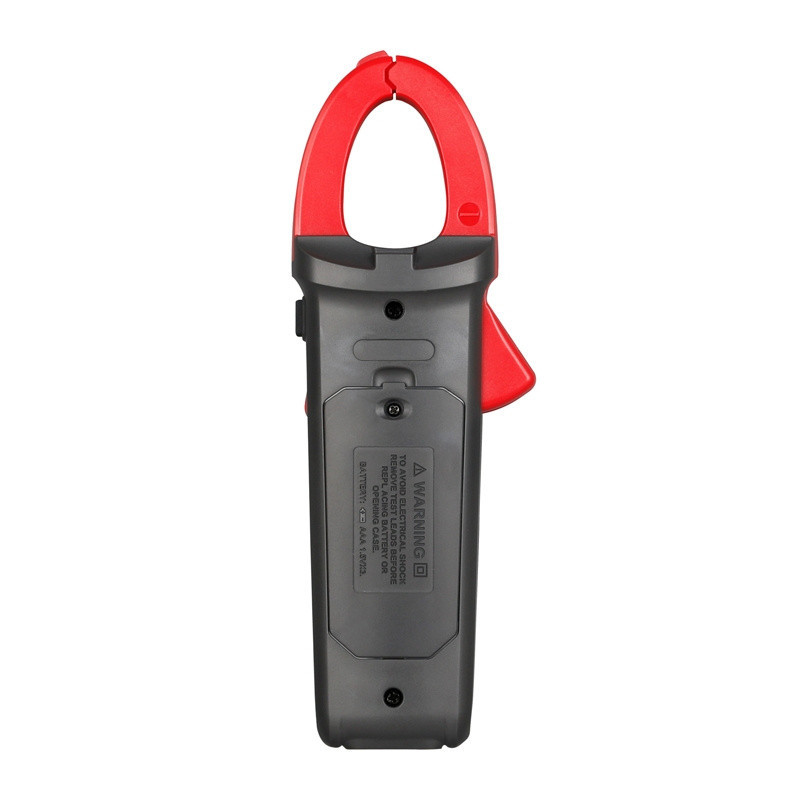

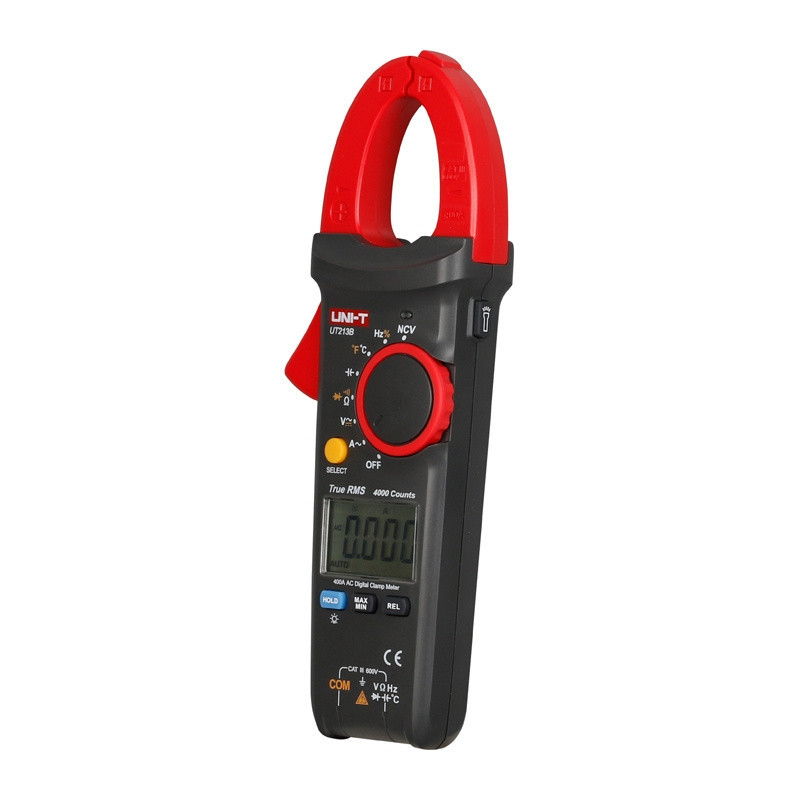

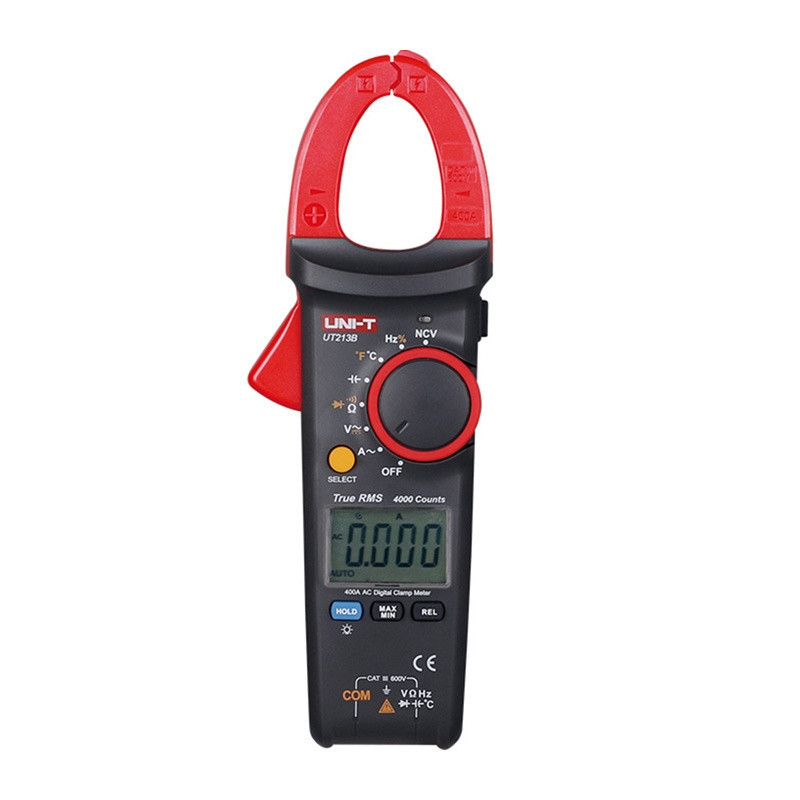

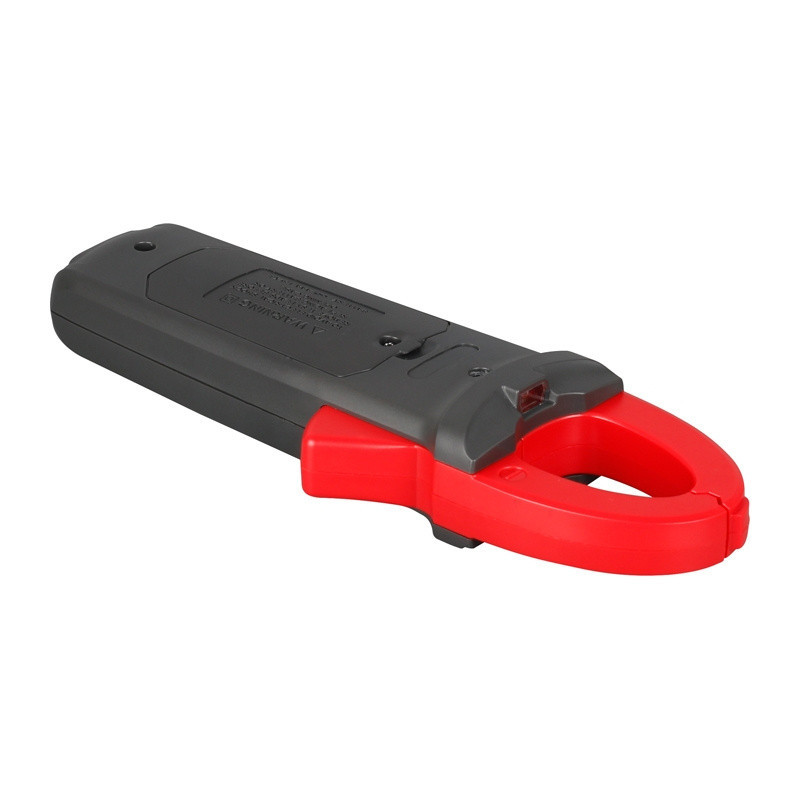

Clamp Meter - UNI-T UT213B 400A 3rd Generation True RMS Clamp Meter
Product reference:
14-6935750521328
True RMS current clamp meter for measuring AC current up to 400 A, AC and DC voltage up to 600 V, resistance, capacitance, frequency and temperature. 30 mm mouth, non-contact voltage detection, diode and circuit continuity testing, illuminated display, flashlight and CAT III 600 V protection ensure convenient and safe operation.
Clamp Meter - UNI-T UT213B 400A 3rd Generation True RMS Clamp Meter
Product reference:
14-6935750521328
True RMS current clamp meter for measuring AC current up to 400 A, AC and DC voltage up to 600 V, resistance, capacitance, frequency and temperature. 30 mm mouth, non-contact voltage detection, diode and circuit continuity testing, illuminated display, flashlight and CAT III 600 V protection ensure convenient and safe operation.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
UNI-T UT213B 400 A, 3rd generation true RMS current clamp meter
True RMS current clamp for measuring AC current up to 400 A, AC and DC voltage up to 600 V, resistance, capacitance, frequency and temperature. The tool features a 30 mm clamp opening, non-contact voltage detection, diode and circuit continuity testing, illuminated display, flashlight and CAT III 600 V protection.
- True RMS current clamp for accurate AC current measurements up to 400 A
- Measures AC and DC voltage, resistance, capacitance, frequency and temperature up to 1,000 °C
- 30 mm pliers opening and CAT III 600 V safety rating for electrical and HVAC system diagnostics
- Non-contact voltage detection, diode and circuit integrity testing, data hold, illuminated display and integrated flashlight
Product information | |
|---|---|
| Product type | Digital True RMS Current Clamp Meters |
| Brand | UNI-T |
| Model | UT213B |
| Generation | 3rd generation |
Technical specifications | |
| AC measurement accuracy | ±(1.8% + 9) |
| AC voltage measurement accuracy | ±(1.2% + 5) |
| DC voltage measurement accuracy | ±(0.8% + 1) |
| Resistance range and accuracy | Up to 40 MΩ; ±(1% + 2) |
| Capacity range and accuracy | Up to 40 mF; ±(4% + 5) |
| Frequency range and accuracy | 10Hz-1MHz; ±(0.1% + 4) |
| Temperature measurement accuracy | ±(1% + 3) |
| Maximum display | 4,000 sections |
| Pliers hole | 30 mm |
| Measurement category | CAT III 600V |
Features | |
| Measurement and inspection functions |
|
| Additional features | Data hold, relative mode, MAX/MIN, LCD backlight, flashlight and auto power off |
Power supply and construction | |
| Power source | 3 × 1.5V R03/AAA batteries |
| Dimensions | 220 × 75 × 40mm |
| Weight | 280 g |
| Certificates | CE, UKCA, cETLus |
Included accessories | |
| The set includes: |
|
Safety warning | |
| Warning | For electrical measurement and diagnostic purposes only. Follow the user manual and do not exceed the limits specified for CAT III 600 V. Do not exceed the specified measurement values, check the test leads before use, and wear appropriate personal protective equipment when working on live circuits. |
| Height | 100mm |
| Length | 300mm |
| Weight | 420g |
| Width | 150mm |
