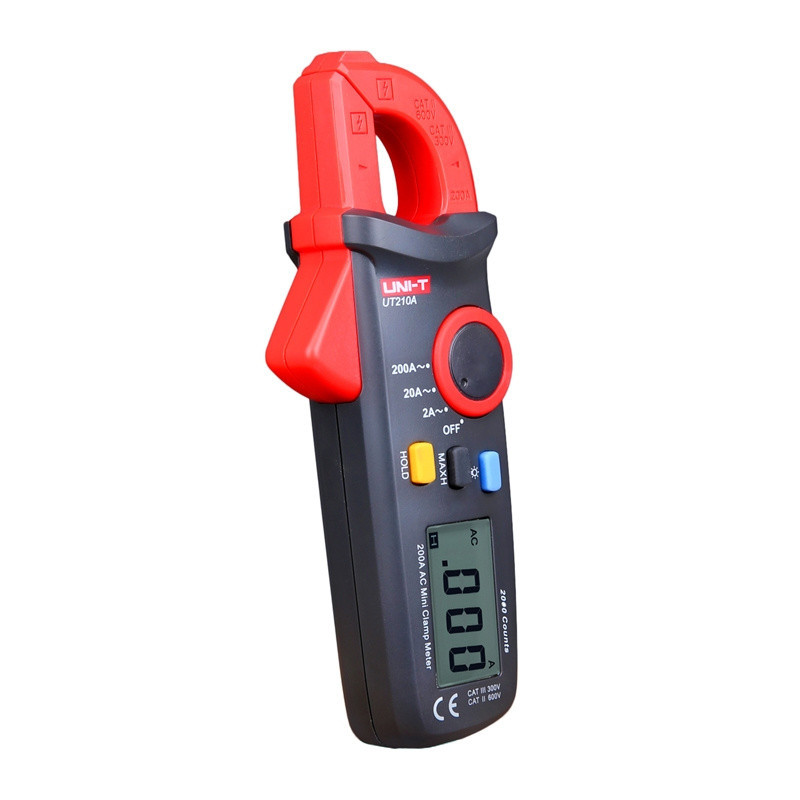

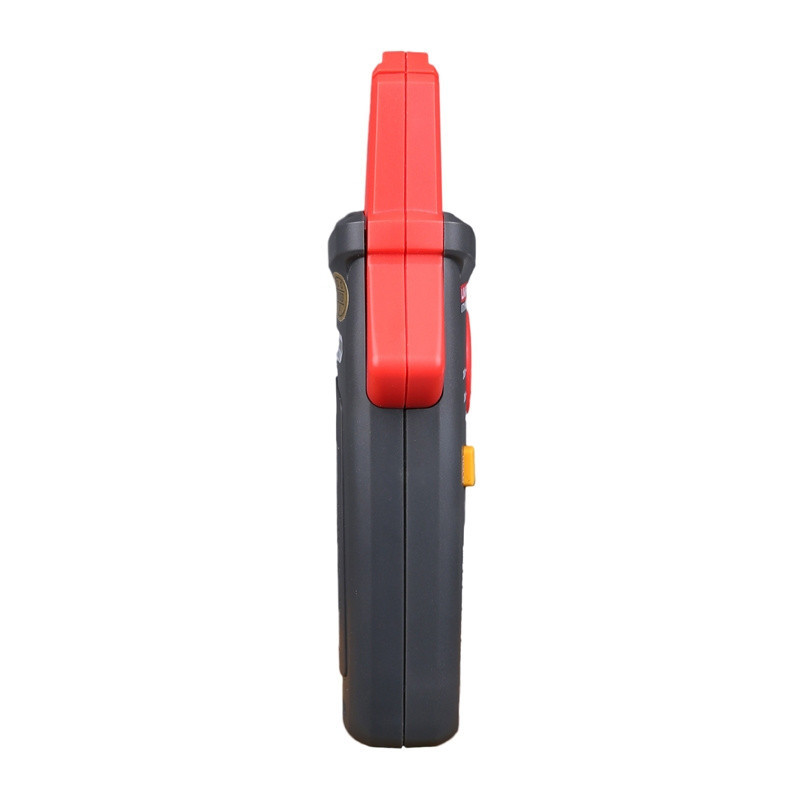

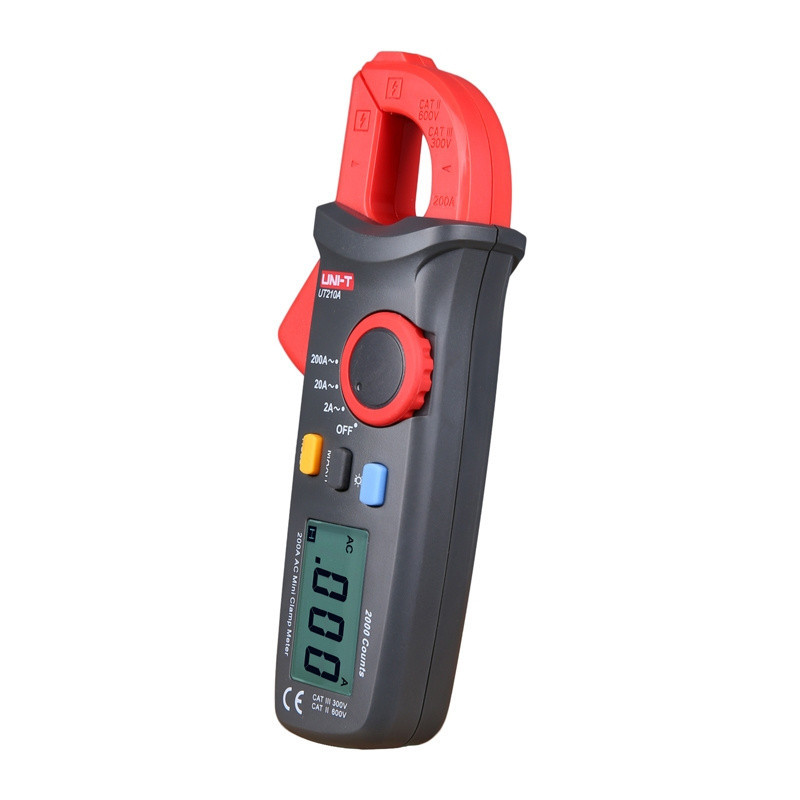

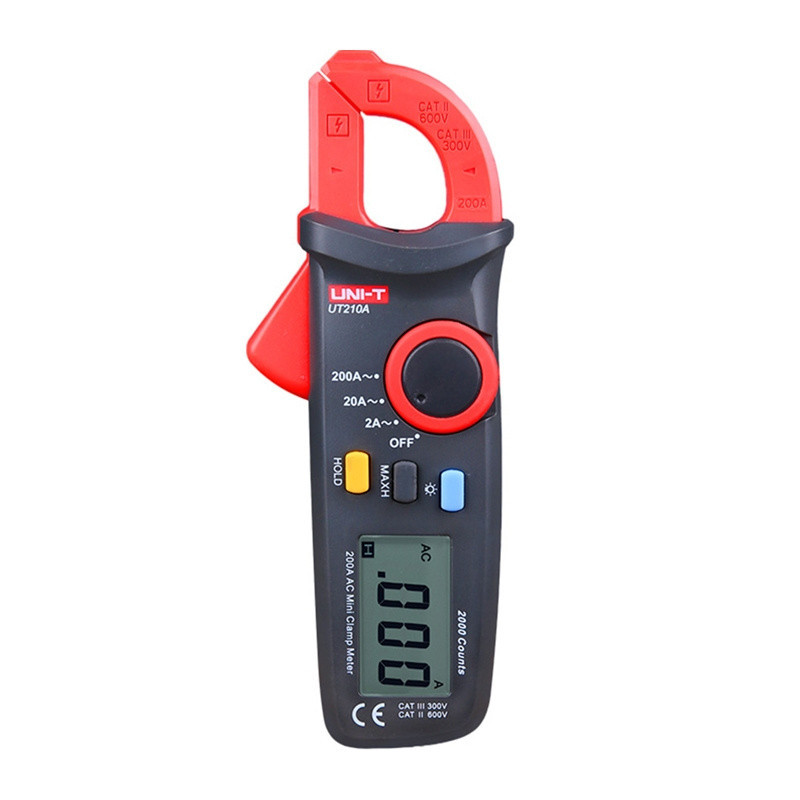

Clamp Meter - UNI-T UT210A 200 A Mini Clamp Meter
Product reference:
14-6935750512104
Compact digital clamp multimeter for measuring AC current up to 200 A, with 16 mm clamp opening. Equipped with continuity signal, data hold function, backlight, automatic power off and low battery indicator.
Clamp Meter - UNI-T UT210A 200 A Mini Clamp Meter
Product reference:
14-6935750512104
Compact digital clamp multimeter for measuring AC current up to 200 A, with 16 mm clamp opening. Equipped with continuity signal, data hold function, backlight, automatic power off and low battery indicator.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days
UNI-T UT210A 200 A mini clamp meter
Mini digital clamp meter for measuring alternating current up to 200 A in conductors with a diameter of up to 16 mm. The device features an audible integrity signal, data hold function, display backlight, automatic shutdown and low battery indicator.
- Compact mini clamp meter for daily electrical system maintenance and measurements in tight spaces
- Measures up to 200 A AC current, pliers open up to 16 mm
- Data capture function, display backlight, audible integrity signal, automatic power off and low battery indicator
- Lightweight body weighing 150 g; includes two batteries and user manual
Product information | |
|---|---|
| Product type | Mini digital clamp meter |
| Brand | Uni-T |
| Model | UT210A |
| Purpose | AC current measurement in electrical conductors during maintenance, installation and troubleshooting work |
Technical specifications | |
| AC range | Up to 200 A |
| AC measurement accuracy | ±(2.5% + 20) |
| Maximum reading | 2000 |
| Pliers hole | 16 mm |
| Screen size | 39.3 × 26.5 mm |
| Power source | 2 × 1.5V R03 batteries |
Features | |
| Integrity checking | Audible integrity signal |
| Measurement functions | Data capture |
| Screen | Lighting |
| Power management | Automatic shut-off and low battery indicator |
Physical properties | |
| Dimensions | 158 × 60 × 33.5mm |
| Weight | 150 g |
| Certificates | CE, UKCA, cETLus |
Complete set | |
| In the set |
|
Safety warning | |
| Electrical safety | Use the clamp meter only for its intended purpose and within the specified measuring range of 200 A AC. Follow the operating instructions, inspect the meter before use and do not use it if it is damaged. Be careful when working near live electrical conductors. |
| Height | 100mm |
| Length | 200mm |
| Weight | 250 g |
| Width | 80mm |
