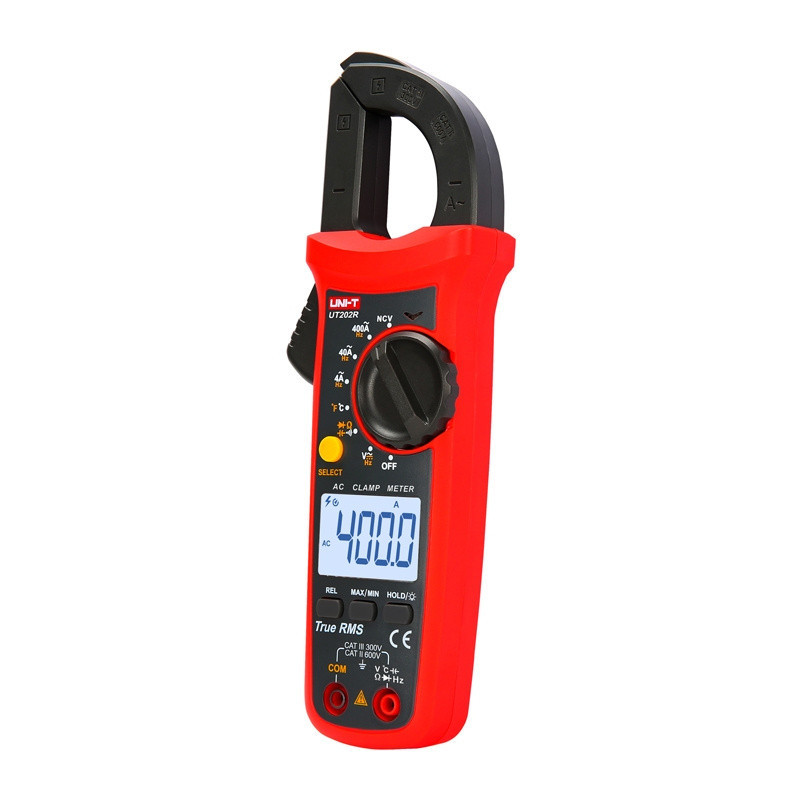

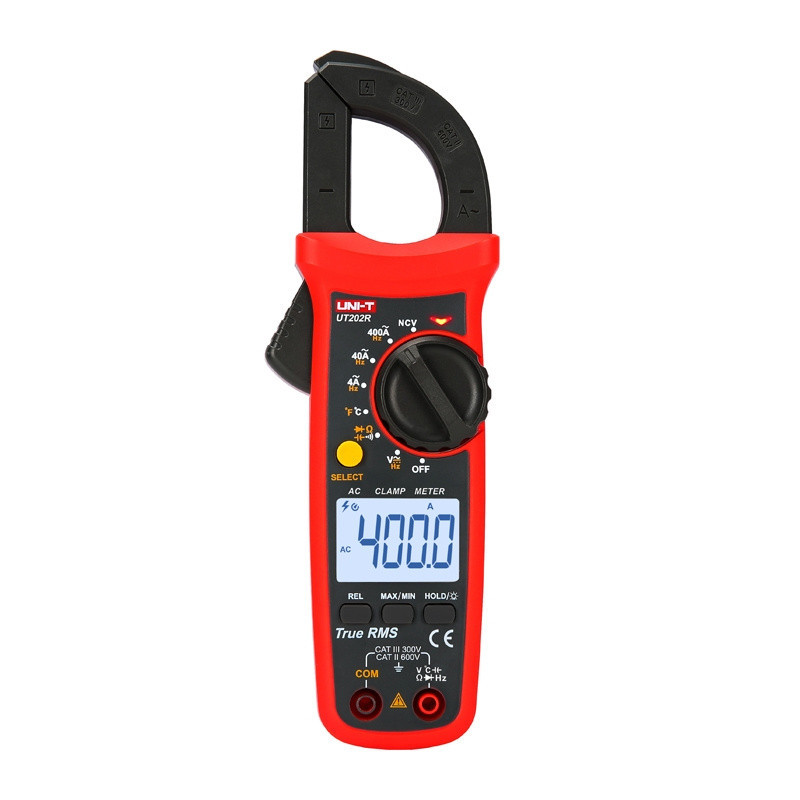

UNI-T UT202R current clamp
UNI-T UT202R - digital current clamp meter for measuring AC current up to 400 A, AC and DC voltage up to 600 V, resistance, capacitance and temperature. The device has a True RMS function, non-contact voltage detection (NCV), continuity and diode test functions, a backlit LCD display and a 28 mm clamp mouth opening.
- Measures alternating current up to 400 A without disconnecting the circuit, and the pliers have a jaw opening of 28 mm.
- Measures AC and DC voltage up to 600 V, as well as resistance, capacitance, frequency and temperature.
- True RMS, NCV, diode and continuity test functions, data hold, and peak and minimum functions make everyday diagnostics easy.
- The illuminated 4000-digit LCD display and CAT II 600 V / CAT III 300 V safety ratings ensure clear readings and safer use.
Product information | |
|---|---|
| Product type | Digital current clamp with True RMS function |
| Brand | UNI-T |
| Model | UT202R |
| Screen | 4000-digit LCD display with backlight |
Measurement specifications | |
| Alternating current | 0.04-400 A, accuracy ±(2 % + 10) |
| Alternating voltage | Up to 600 V, accuracy ±(0.8% + 5) |
| Constant voltage | Up to 600 V, accuracy ±(0.5% + 2) |
| Alternating current frequency | 50-100 Hz, accuracy ±(1 % + 5) |
| AC voltage frequency | 10 Hz-10 kHz, accuracy ±(1 % + 5) |
| Resistance | Up to 40 MΩ |
| Capacity | Up to 4 mF, accuracy ±(4 % + 5) |
| Temperature | −40 °C-1,000 °C, accuracy ±(1.5% + 5) |
Functions and design | |
| Pliers mouth opening | 28 mm |
| Measurement functions | Non-contact voltage detection, diode testing, continuity testing, data hold, maximum and minimum values |
| Power supply | 2 × 1.5V R03 batteries |
| Dimensions | 215 × 63 × 36mm |
| Safety category | CAT II 600V / CAT III 300V |
| Certificates | CE, UKCA, cETLus |
Complete set | |
| In the set |
|
Safety warning | |
| Warning | Use the device only for its intended purpose - to measure electrical parameters and within the specified measurement limits. Before use, check the device, test leads and accessories. Do not use damaged equipment. Observe the requirements of the CAT II 600 V / CAT III 300 V safety category, use appropriate personal protective equipment and, when necessary, turn off the power before connecting or disconnecting the test leads. |
| Height | 100mm |
| Length | 250mm |
| Weight | 450 g |
| Width | 150mm |
