Clamp Meter - UNI-T UT205E True RMS 1,000 A, 1,000 V, 42 Mm Terminal Hole
Product reference: 14-6935750520536

UNI-T UT205E True RMS Current Clamp Meter measures up to 1,000 A AC current, up to 1,000 V AC and DC voltage, resistance, capacitance, frequency and duty cycle. 42 mm jaw opening, automatic measurement range selection, non-contact voltage detection, illumination and flashlight ensure convenient use, and CAT III 1,000 V / CAT IV 600 V categories ensure safety.

Apkabos Matuoklis - UNI-T UT205E True RMS 1 000 A, 1 000 V, 42 Mm Gnybtų Anga
Apkabos Matuoklis - UNI-T UT205E True RMS 1 000 A, 1 000 V, 42 Mm Gnybtų Anga
Apkabos Matuoklis - UNI-T UT205E True RMS 1 000 A, 1 000 V, 42 Mm Gnybtų Anga
Apkabos Matuoklis - UNI-T UT205E True RMS 1 000 A, 1 000 V, 42 Mm Gnybtų Anga
Apkabos Matuoklis - UNI-T UT205E True RMS 1 000 A, 1 000 V, 42 Mm Gnybtų Anga

Clamp Meter - UNI-T UT205E True RMS 1,000 A, 1,000 V, 42 Mm Terminal Hole

Product reference: 14-6935750520536

UNI-T UT205E True RMS Current Clamp Meter measures up to 1,000 A AC current, up to 1,000 V AC and DC voltage, resistance, capacitance, frequency and duty cycle. 42 mm jaw opening, automatic measurement range selection, non-contact voltage detection, illumination and flashlight ensure convenient use, and CAT III 1,000 V / CAT IV 600 V categories ensure safety.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
77,25 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

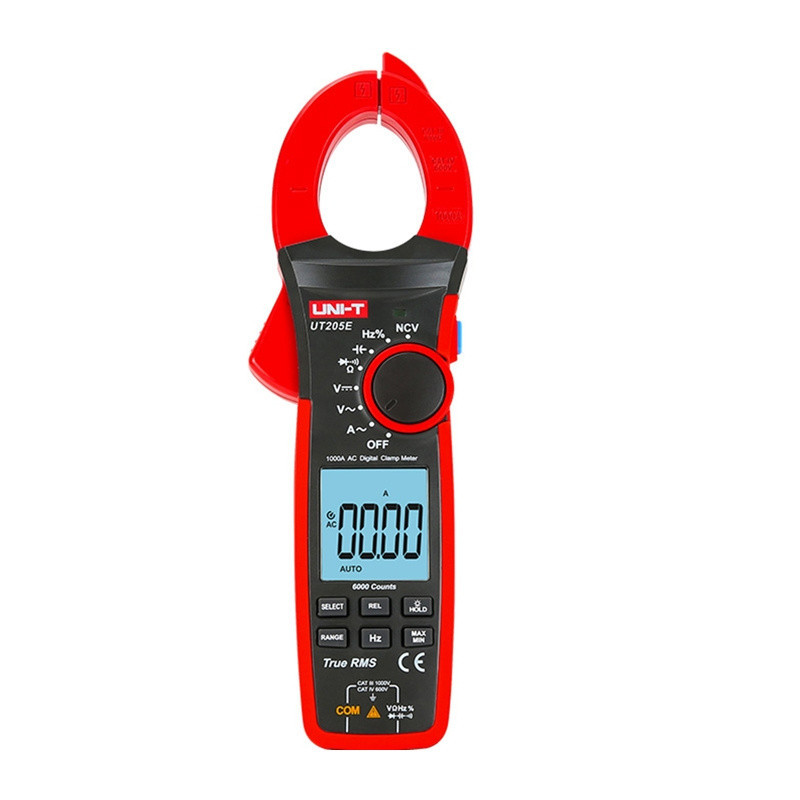

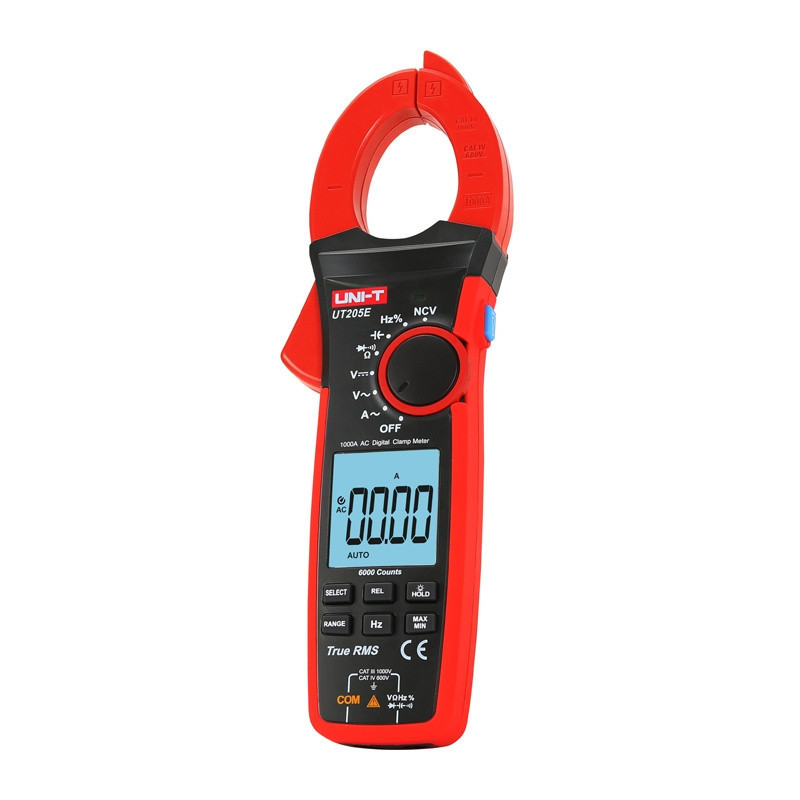

UNI-T UT205E True RMS Current Clamp Meter


UNI-T UT205E True RMS current clamp measures up to 1,000 A AC current, up to 1,000 V AC and DC voltage, resistance, capacitance, frequency and duty cycle. Equipped with 42 mm mouth, automatic range selection, non-contact voltage detection, display illumination, flashlight. Safety categories - CAT III 1,000 V / CAT IV 600 V.


  • True RMS current clamp for convenient non-contact AC current measurement up to 1,000 A
  • Measures AC and DC voltage, resistance, capacitance, frequency and duty cycle, making it suitable for a variety of electrical diagnostics
  • 42 mm mouth, automatic range selection, non-contact voltage detection, display illumination and built-in flashlight for convenient on-site work
  • Safety categories CAT III 1000 V / CAT IV 600 V and clear 6000-digit display

Product information

Product type True RMS current clamps
Brand UNI-T
Model UT205E
Screen 6,000-segment LCD display, 43 × 45 mm
Mouth width 42 mm

Measurement specifications

Alternating current Up to 1,000 A; accuracy ±(2% + 5); frequency range 50-60 Hz
Alternating voltage Up to 1000 V; accuracy ±(1.2% + 3); frequency range 40-400 Hz
Constant voltage Up to 1000 V; accuracy ±(0.5% + 5)
Resistance Up to 60 MΩ; accuracy ±(1 % + 2)
Capacity Up to 60 mF; accuracy ±(4 % + 5)
Frequency 10 Hz-1 MHz; accuracy ±(0.1% + 3)
Duty cycle 10-90%; accuracy ±(2.6% + 7)

Functions and design

Range selection Automatic
Additional features Non-contact voltage detection, display backlight, built-in flashlight, True RMS measurement
Power supply 3 × 1.5V R03 batteries
Dimensions 272 × 81 × 43.5mm
Weight 465 g

Included accessories

The set includes:
  • UT205E Current Clamp Meter
  • Measuring leads
  • 3 AAA batteries
  • User manual

Safety

Measurement category CAT III 1000V / CAT IV 600V
Safety warning For electrical measurements only. Use within the specified voltage, current and measurement category limits. Check the meter and test leads before use, follow the instructions in the user manual, and turn off the power before connecting or disconnecting test leads. Only properly trained personnel may work on live electrical equipment.

Height100mm
Length350mm
Weight600g
Width150mm
