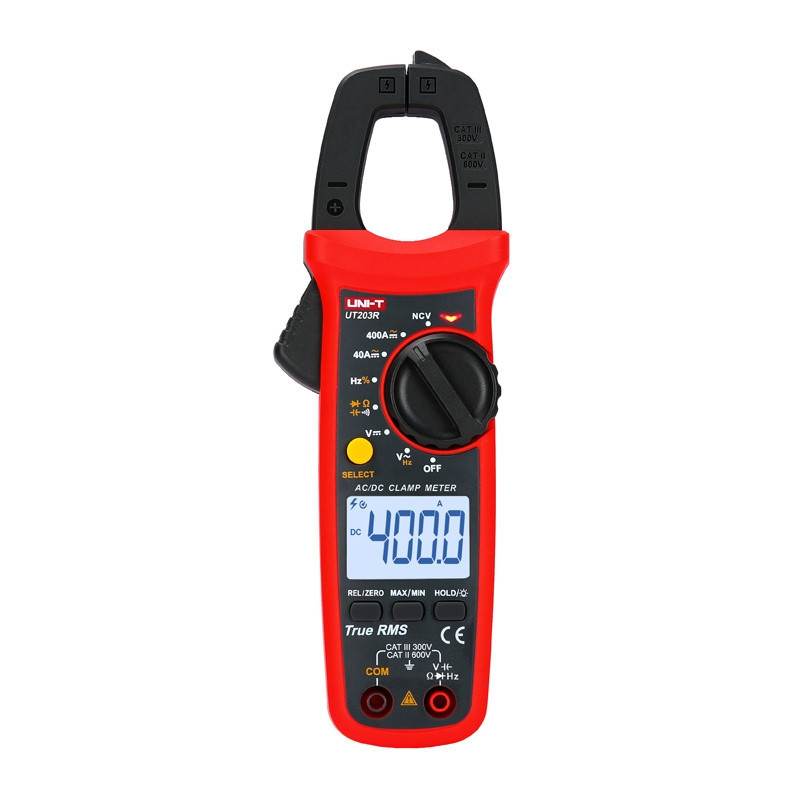

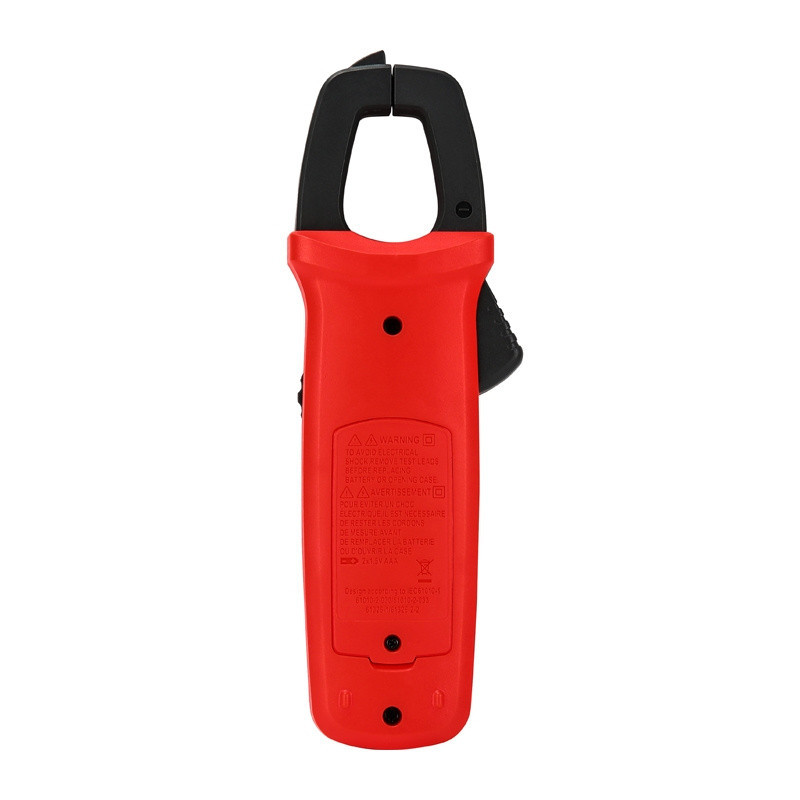

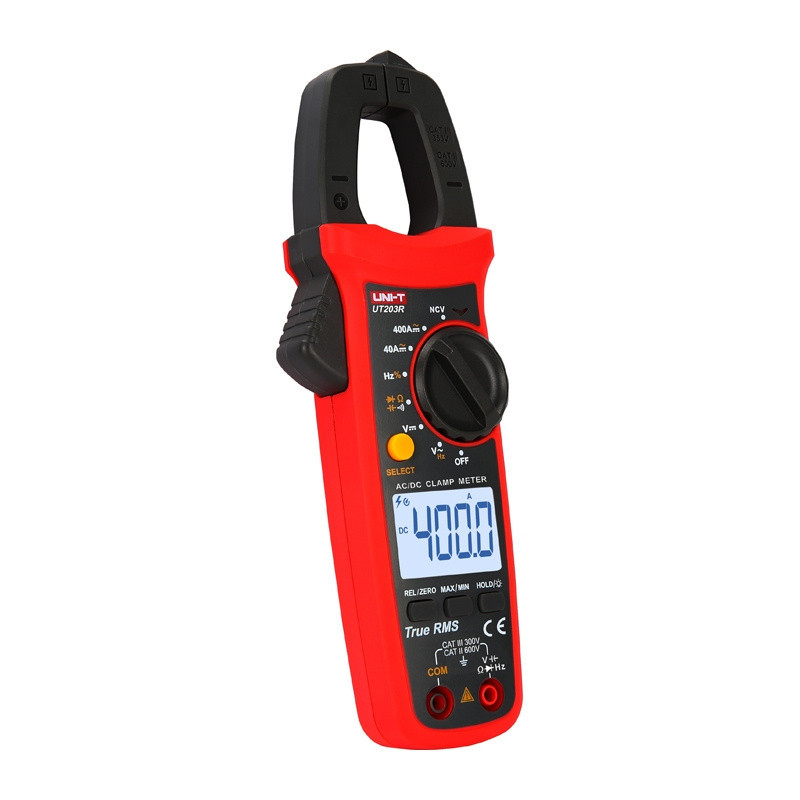

Clamp Meter - UNI-T UT203R, 400 A, 600 V, True RMS Value, 28 mm Clamp
Product reference: 14-6935750520390

UNI-T UT203R - digital current clamp meter designed to measure up to 400 A AC and DC current and up to 600 V AC and DC voltage. It features true RMS measurement, non-contact voltage (NCV) detection, resistance, capacitance, frequency, diode and circuit integrity testing functions, and a 28 mm mouth and illuminated display ensure convenient use.

Apkabos Matuoklis - UNI-T UT203R, 400 A, 600 V, Tikroji RMS Vertė, 28 mm Žnyplė
Apkabos Matuoklis - UNI-T UT203R, 400 A, 600 V, Tikroji RMS Vertė, 28 mm Žnyplė
Apkabos Matuoklis - UNI-T UT203R, 400 A, 600 V, Tikroji RMS Vertė, 28 mm Žnyplė
Apkabos Matuoklis - UNI-T UT203R, 400 A, 600 V, Tikroji RMS Vertė, 28 mm Žnyplė
Apkabos Matuoklis - UNI-T UT203R, 400 A, 600 V, Tikroji RMS Vertė, 28 mm Žnyplė

Clamp Meter - UNI-T UT203R, 400 A, 600 V, True RMS Value, 28 mm Clamp

Product reference: 14-6935750520390

UNI-T UT203R - digital current clamp meter designed to measure up to 400 A AC and DC current and up to 600 V AC and DC voltage. It features true RMS measurement, non-contact voltage (NCV) detection, resistance, capacitance, frequency, diode and circuit integrity testing functions, and a 28 mm mouth and illuminated display ensure convenient use.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
82,31 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

UNI-T UT203R current clamp


UNI-T UT203R - digital current clamps for measuring up to 400 A AC and DC current and up to 600 V AC and DC voltage. The device has a true RMS function, non-contact voltage detection (NCV), resistance, capacitance, frequency, diode and circuit continuity test functions, a 28 mm clamp mouth and a backlit display.


  • Professional current clamps designed to measure AC and DC current up to 400 A without disconnecting the circuit.
  • Measures AC and DC voltages up to 600 V, as well as resistance, capacitance and frequency, making it suitable for various electrical diagnostics.
  • Convenient use is ensured by the true RMS function, NCV detection, diode and circuit integrity testing, data hold, relative mode and DC zeroing.
  • The device's pliers mouth is 28 mm wide, the display is clear and illuminated, and the safety categories are CAT II 600 V / CAT III 300 V.

Product information

Product type Digital current clamps
Brand UNI-T
Model UT203R
Screen 4000-digit LCD display with backlight

Measurement specifications

AC range 0.04-400 A; accuracy ±(2 % + 5)
DC range 0.04-400 A; accuracy ±(2 % + 5)
Alternating voltage Up to 600 V; accuracy ±(0.8% + 5)
Constant voltage Up to 600 V; accuracy ±(0.5% + 2)
Resistance Up to 40 MΩ
Capacity Up to 40 mF; accuracy ±(4 % + 5)
Frequency 10 Hz-10 MHz; accuracy ±(0.1% + 4)
AC voltage frequency 10 Hz-60 kHz; accuracy ±(0.5% + 2)

Functions and design

Measurement functions True RMS, non-contact voltage detection, diode test, circuit continuity test, data hold, relative mode and DC zeroing
Pliers jaw width 28 mm
215 × 63 × 36mm
Power supply 2 × 1.5V R03 batteries

Safety and equipment

Measurement category CAT II 600V / CAT III 300V
Certificates CE, UKCA, cETLus
The set includes: Current clamp, 2 batteries, test leads and instruction manual
Safety warning Use only for electrical measurements within the specified ranges and measurement categories. Follow the operating instructions, use suitable test leads, do not touch exposed conductors and do not exceed the specified voltage and current. Keep out of reach of children. Before use, check the meter and leads for damage.

Height100mm
Length300mm
Weight450 g
Width150mm
