Clamp Meter - Habotest HT208D AC/DC 6,000 Counts 44mm Clamps True RMS
Product reference:
14-5907489607711
Digital clamp meter for measuring AC and DC voltage and current, resistance, capacitance, frequency, temperature and circuit continuity. It features True RMS, non-contact voltage detection (NCV), 6,000-count display, 44 mm clamps, flashlight, data hold and auto power off functions.
Clamp Meter - Habotest HT208D AC/DC 6,000 Counts 44mm Clamps True RMS
Product reference:
14-5907489607711
Digital clamp meter for measuring AC and DC voltage and current, resistance, capacitance, frequency, temperature and circuit continuity. It features True RMS, non-contact voltage detection (NCV), 6,000-count display, 44 mm clamps, flashlight, data hold and auto power off functions.
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Europe in
15 - 16
business days

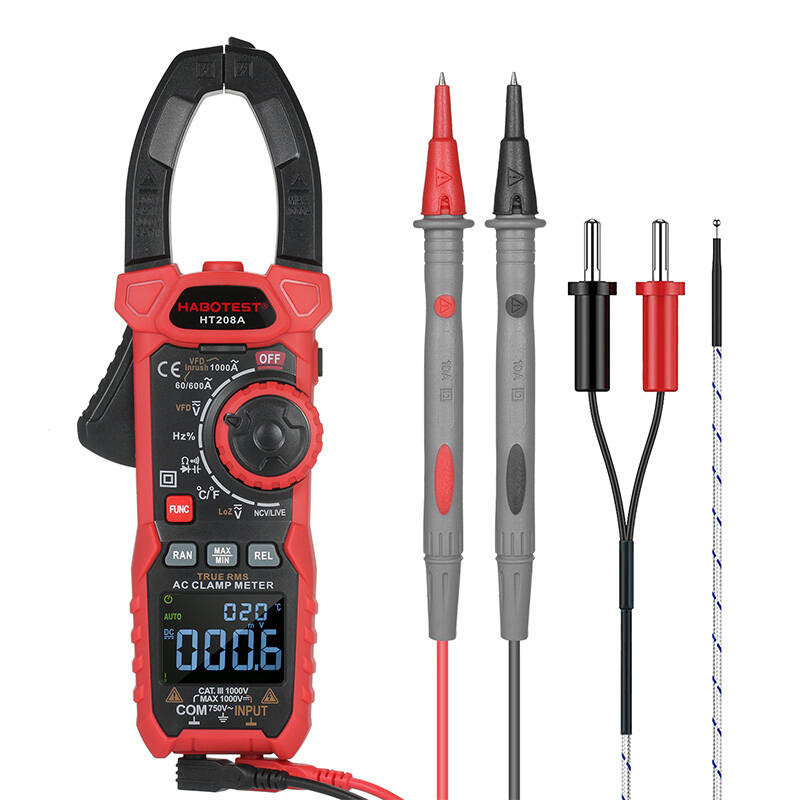

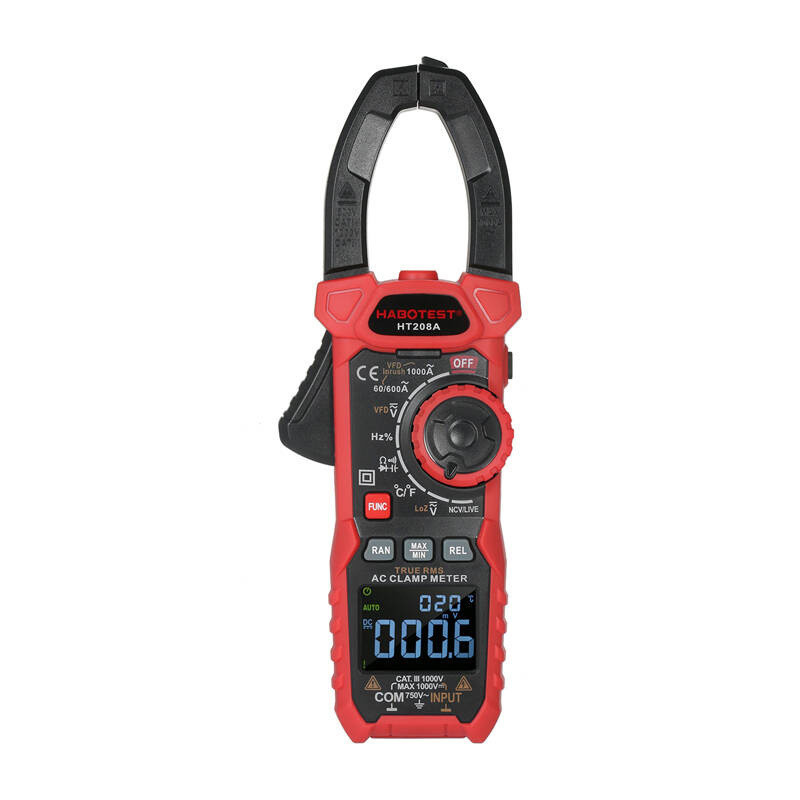

Habotest HT208D
Digital clamp meter for measuring AC and DC voltage and current, resistance, capacitance, frequency, temperature and circuit continuity. It features True RMS function, NCV detection, 6000 count display, 44 mm clamps, flashlight, data hold and auto shut-off.
- Multifunctional digital clamp meter for measuring AC and DC voltage and current, resistance, capacitance, frequency, temperature and other quantities
- Measures AC and DC current up to 1000 A; True RMS ensures reliable readings on non-linear loads
- 6000 count LCD display, NCV detection with audible and visual alerts, circuit continuity and diode testing, and V-LoZ mode
- 44 mm pliers, built-in flashlight, two-color backlight, data capture, MAX/MIN value recording and automatic shut-off
Product information | |
|---|---|
| Product type | Digital caliper |
| Brand | Habotest |
| Model | HT208D |
| Screen | 6000 count LCD display with two-color backlight |
| Pliers hole | 44 mm |
Measurement specifications | |
| Constant voltage | 6V / 60V / 600V / 1000V; accuracy ±(1.0% + 3) |
| Alternating voltage | 6V / 60V / 600V / 750V; accuracy ±(1.2% + 3) |
| Direct current | 60 A / 600 A / 1000 A; accuracy ±(2.5 % + 5) |
| Alternating current | 60 A / 600 A / 1000 A; accuracy ±(3.0 % + 5) |
| Resistance | 600 Ω to 60 MΩ; accuracy ±(1.0% + 3) |
| Capacity | 10 nF to 100 mF; accuracy ±(4.0% + 3) or ±(5.0% + 5), depending on range |
| Frequency | 10 Hz to 10 MHz; accuracy ±(1.0% + 3) |
| Duty cycle | 1-99%; accuracy ±(1.0% + 2) |
| Temperature | From −40 °C to 1000 °C; accuracy ±(1.0 % + 3) |
Features | |
| Measurement modes | Automatic and manual range selection, True RMS and V-LoZ |
| Verification functions | Circuit integrity testing with LED indicator and audible signal, diode testing and non-contact voltage detection |
| Additional features | Low-pass filter, MAX/MIN recording, data logging, low battery indicator, flashlight and automatic shut-off after 15 minutes of inactivity |
| NCV warnings | Audible and visual warnings; screen color changes when high voltage or current is detected |
Construction and power supply | |
| Power source | 2 × AA batteries |
| Dimensions | 240 × 85 × 40mm |
| Weight | About 380g |
| Safety class | EN 61010-1, EN 61010-2-030, EN 61010-2-033 and EN 61326-1; CAT III 1000 V / CAT IV 600 V |
Safety warning | |
| Warning | Use the clamp meter only for its intended purpose - for the specified electrical measurement functions. Follow the operating instructions, select the correct measurement mode and range, do not exceed the limits of CAT III 1000 V / CAT IV 600 V. Before use, check the meter and test leads, keep your fingers behind the protective supports and never use damaged equipment or change connections when measuring live circuits. |
| Height | 100mm |
| Length | 300mm |
| Weight | 570g |
| Width | 150mm |
