Clamp Current Clamp - UNI-T UT202BT Smart Bluetooth AC/DC 600A Clamp Current Clamp, Red and Gray
Product reference: 14-6935750521243

UNI-T UT202BT - red and gray smart clamp multimeter for measuring AC and DC voltage up to 600 V, AC current up to 600 A, resistance, capacitance, temperature and frequency. It features True RMS, Bluetooth, automatic measuring range selection, non-contact voltage detection (NCV), 28 mm jaw opening and illuminated display.

Apkabinės srovės replės - UNI-T UT202BT Išmaniosios "Bluetooth" Kintamosios / Nuolatinės Srovės 600 A Apkabinė
Apkabinės srovės replės - UNI-T UT202BT Išmaniosios "Bluetooth" Kintamosios / Nuolatinės Srovės 600 A Apkabinė
Apkabinės srovės replės - UNI-T UT202BT Išmaniosios "Bluetooth" Kintamosios / Nuolatinės Srovės 600 A Apkabinė
Apkabinės srovės replės - UNI-T UT202BT Išmaniosios "Bluetooth" Kintamosios / Nuolatinės Srovės 600 A Apkabinė
Apkabinės srovės replės - UNI-T UT202BT Išmaniosios "Bluetooth" Kintamosios / Nuolatinės Srovės 600 A Apkabinė
Apkabinės srovės replės - UNI-T UT202BT Išmaniosios "Bluetooth" Kintamosios / Nuolatinės Srovės 600 A Apkabinė

Clamp Current Clamp - UNI-T UT202BT Smart Bluetooth AC/DC 600A Clamp Current Clamp, Red and Gray

Product reference: 14-6935750521243

UNI-T UT202BT - red and gray smart clamp multimeter for measuring AC and DC voltage up to 600 V, AC current up to 600 A, resistance, capacitance, temperature and frequency. It features True RMS, Bluetooth, automatic measuring range selection, non-contact voltage detection (NCV), 28 mm jaw opening and illuminated display.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
65,53 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

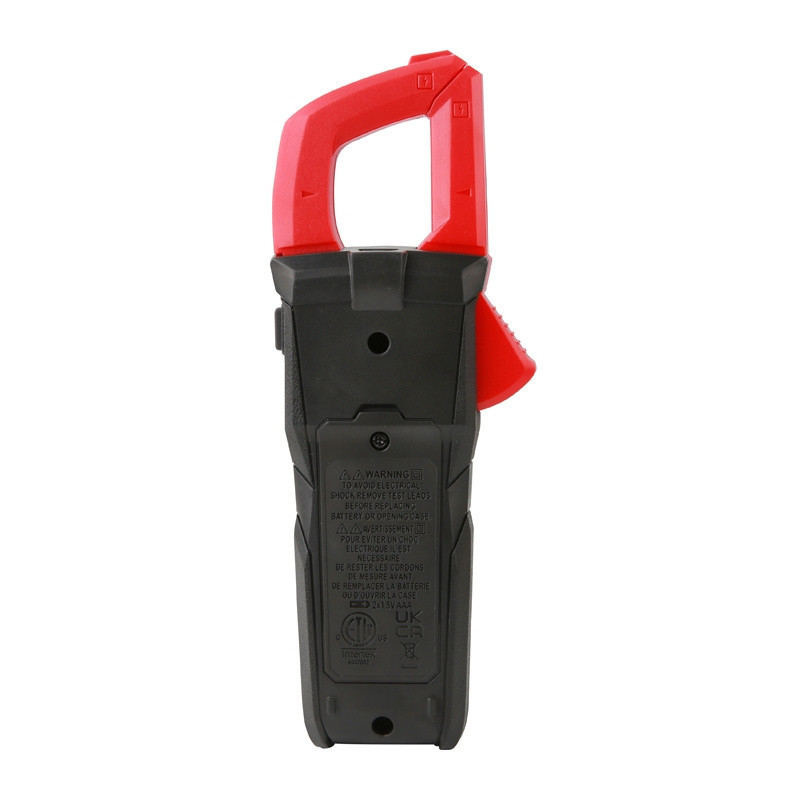

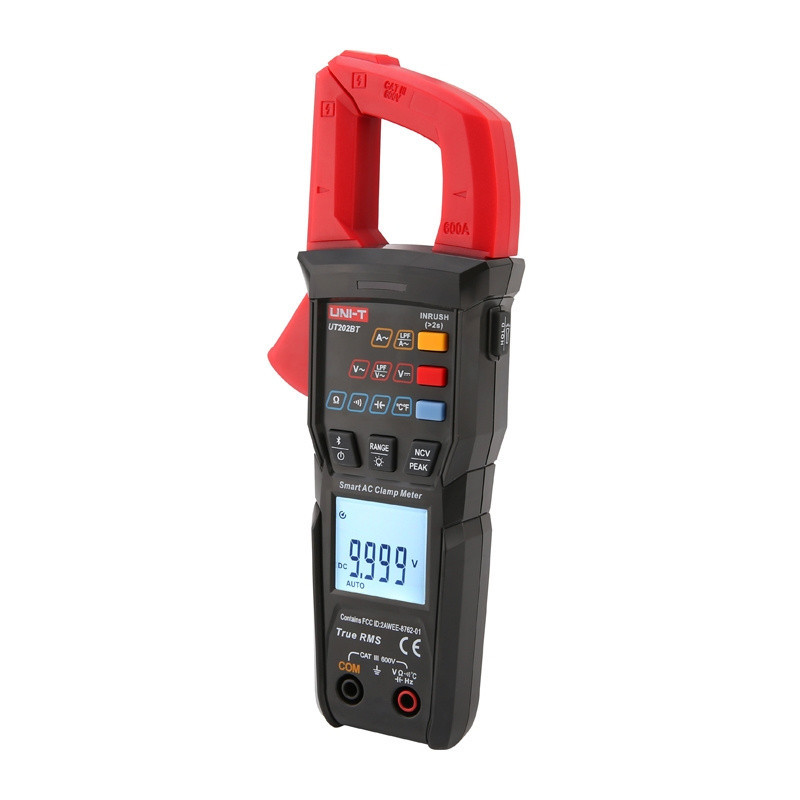

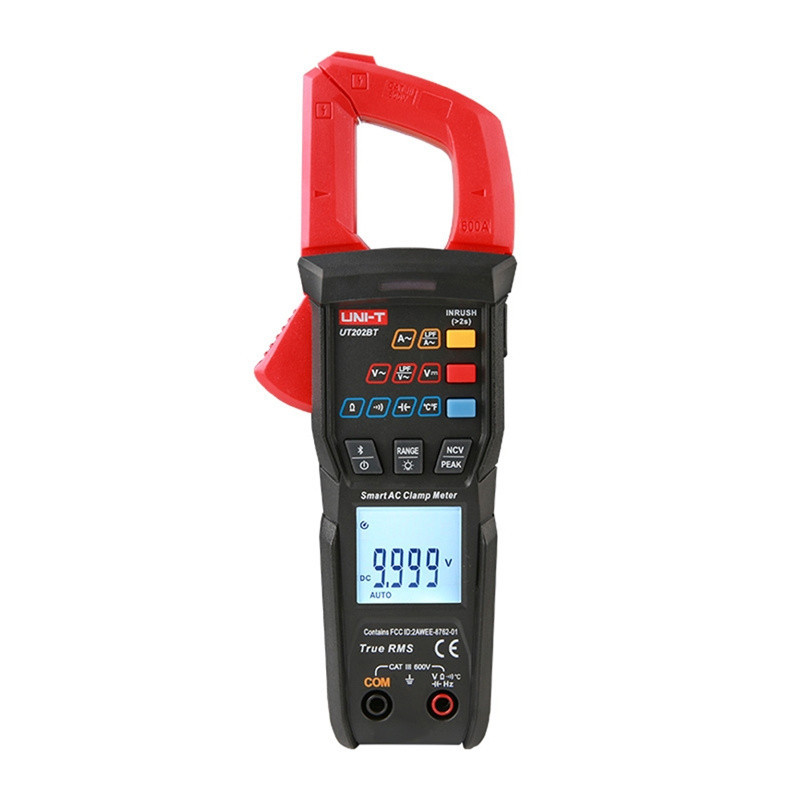

UNI-T UT202BT smart clamp meter


UNI-T UT202BT - red and gray smart clamp meter for measuring AC and DC voltage up to 600 V, AC current up to 600 A, resistance, capacitance, temperature and frequency. It features True RMS function, Bluetooth connection, automatic measurement range selection, NCV detection, 28 mm clamp mouth and illuminated display.


  • Smart clamp-on current meter for quick and non-contact current measurement; clamp mouth width - 28 mm.
  • Measures up to 600 A AC current, up to 600 V AC and DC voltage, resistance, capacitance, temperature and frequency.
  • True RMS, auto-ranging, inrush current detection, Peak Hold, Data Hold, circuit integrity and diode testing for reliable diagnostics.
  • Bluetooth connectivity, NCV detection, illuminated LCD display, built-in flashlight and CAT II 600 V / CAT III 300 V safety rating.

Product information

Product type Smart clamp meter
Brand UNI-T
Model UT202BT
Color Red and gray
201 × 63.5 × 35mm
Weight 248 g

Measurement specifications

Alternating current Up to 600 A; accuracy ±(2 % + 5)
Alternating voltage Up to 600 V; accuracy ±(0.8% + 5)
Constant voltage Up to 600 V; accuracy ±(0.5% + 2)
Resistance Up to 60 MΩ; accuracy ±(0.8% + 2)
Capacity Up to 100 mF; accuracy ±(4 % + 5)
Temperature −40 °C to 1000 °C (−40 °F to 1832 °F); accuracy ±(1.5 % + 5)
Alternating current frequency 50-60 Hz; accuracy ±(1 % + 5)
Maximum display value 6000 divisions
Pliers jaw width 28 mm
Screen size 37 × 25 mm

Features and connectivity

Measurement technology True RMS
Range selection Automatic
Connection Bluetooth
Additional features Non-contact voltage detection, diode test, circuit continuity test, inrush current detection, Peak Hold, Data Hold, low-pass filter, dual V+Hz and A+Hz readings, auto power off, low battery indicator, LCD backlight and built-in flashlight

Power and safety

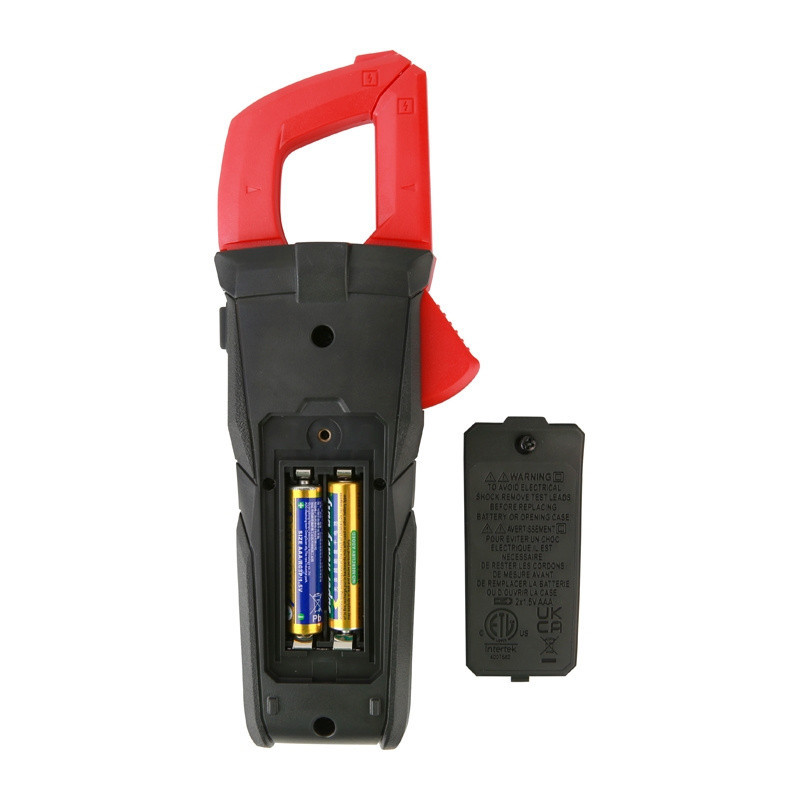

Power source 2 × 1.5V AAA batteries
Safety category CAT II 600V / CAT III 300V
Certificates CE, UKCA, cETLus
Safety warning For electrical measurements only. Follow the operating instructions and the CAT II 600 V / CAT III 300 V limits. Use appropriate personal protective equipment, do not exceed the rated input values, and never measure resistance, capacitance, temperature, circuit continuity, or diodes on live circuits.

Included accessories

Complete set Clamp meter, test leads, thermocouple, 2 AAA batteries and user manual
