Clamps - Habotest HT206A Digital 600 A True RMS Clamps 26 mm, 4,000 Divisions, CAT III 600 V
Product reference: 14-5907489606646

" Habotest HT206A" digital clamp meter measures up to 600 A AC current, AC and DC voltage, resistance, capacitance, circuit continuity and diodes, and also provides accurate "True RMS" readings. 26 mm mouth, 4,000-division illuminated display, flashlight, data capture, maximum and minimum value recording and CAT III 600 V safety class ensure convenient and safe operation.

Apkabas - Habotest HT206A Skaitmeninės 600 A Tikrosios RMS Apkabos 26 mm, 4 000 Padalų, CAT III 600 V
Apkabas - Habotest HT206A Skaitmeninės 600 A Tikrosios RMS Apkabos 26 mm, 4 000 Padalų, CAT III 600 V
Apkabas - Habotest HT206A Skaitmeninės 600 A Tikrosios RMS Apkabos 26 mm, 4 000 Padalų, CAT III 600 V
Apkabas - Habotest HT206A Skaitmeninės 600 A Tikrosios RMS Apkabos 26 mm, 4 000 Padalų, CAT III 600 V
Apkabas - Habotest HT206A Skaitmeninės 600 A Tikrosios RMS Apkabos 26 mm, 4 000 Padalų, CAT III 600 V

Clamps - Habotest HT206A Digital 600 A True RMS Clamps 26 mm, 4,000 Divisions, CAT III 600 V

Product reference: 14-5907489606646

" Habotest HT206A" digital clamp meter measures up to 600 A AC current, AC and DC voltage, resistance, capacitance, circuit continuity and diodes, and also provides accurate "True RMS" readings. 26 mm mouth, 4,000-division illuminated display, flashlight, data capture, maximum and minimum value recording and CAT III 600 V safety class ensure convenient and safe operation.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
35,53 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*
Not available

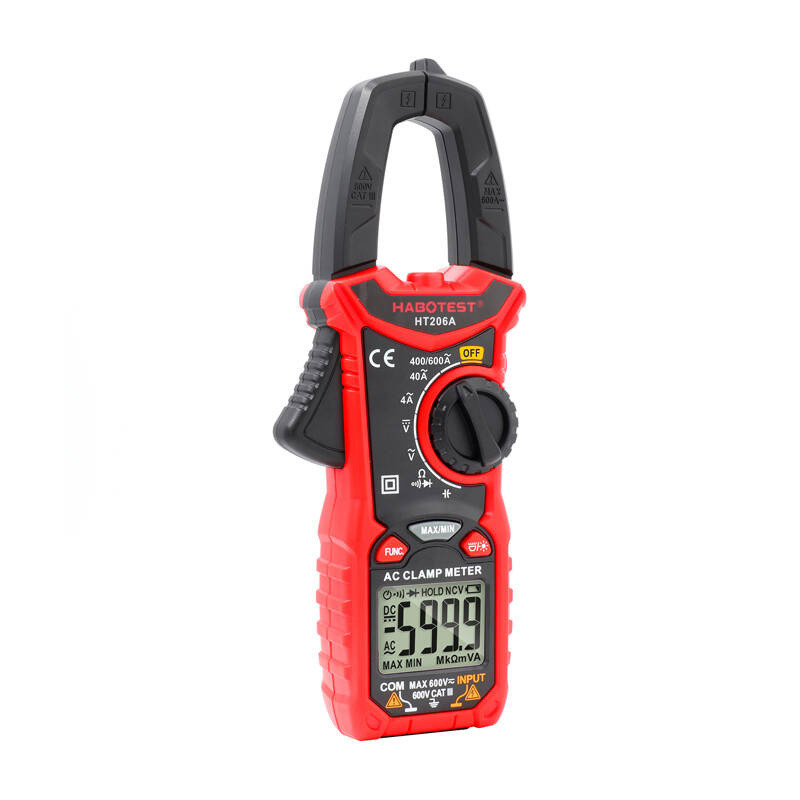

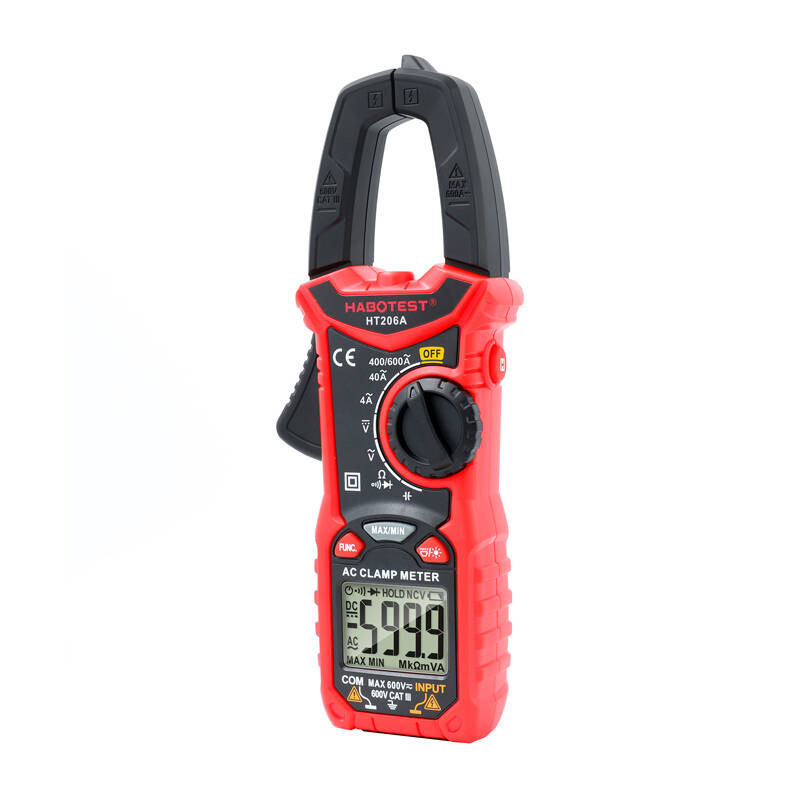

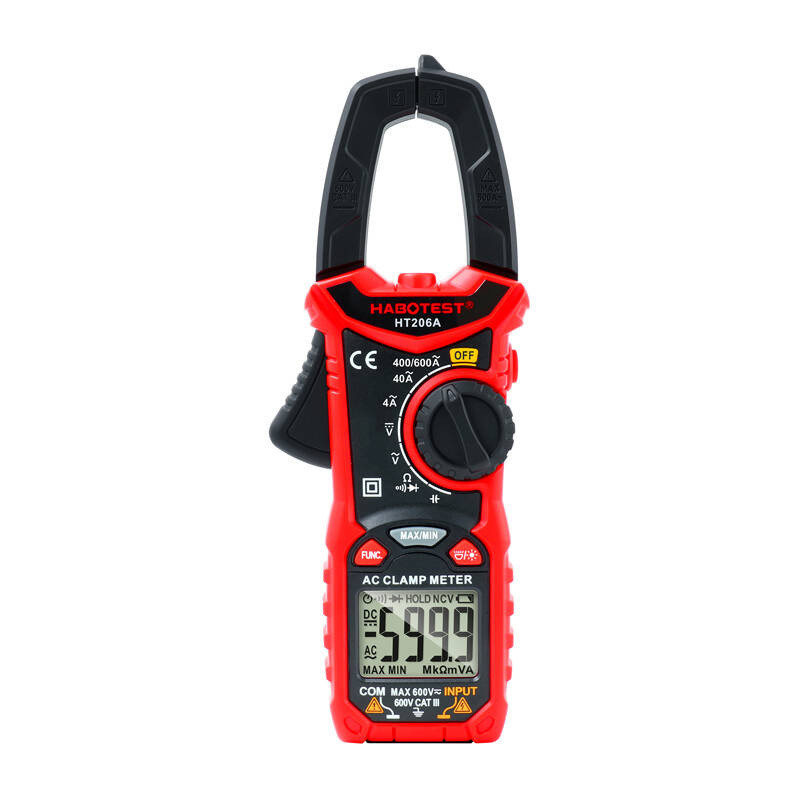

Habotest HT206A digital current meter with clamps


Habotest HT206A digital clamp meter measures up to 600 A of AC current, AC and DC voltage, resistance, capacitance, circuit continuity, diode testing, and True RMS measurements. It features a 26 mm clamp opening, a 4000-count backlit display, a flashlight, data logging, MAX/MIN value recording, and CAT III 600 V safety rating.


  • Digital ammeter with clamps, designed to measure up to 600 A alternating current, up to 600 V alternating and direct voltage, resistance, capacitance and other parameters.
  • True RMS measurement ensures reliable readings, while automatic ranging and 4000-division resolution make work easier.
  • Equipped with circuit integrity and diode testing, data capture, MAX/MIN value recording functions, and a two-color backlit LCD display.
  • 26 mm measuring pliers, built-in flashlight, low battery indicator and CAT III 600 V safety rating for convenient everyday electrical work.

Product information

Product type Digital current meter with clamps
Brand Habotest
Model HT206A
Screen 4000-count LCD display with two-color backlight
Pliers hole 26 mm

Measurement specifications

DC voltage range 400 mV / 4 V / 40 V / 400 V / 600 V; accuracy ±(0.5% + 5)
AC voltage range 4V / 40V / 400V / 600V; accuracy ±(1.0% + 5)
AC range 4 A / 40 A / 600 A; accuracy ±(2.5 % + 8)
Direct current measurement Not supported
Resistance range 400 Ω / 4 kΩ / 40 kΩ / 400 kΩ / 4 MΩ / 40 MΩ; accuracy ±(1.0% + 5)
Capacity range 4 nF / 40 nF / 400 nF / 4 μF / 40 μF / 400 μF / 4 mF; accuracy ±(4.0% + 5)
Measurement method True RMS
Range selection Automatic

Features

Checking the integrity of the circuit Yes, with audible and visual warning
Diode testing Yes
Data capture Yes
Recording MAX/MIN values Yes
Flashlight Built-in
Low battery indicator Yes
Automatic shutdown Yes
Non-contact voltage detection No

Construction and power supply

Power source 2 × AAA 1.5V batteries
Dimensions 193 × 73 × 34mm
Weight About 260g
Safety class CAT III 600V
Applicable standards EN 61010-1, EN 61010-2-030, EN 61010-2-033 and EN 61326-1

Safety warning

Warning Use only for electrical measurements within the specified ranges and within the limits of the CAT III 600 V safety class. Do not measure current or voltage beyond the limits of the meter. Inspect the meter and test leads before use, keep fingers behind protective covers, and follow proper electrical safety procedures. This device is not a substitute for the insulation of hazardous circuits.

Height60mm
Length250mm
Weight390 g
Width100mm
