Caliper Gauge - UNI-T UT256, Red And Gray
Product reference: 14-6935750525630

UNI-T UT256 - red and gray True RMS current clamp meter for measuring AC and DC current up to 60 A. 10 mm mouth, non-contact voltage detection, illuminated display, data hold function and CAT III 600 V protection ensure convenient and safe operation.

Apkaba Matuoklis - UNI-T UT256, Raudonas Ir Pilkas
Apkaba Matuoklis - UNI-T UT256, Raudonas Ir Pilkas
Apkaba Matuoklis - UNI-T UT256, Raudonas Ir Pilkas
Apkaba Matuoklis - UNI-T UT256, Raudonas Ir Pilkas
Apkaba Matuoklis - UNI-T UT256, Raudonas Ir Pilkas

Caliper Gauge - UNI-T UT256, Red And Gray

Product reference: 14-6935750525630

UNI-T UT256 - red and gray True RMS current clamp meter for measuring AC and DC current up to 60 A. 10 mm mouth, non-contact voltage detection, illuminated display, data hold function and CAT III 600 V protection ensure convenient and safe operation.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
49,05 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

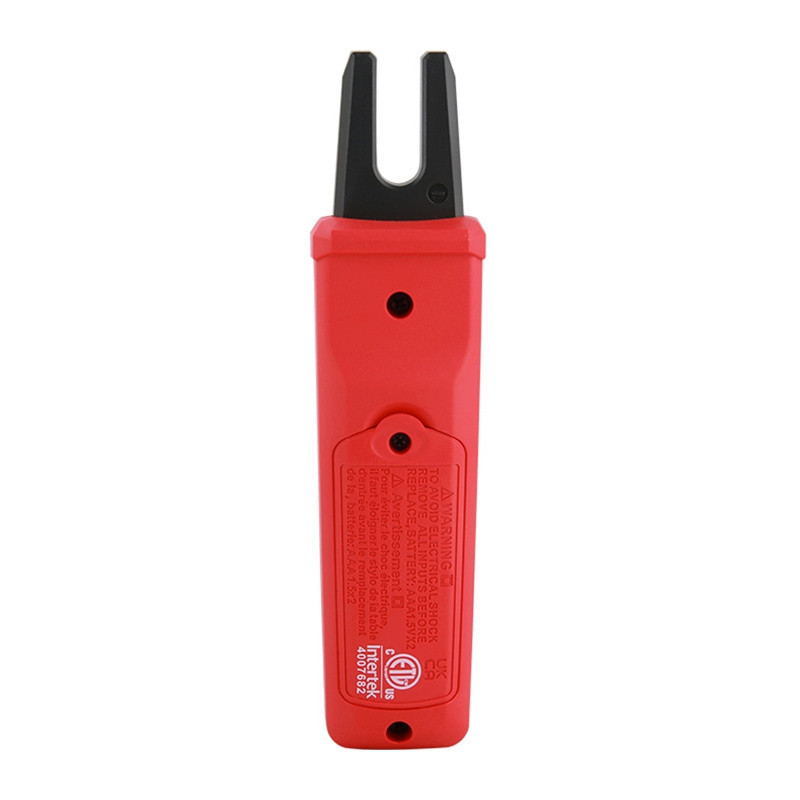

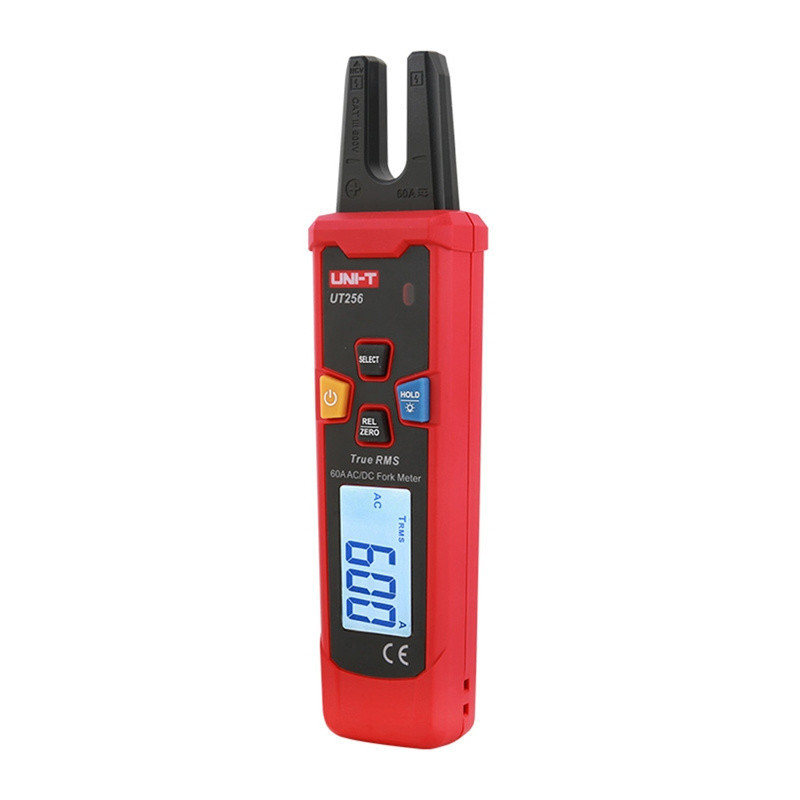

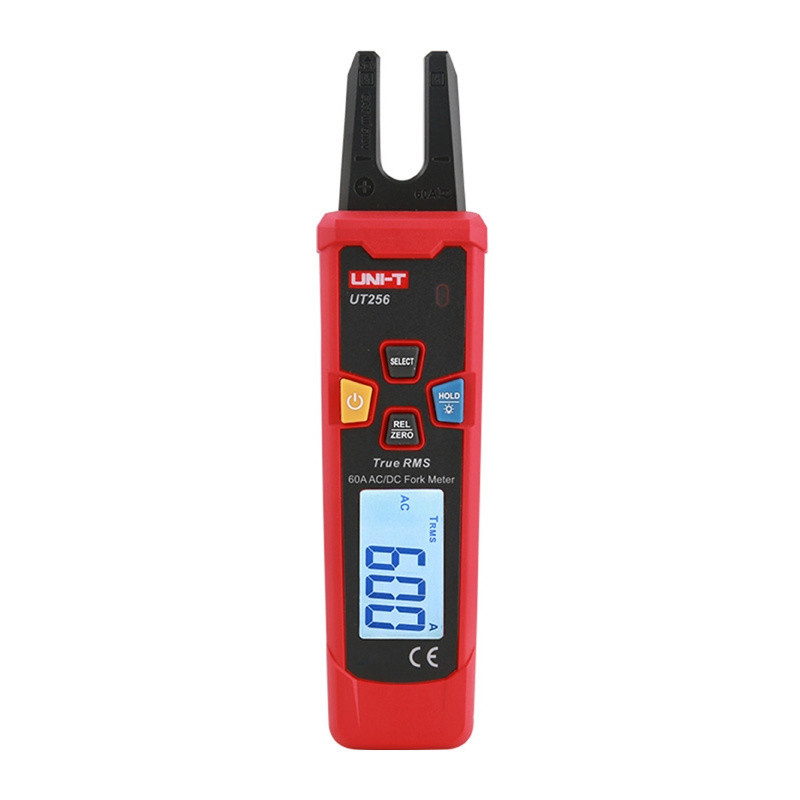

UNI-T UT256 current clamp, red and gray


UNI-T UT256 - red and gray True RMS current clamp meter for measuring AC and DC current up to 60 A. The device has a 10 mm jaw opening, NCV detection function, illuminated display, data capture function and CAT III 600 V protection.


  • True RMS current clamps that allow you to conveniently measure up to 60 A of AC and DC current without disconnecting the circuit
  • Compact body with narrow 10 mm jaw opening, suitable for working in tight panel spaces and hard-to-reach areas
  • Built-in NCV sensor with audible and visual warnings for safer non-contact voltage testing
  • Backlit display, data hold, relative measurement and zeroing functions for clear and convenient on-site measurements

Product information

Product type Digital True RMS Current Clamp Meters
Brand UNI-T
Model UT256
Color Red and gray

Technical specifications

AC range Up to 60 A, ±(2% + 5)
DC range Up to 60 A, ±(2% + 5)
Gill opening 10 mm
Measurement category CAT III 600V
Screen Autoranging display with backlight
Power source 2 × 1.5V AAA batteries
Dimensions 171 × 42 × 28mm
Weight 120 g

Features

Measurement and convenience features
  • Non-contact voltage detection (NCV)
  • Data capture
  • Relative metering mode
  • Zero setting mode
  • Low battery indicator
  • Automatic shutdown
Warnings Audible and visual NCV detection alerts

Included accessories

The set includes:
  • Current clamps
  • Measuring leads
  • 2 AAA batteries
  • Strap
  • Carrying case
  • User manual

Safety warning

Important safety information Use the current clamp only for measurements within the specified ranges and CAT III 600 V category. Follow the user manual, check the clamp and test leads before use, do not touch exposed conductors and do not use damaged equipment. Measurements of electrical circuits must be performed by a suitably qualified person.

Height100mm
Length250mm
Weight180 g
Width80mm
