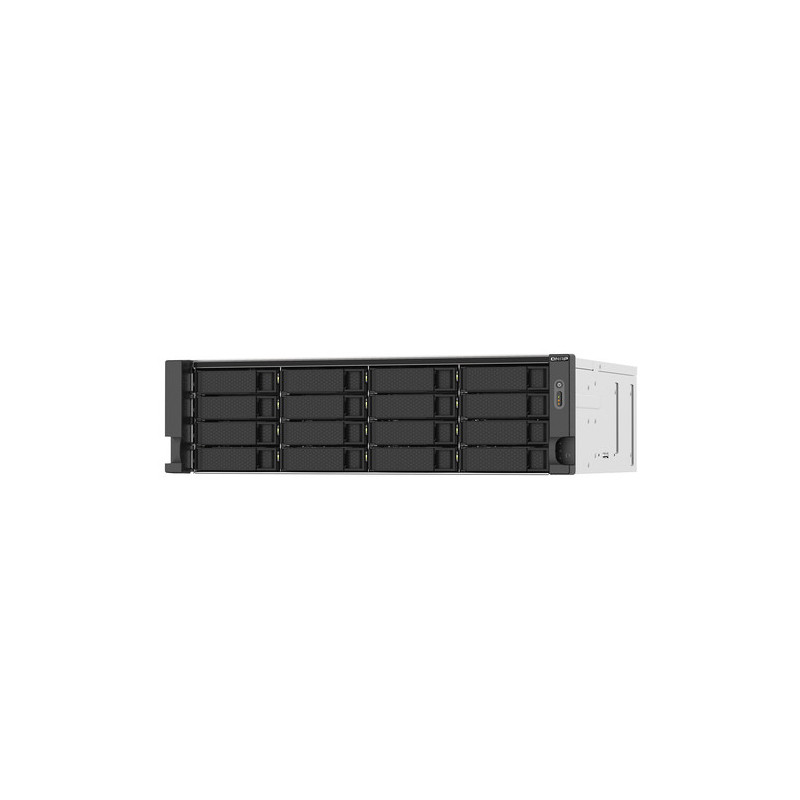

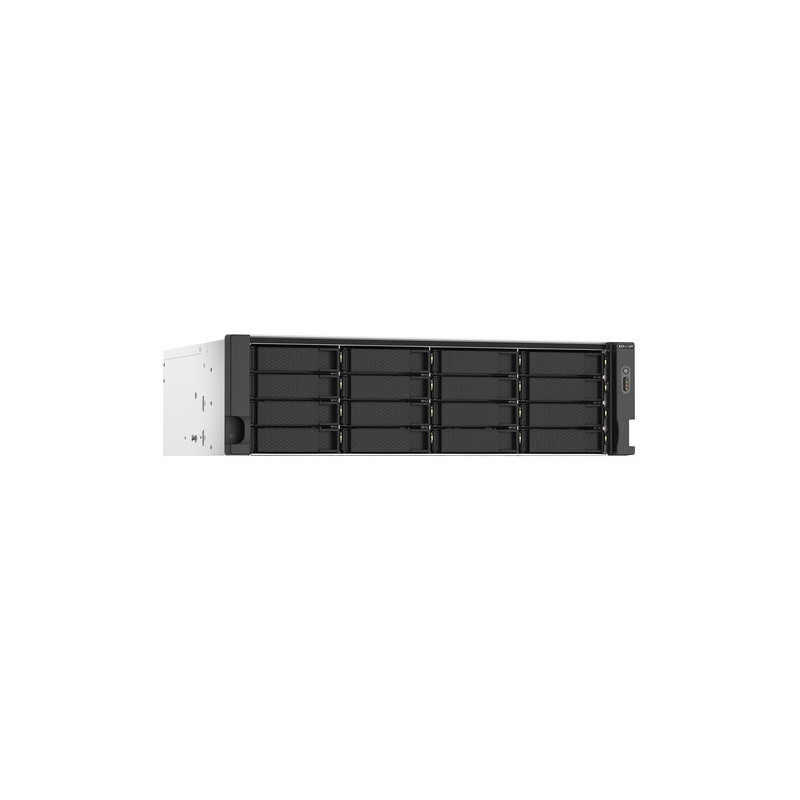

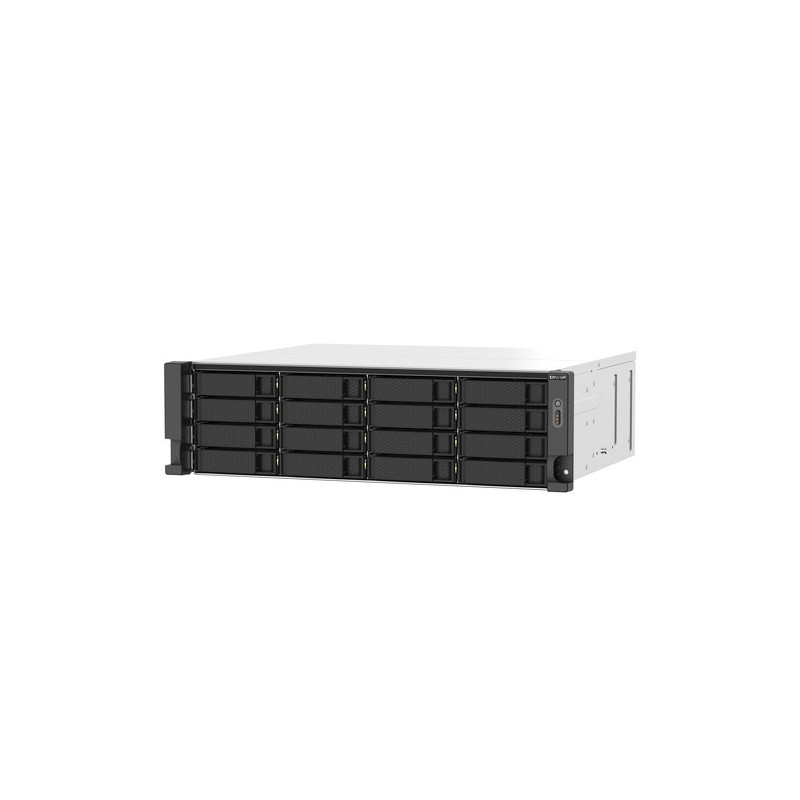

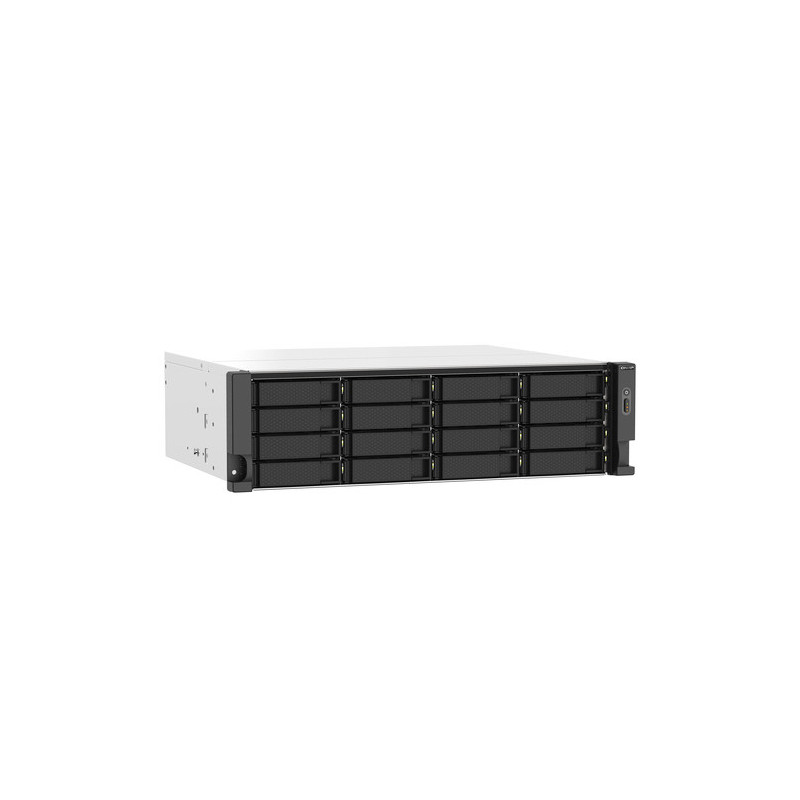

TS-1673AU-RP-16G 16x0HDD 2.2GHz 16GB UDIMM DDR4

https://www.svethardware.cz/recenze-qnap-quts-hero-5-0-0-profi-system-pro-nasy/58189 B TS-1673AU-RP
High performance NAS device with dual connection 2,5GbE has a four-core processor AMD Ryzen™ and supports PCIe expansion for virtual applications o 10GbE or M.2 SSD cache.
Link to the manufacturer's website: https://www.qnap.com/cs-cz/product/ts-1673au-rp
Zoznam kompatibilty pre tento model: https://www.qnap.com/cs-cz/compatibility/?model=470
Functions
Thanks to the powerful four-core processor AMD Ryzen™ V1000 series V1500B is a device TS-1673AU-RP capable of increasing the performance of a virtual computer with up to 4 jadrami/8 threads at 2.2 GHz. The device TS-1673AU-RP contains two ports 2,5GbE and two PCIe Gen 3 slots, which ensure fast connection to the network and the option to add other functions to expand application potential. TS-1673AU-RP also supports a redundant power supply, which provides maximum power for continuous operation of the system. Thanks to high-end hardware integrated with complex software solutions, the TS-1673AU-RP model is an excellent choice for those who have resource-intensive applications. OBSAH BALENIAB
*TS-1673AU-RP
*Ethernetový kábel x 1
*Power cable x 2
*Screws with flat head (pre 3.5" HDD) x 64
*Skrutky s flat head (pre 2.5" HDD) x 48
*Quick installation (QIG)
SPECIFIKÁCIE
CPU
*Štvorjadrový procesor AMD Ryzen™ Embedded V1500B 2.2 GHz
Architektúra CPU
*x86 64-bitová
Šifrovací modul
*Áno (AES-NI)
Hardvérovo accelerované prekódovanie
*Volítívé ona graphic card PCIe
Systémová memory
*16 GB UDIMM DDR4 (1 x 16 GB)
Maximálna memory
*64 GB (2 x 32 GB)
Slot for memory
*2 x Long-DIMM DDR4
*In the case of a configuration with two DIMM modules, it is necessary to use a pair of identical modules DDR4.
Flash memory
*5 GB (double OS protection at startup)
Position for disk drives
*16 x 3.5" SATA 6 Gb/s, 3 Gb/s
*The system is delivered without HDD.
Kompatibilita diskových jednotiek
*3.5" SATA hard disk
*2.5" SATA fixed disky
*2.5" SATA SSD
Vyměnitelne za travát
*Áno
Slot pre M.2 SSD
*Optional on card QNAP QM2 PCIe
Podpora akselerácie SSD cache
*Áno
2.5 gigabit ethernet port (2,5G/1G/100M)
*2
5-gigabitový ethernetový port (5G/2,5G/1G/100M)
*Optional via network adapter
10-gigabitový ethernetový port_
*Volítívé óra nešitového adapter
Jumbo rámec
*Áno
Slot PCIe
*2 x Gen3 x4
Port USB 3.2 Gen 1
*1 x Typ A
Port USB 3.2 Gen 2 (10 Gb/s)
*2 x Typ C
*1 x Typ A
B Output HDMIB
*Optional via graphic card PCIe
B FormátB
*3U s montážou do racku
B LED indicatoryB
*HDD 1-16, stav, LAN, USB, power supply
Tlakidlá
*Napájanie, reset
Dimensions (H x W x H)
*132 × 482 × 425 mm
Weight (clean)
*12 kg
Hmotnosť (celková)
*17.15 kg
Prevádzková templácia
*0 - 40 °C (32 °F - 104 °F)
B Relative humidityB
*Relativna humidity 5 to 95%, without condensation, temperature of the humidity thermometer: 27 °C (80.6 °F)
B Napájací zdrojB
*550 W (x 2) PSU, 100-240 V
B Spotreba energie: Prevádzkový režim, typickáB
*47.75 W
B
*97.34 W
B VentilátorB
*3 x 80 mm, 12 V DC
B HlucnosťB
*23~47.9 dB(A)
Prepínajte operating systems for optimal integrity and reliability of data - TS-1673AU-RP-16G also supports QuTS hero - operating system NAS based on ZFS from company QNAP. Provides end-to-end data integrity, data reduction (inline data deduplication, compression and compression) and much more. QuTS hero uses other system resources to ensure an optimal environment for protecting commercial data. B
