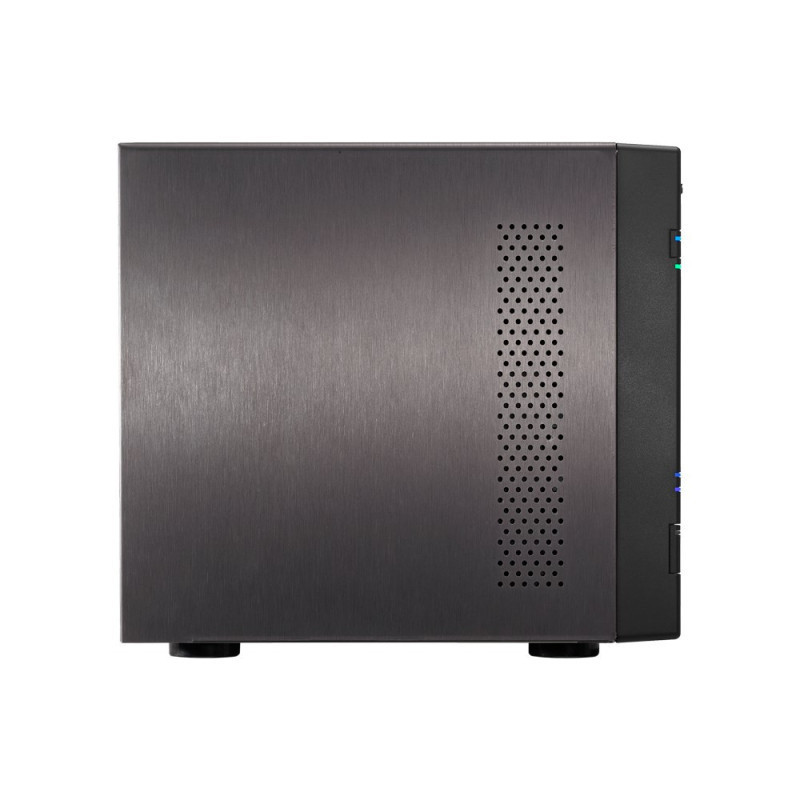

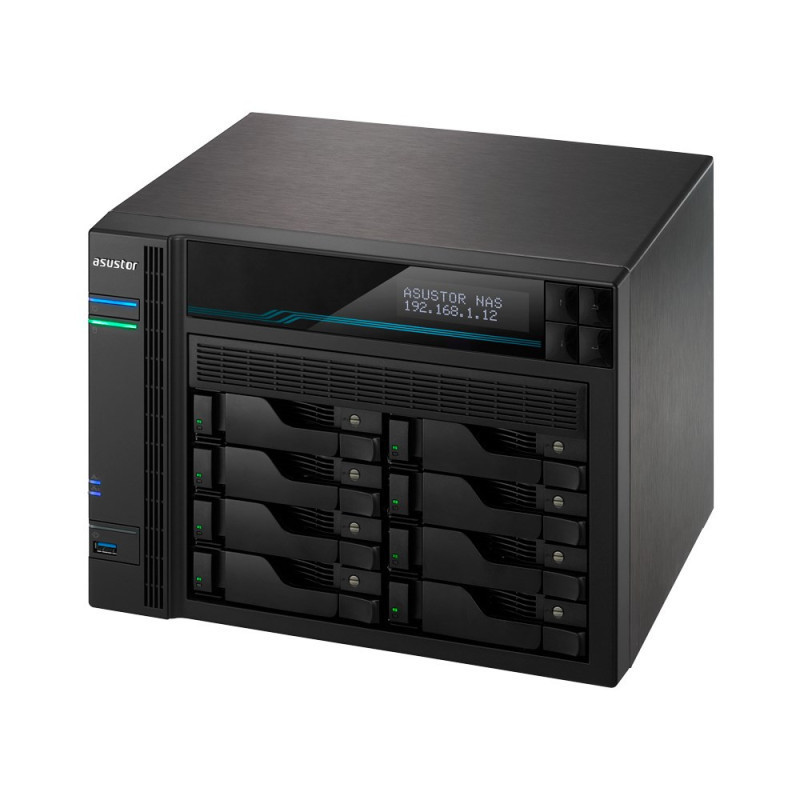

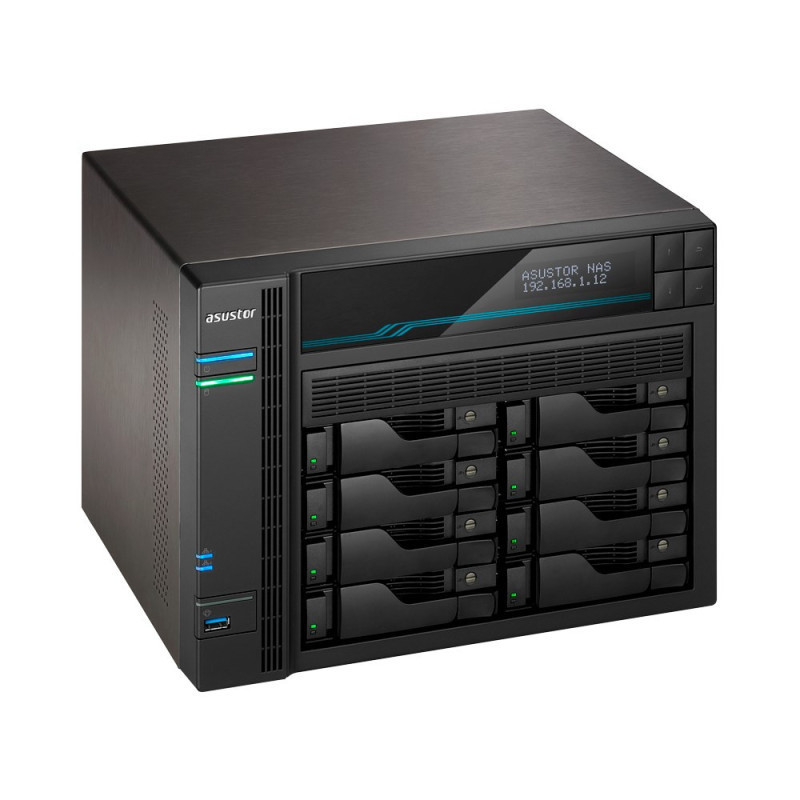

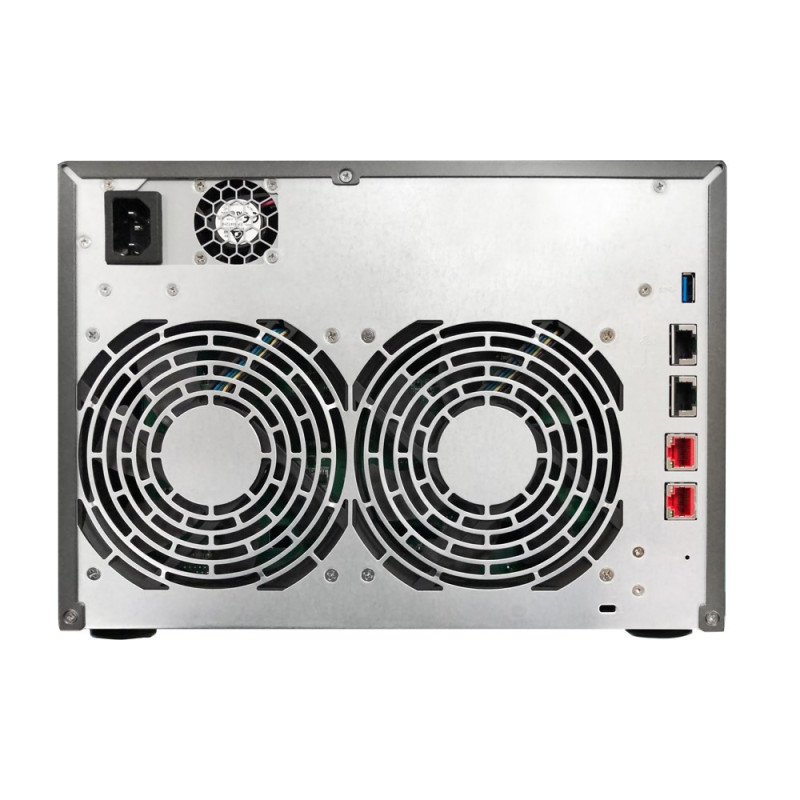

Asustor Lockerstor 10 (AS6510T) file server
Product reference:
3-4710474831227
Asustor Lockerstor 10 (AS6510T) file server
Asustor Lockerstor 10 (AS6510T) file server
Product reference:
3-4710474831227
Asustor Lockerstor 10 (AS6510T) file server
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
24 month
Delivery from Lithuania in
3 - 8
business days
| Processor | |
|---|---|
| PCI Express slot version | 3.0 |
| Processor code | SR3L7 |
| Processor lithography | 14 nm |
| CPU configuration (max) | 1 |
| Processor codename | Denverton |
| Processor package size | 34 x 28 mm |
| Stepping | B1 |
| Processor model | C3538 |
| Processor threads | 4 |
| Tcase | 87 °C |
| Processor socket | BGA 1310 |
| Processor operating mode | 64-bit |
| Tjunction | 100°C |
| Thermal Design Power (TDP) | 15W |
| Processor frequency | 2.1 GHz |
| Conflict-Free processor | Yes |
| Processor cache type | Smart Cache |
| Processor manufacturer | Intel |
| Processor cache | 8MB |
| Maximum internal memory supported by the processor | 256GB |
| Processor cores | 4 |
| Processor family | Intel Atom® |
| Memory | |
| Internal memory | 8GB |
| Internal memory type | DDR4 |
| Memory clock speed | 2133MHz |
| Flash memory | 4096MB |
| Memory slot | 2 |
| Maximum RAM supported | 64GB |
| Memory form factor | SO-DIMM |
| Design | |
| Product color | Black |
| Built-in display | Yes |
| Chassis type | Tower |
| Number of fans | 2 fans |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Display type | LCD |
| Power | |
| AC input voltage | 100 - 240V |
| Power supply location | Built-in |
| Power consumption (typical) | 76.8W |
| Power consumption (HDD standby) | 41.1W |
| Number of power supply units | 1 |
| Power supply unit (PSU) capacity | 250W |
| Redundant power supply (RPS) support | From |
| Operational conditions | |
| Operating temperature (TT) | 0 - 40 °C |
| Operating relative humidity (HH) | 5 - 95% |
| Weight dimensions | |
| Weight | 6.4 kg |
| Depth | 230mm |
| Height | 215.5 mm |
| Width | 293 mm |
| Network | |
| Wake-on-LAN ready | Yes |
| Ethernet LAN data rates | 10000 Mbit/s, 2500 Mbit/s, 1000, 100 |
| Ethernet LAN data rate supported (max) | 10000 Mbps |
| Ethernet LAN | Yes |
| iSCSI support | Yes |
| DHCP server | Yes |
| Dynamic DNS (DDNS) | Yes |
| WLAN adapter supported | Yes |
| Jumbo frame support | Yes |
| Load balancing system | Yes |
| Link aggregation | Yes |
| Performance | |
| Web-based management | Yes |
| Security algorithms | 256-bit AES, SSH, SSL/TLS, HTTPS |
| Reset button | Yes |
| Share folder access rights management | Yes |
| Disk scan | Yes |
| Number of users | 4096 users |
| Snapshot | Yes |
| Backup function | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Browser supported | Internet Explore 11+, FireFox, Chrome, Safari, Microsoft Edge |
| Type | NAS |
| Access Control List (ACL) | Yes |
| Backup features | Cloud, iSCSI LUN |
| Multilingual support | Yes |
| Built-in iTunes server | Yes |
| Noise level (idle) | 22 dB |
| System log | Yes |
| SMART support | Yes |
| Share folder | Windows ACLs |
| Device class | Home Home Office |
| Built-in UPnP AV media server | Yes |
| Packaging content | |
| Cables included | LAN (RJ-45), AC |
| Number of screws | 66 |
| Processor special features | |
| Intel® Turbo Boost Technology | From |
| Embedded options available | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | From |
| Intel Secure Boot | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Maximum number of PCI Express lanes | 12 |
| Execute Disable Bit | Yes |
| Intel Secure Boot Technology version | 1.00 |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Memory types supported by processor | DDR4-SDRAM |
| Intel QuickAssist Technology | Yes |
| Software | |
| Mac operating systems supported | Mac OS X 11.0 Big Sur, Mac OS X 10.9 Mavericks, Mac OS X 10.6 Snow Leopard, Mac OS X 10.8 Mountain Lion, Mac OS X 12.0 Monterey, Mac OS X 10.7 Lion |
| Operating system installed | ADM |
| Windows operating systems supported | Windows 8, Windows Vista, Windows 7, Windows XP, Windows 10 |
| Server operating systems supported | Windows Server 2012, Windows Server 2003, Windows Server 2008 |
| Linux operating systems supported | Yes |
| Operating system version | 3.4 |
| Other operating systems supported | Linux |
| Storage | |
| Supported storage drive interfaces | Serial ATA III |
| Supported storage drive types | HDD SSD |
| RAID support | Yes |
| Online RAID migration | Yes |
| Online RAID expansion | Yes |
| Number of M.2 (M B) slots | 2 |
| Storage drive sizes supported | 3.5", 2.5, M.2 |
| Installed storage drive type | From |
| RAID levels | 6, 0, JBOD, 1, 10, 5 |
| Number of storage drives supported | 10 |
| Storage drives installed | From |
| Total installed storage capacity | 0 TB |
| Bad block scan | Yes |
| Storage drive capacity | 0GB |
| Supported file systems | FAT32, HFS+, ext3, ext4, BTRFS, exFAT, NTFS |
| Ports interfaces | |
| Ethernet LAN (RJ-45) port | 4 |
| USB port | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A port quantity | 2 |
| Other features | |
| Certification | FCC, CE, VCCI, BSMI, C-TICK |
| Processor ARK ID | 97929 |
| Logistics data | |
| Harmonized System (HS) code | 84714100 |
