Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 4.0 16x, 2xM.2, 2xHD
Product reference: 2-4711387131435

Mainboard, ASUS, Intel B760 Express, LGA1700, Micro-ATX, Memory DDR5, Memory slots 4, 3xPCI-Express 4.0 16x, 2xM.2, 2xHD

Product reference: 2-4711387131435
You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
13702
Product in warehouse

Guarantee
36 month

Delivery from Lithuania in
3 - 5
business days

Your message has been successfully sent!
Fill in the required fields*

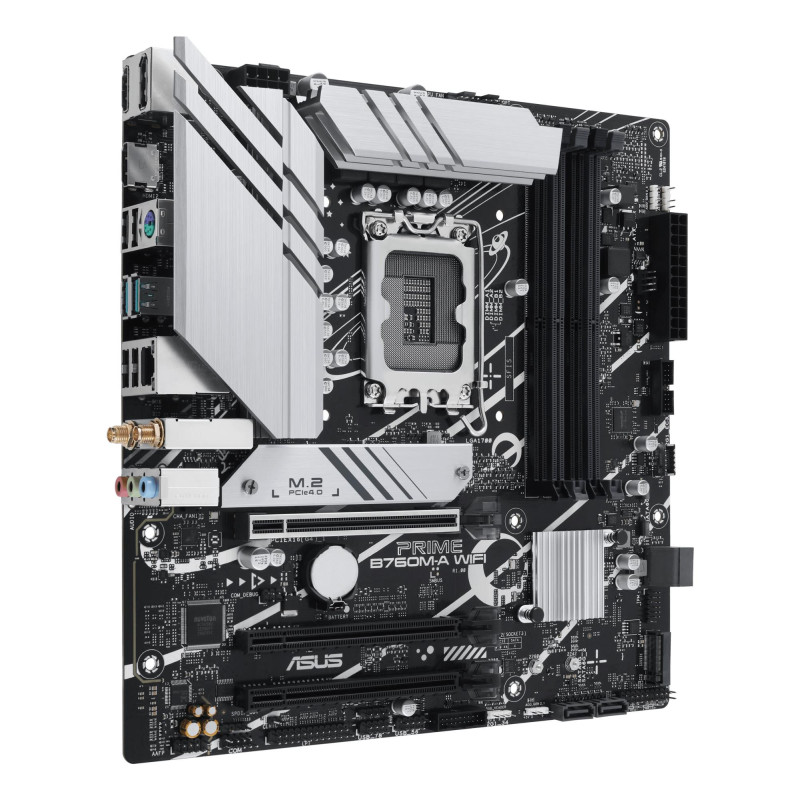

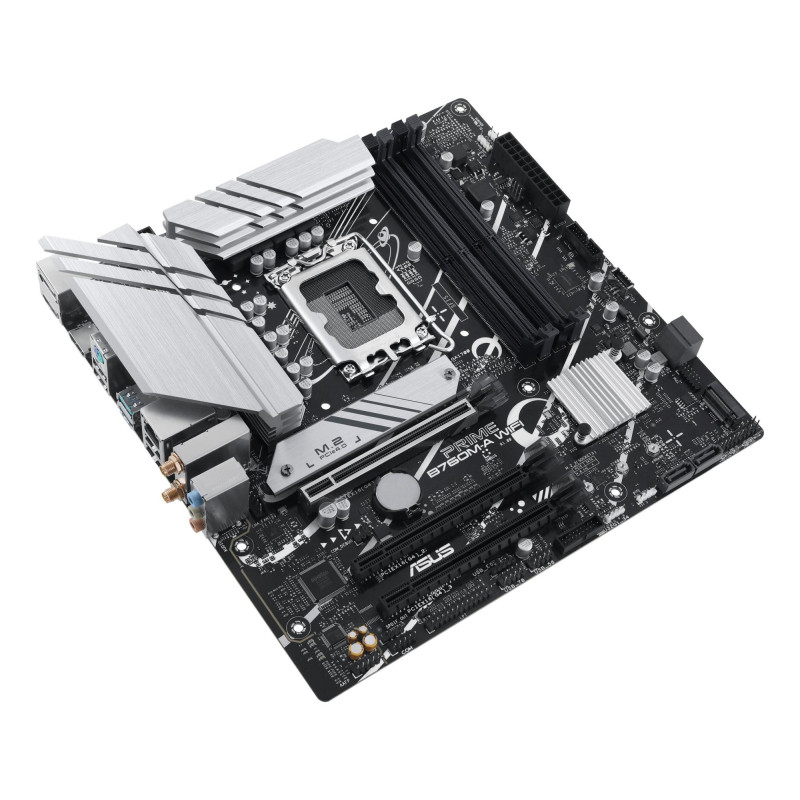

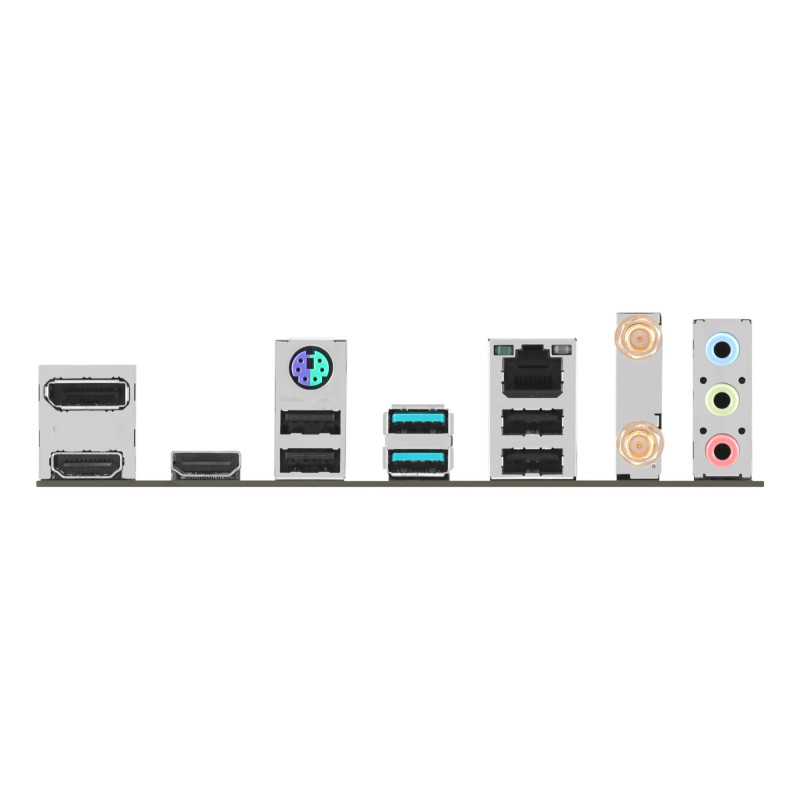

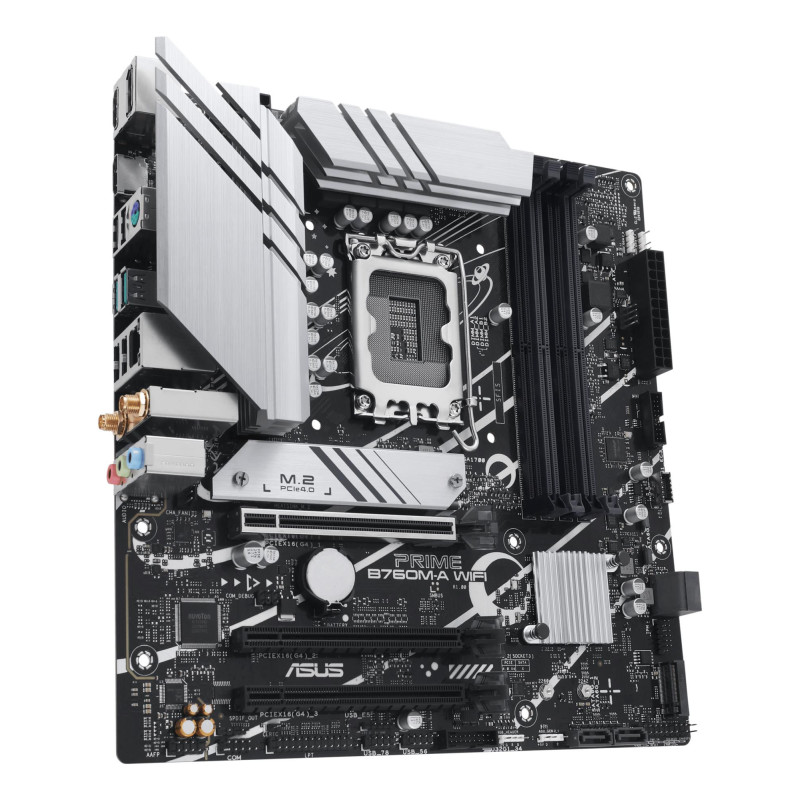

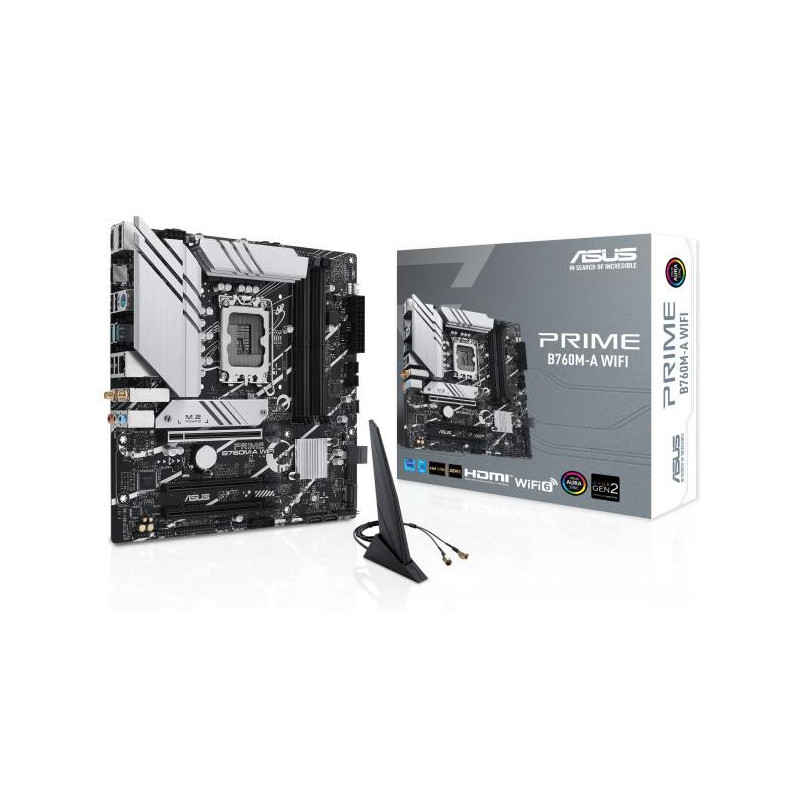

Intel® B760 (LGA 1700) mATX mortheboard with PCIe 4.0, DDR5, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, DisplayPort, Dual HDMI™, SATA 6 Gbps, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®, Aura Sync


  • Intel® LGA 1700 Socket: Ready for 13th and 12th Gen Intel® processors

  • Ultrafast Connectivity: PCIe 4.0, two M.2 slots, Realtek 2.5Gb Ethernet, Wi-Fi 6, rear USB 3.2 Gen 2, front USB 3.2 Gen 1 Type-C®

  • Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+

  • Exclusive Memory Technology: ASUS Enhanced Memory Profile II and ASUS OptiMem II

  • Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware



Vendor Homepage www.asus.com/motherboards-components/motherboards/prime/prime-b760m-a-wifi/
Unit Box Height 0.07
Unit Box Length 0.28
Unit Box Width 0.275
M.2 2
PCI-Express 4.0 16x 3
Audio port 3
DisplayPort 1
HDMI 2
PS/2 1
RJ45 1
USB 2.0 4
Yes
USB 3.2 2
Yes
Bluetooth Yes
SATA Yes
WiFi Yes
Model PRIME B760M-A WIFI
Chipset Intel B760 Express
Socket LGA1700
Form Factor Micro-ATX
Memory type DDR5
Frequency speed 4800/5000/5200/5400/5600/5800/6000/6200/6400/6600/6800/7000/7200 MHz
Memory slots 4
Integrated video Depending on CPU
Integrated LAN 2.5 Gigabit
Integrated audio Yes
RAID SATA 0, 1, 5, 10
TPM Header
Units per Shipping Box 10
Unit Calculated Volume 0.006489 cubm
Product Net Weight 1 kg
Unit Calculated Weight 1.59 kg
