Mainboard, ASUS, AMD X870E, SAM5, EATX, Memory DDR5, Memory slots 4, CROSSHAIRX870EEXTREME
Product reference:
2-4711387984963
Mainboard, ASUS, AMD X870E, SAM5, EATX, Memory DDR5, Memory slots 4, CROSSHAIRX870EEXTREME
Product reference:
2-4711387984963
You have 3 products in compare list, please remove someone and try again
- Add to favorites products
- Added to favorites products
- Removed to favorites product
Guarantee
36 month
Delivery from Lithuania in
3 - 5
business days

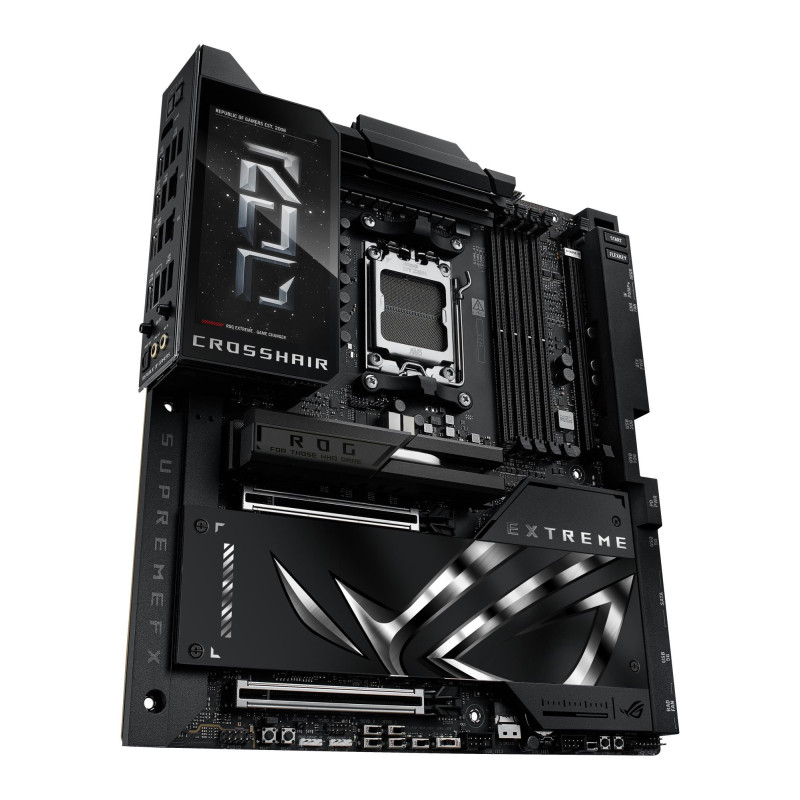

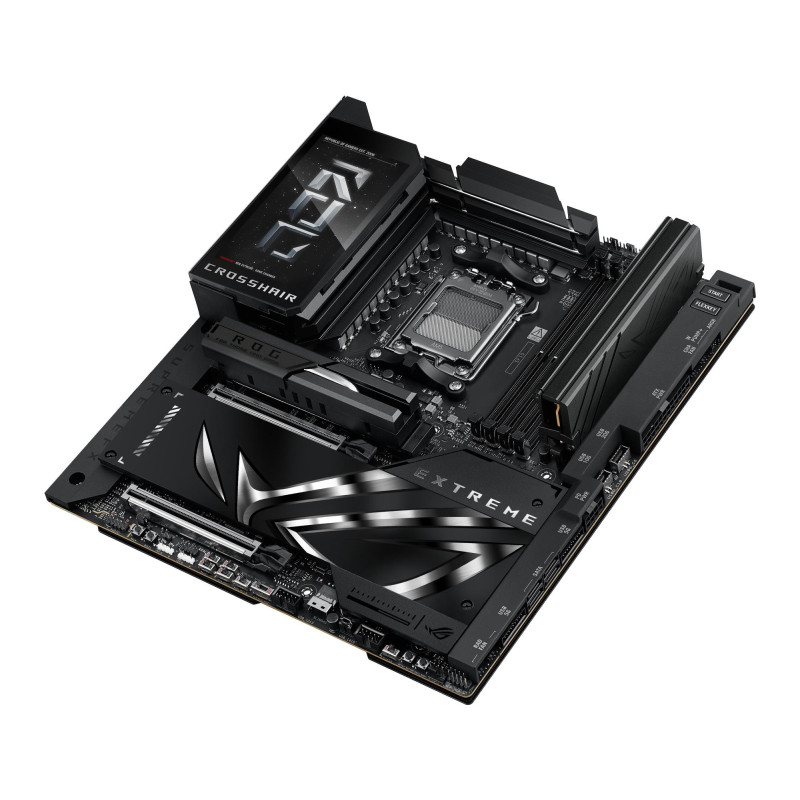

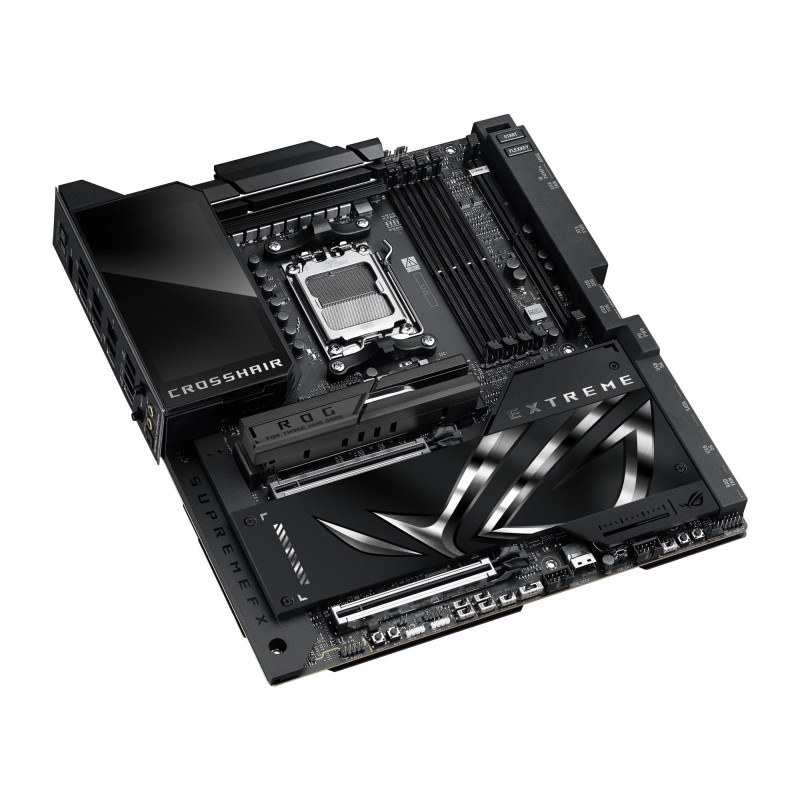

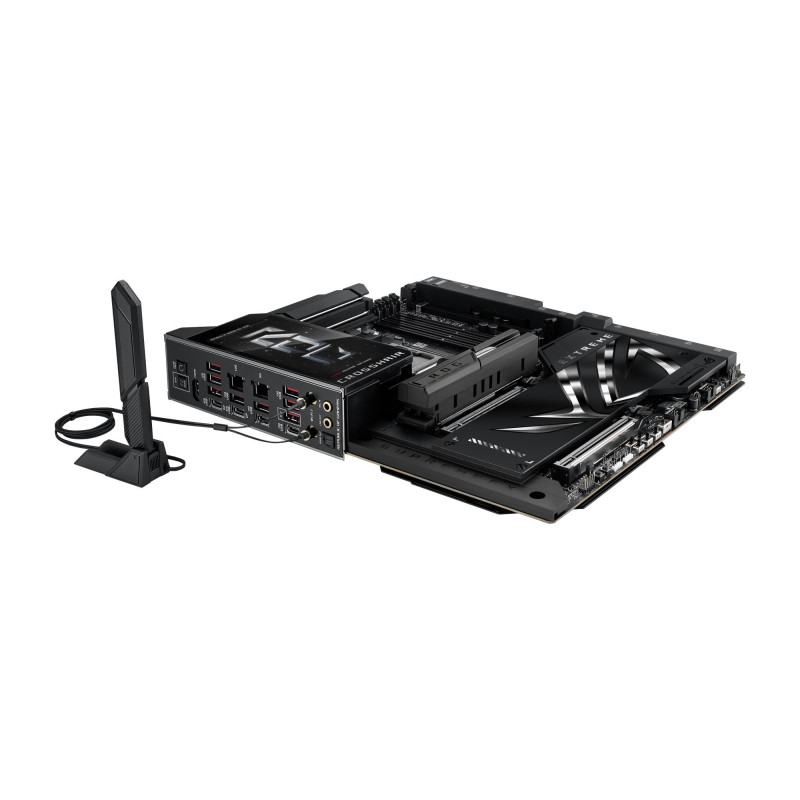

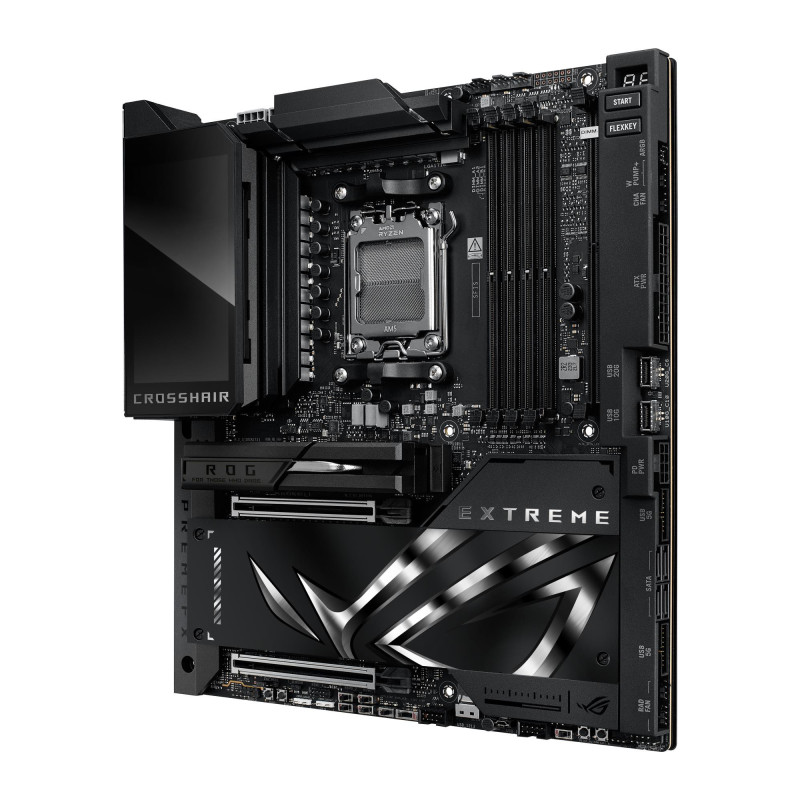

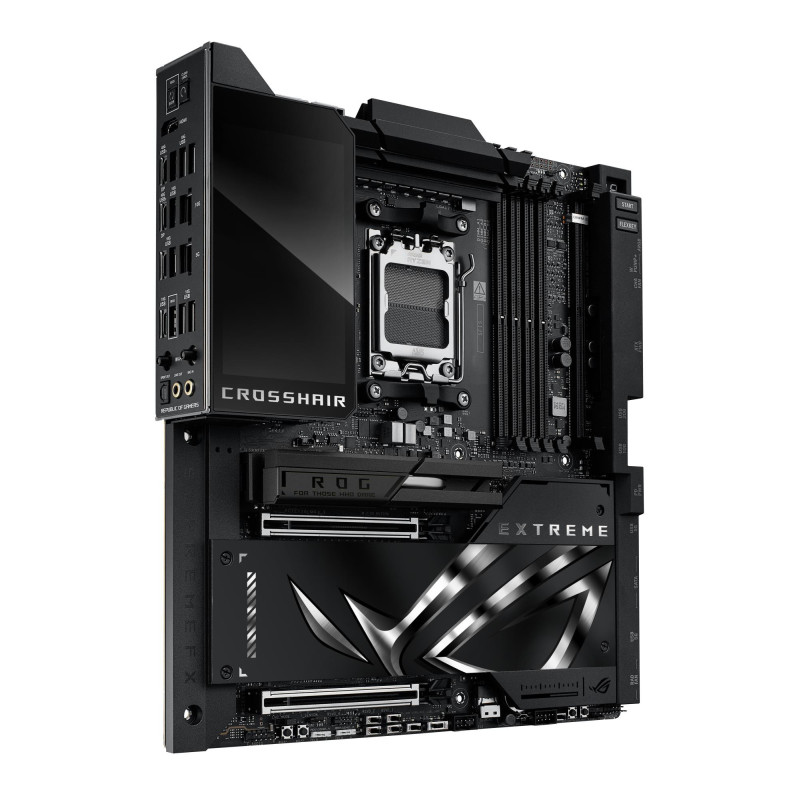

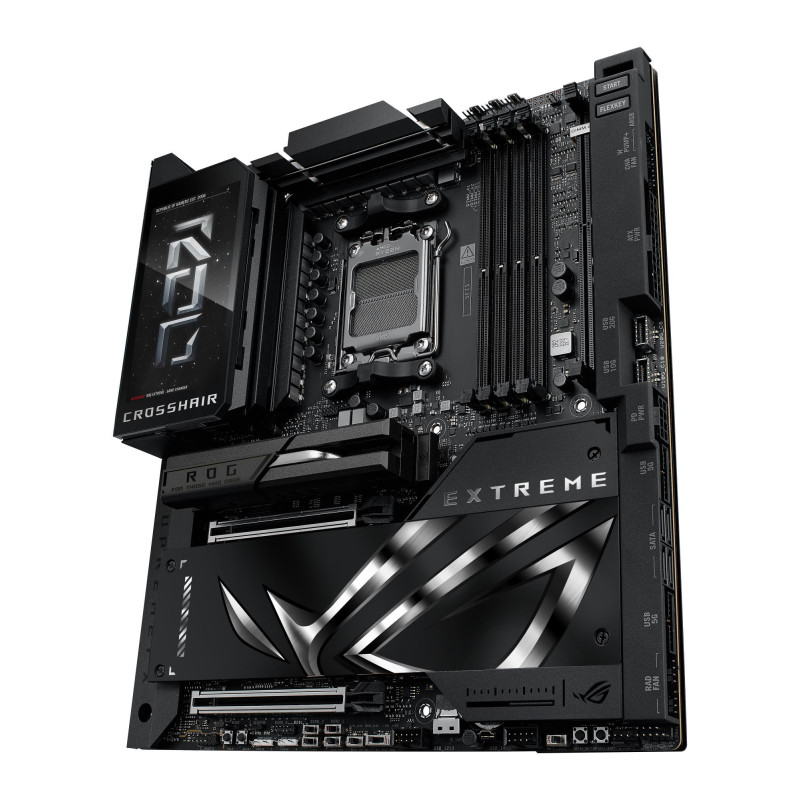

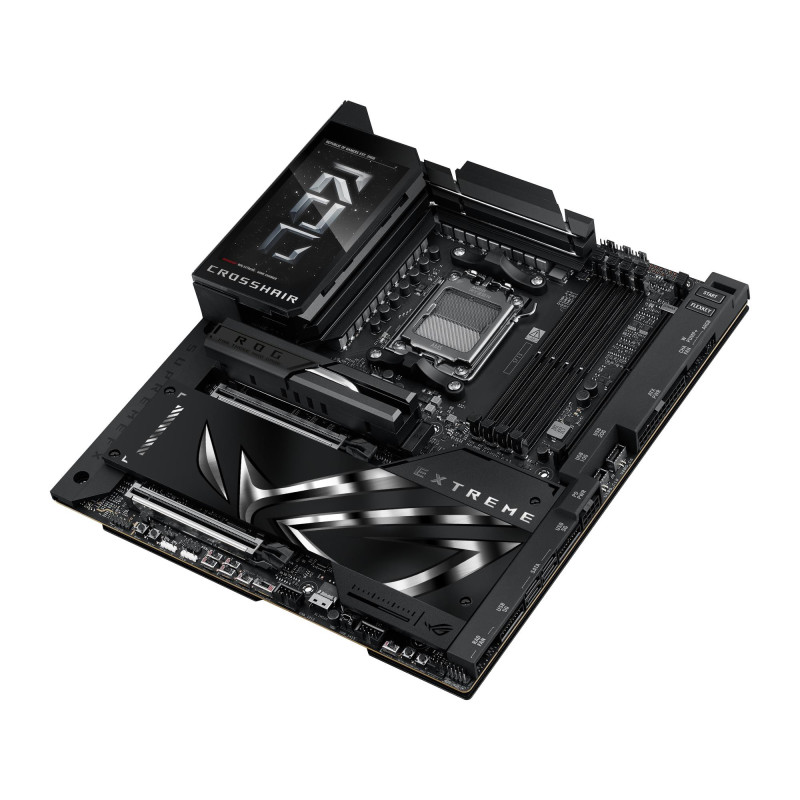

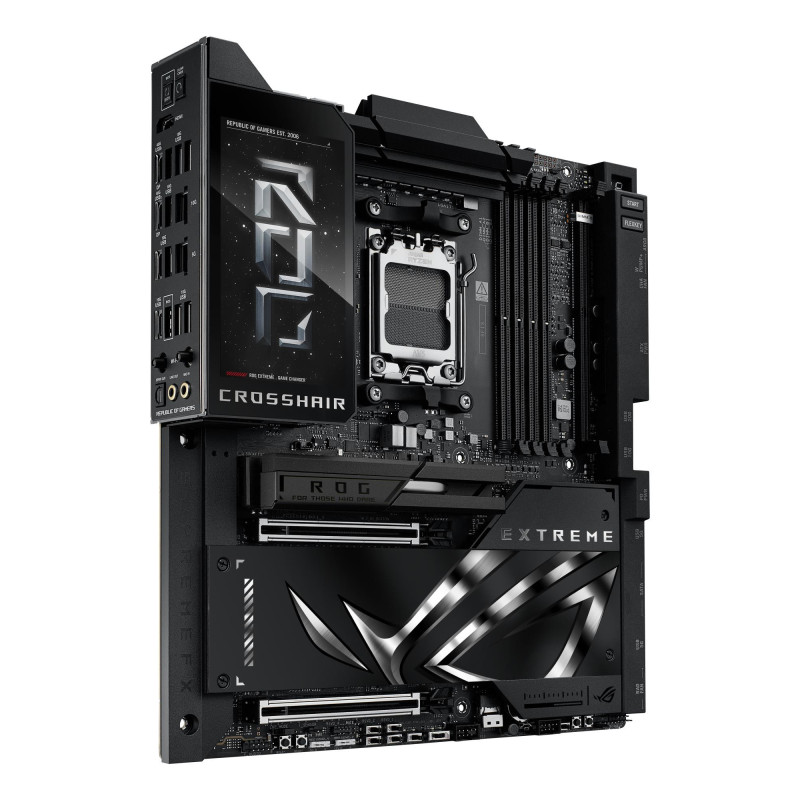

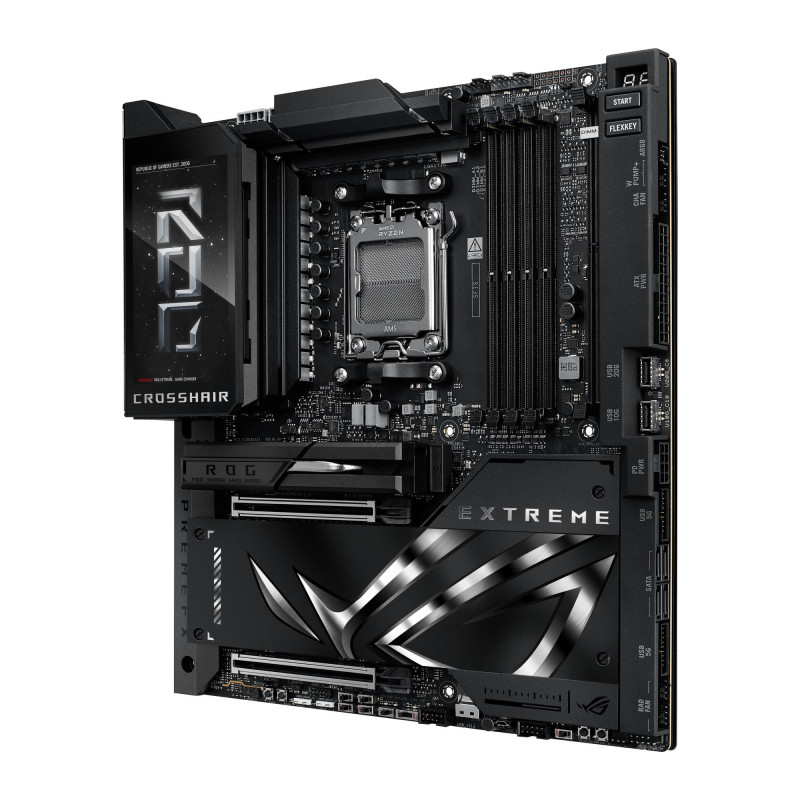

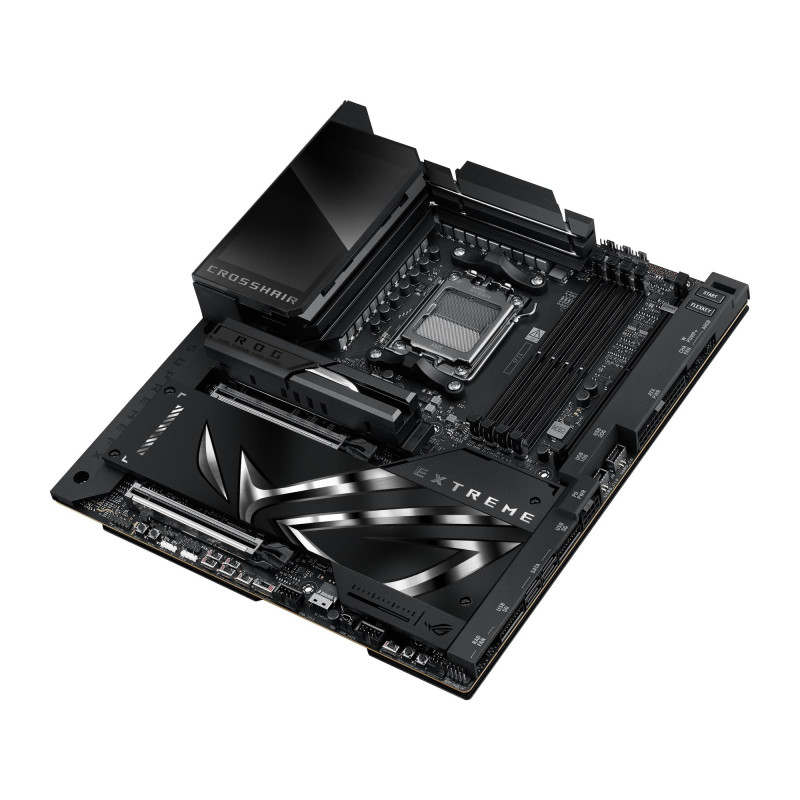

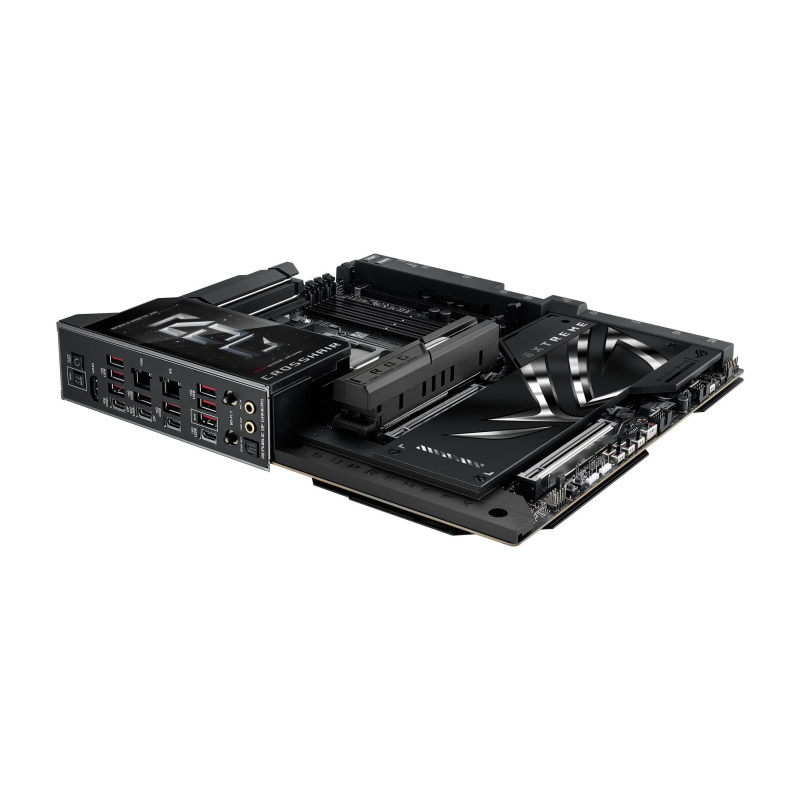

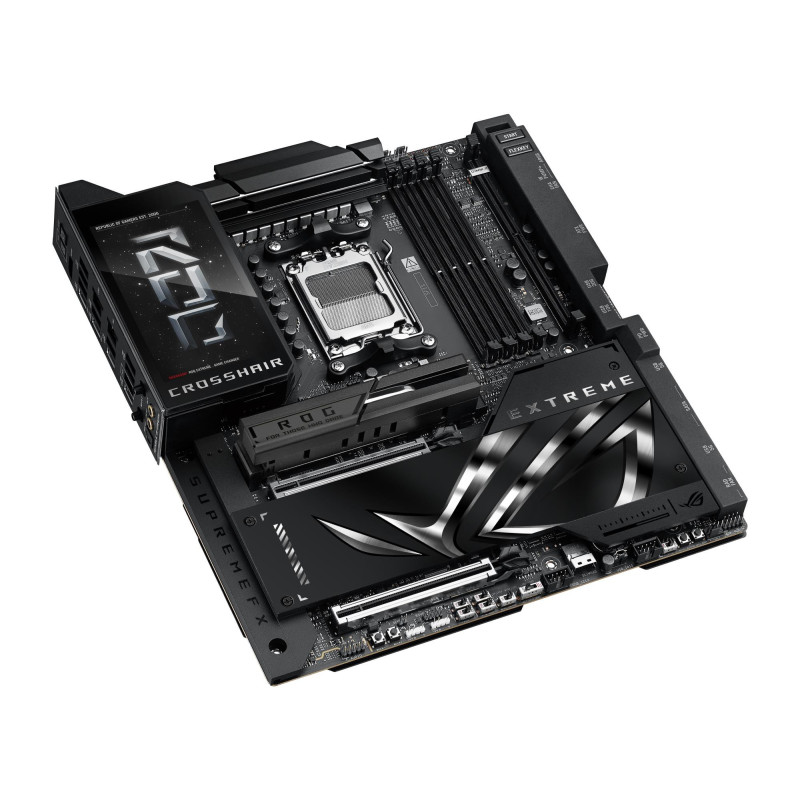

ROG Crosshair X870E Extreme
The ROG Crosshair X870E Extreme is the flagship AMD Ryzen™ 9000 series motherboard, designed for the most discerning users. It provides the ultimate foundation for AM5 CPUs, DDR5 memory, and PCIe® 5.0 components to ensure maximum performance and future-readiness. Its comprehensive connectivity includes USB4®, and the integrated 5-inch LCD offers a unique way to monitor system performance or add a touch of personalized style.
ASUS AI CACHE BOOST
Supercharge your large language model(LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 Series and 600 Series motherboards using AMD Ryzen™ 9000 Series Granite Ridge CPUs, this BIOS feature intelligently enhances cache efficiency, delivering up to 12.75% faster performance for your LLM tasks.
| Summary | ASUS ROG CROSSHAIR X870E EXTREME. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 256 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, SlimSAS, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 5 Gigabit Ethernet, 10 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be). Component for: PC, Motherboard form factor: Extended ATX, Motherboard chipset family: AMD |
| Vendor Homepage | https://rog.asus.com/motherboards/rog-crosshair/rog-crosshair-x870e-extreme/ |
| Unit Box Height | 0.125 |
| Unit Box Length | 0.385 |
| Unit Box Width | 0.325 |
| Audio chip | Realtek ALC4082 |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Motherboard chipset | AMD X870E |
| Motherboard chipset family | AMD |
| Motherboard form factor | Extended ATX |
| Product colour | Black |
| Windows operating systems supported | Windows 11 |
| Compatible processor series | AMD Ryzen 7000 Series/AMD Ryzen 8000 Series/AMD Ryzen 9000 Series |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Supported processor sockets | Socket AM5 |
| ECC сompatibility | ECC & Non-ECC |
| Maximum internal memory | 256 GB |
| Memory channels | Dual-channel |
| Memory slots type | DIMM |
| Number of memory slots | 4 |
| Supported memory types | DDR5-SDRAM |
| Unbuffered memory | Yes |
| Number of storage drives supported | 10 |
| RAID levels | 0/1/10/5 |
| RAID support | Yes |
| Supported storage drive interfaces | M.2,SATA III,SlimSAS |
| Supported storage drive types | HDD & SSD |
| On-board graphics card | No |
| Parallel processing technology support | Not supported |
| 12V power connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| Number of chassis fan connectors | 2 |
| Number of SATA III connectors | 4 |
| RGB LED pin header | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| USB 3.2 Gen 2x2 connectors | 1 |

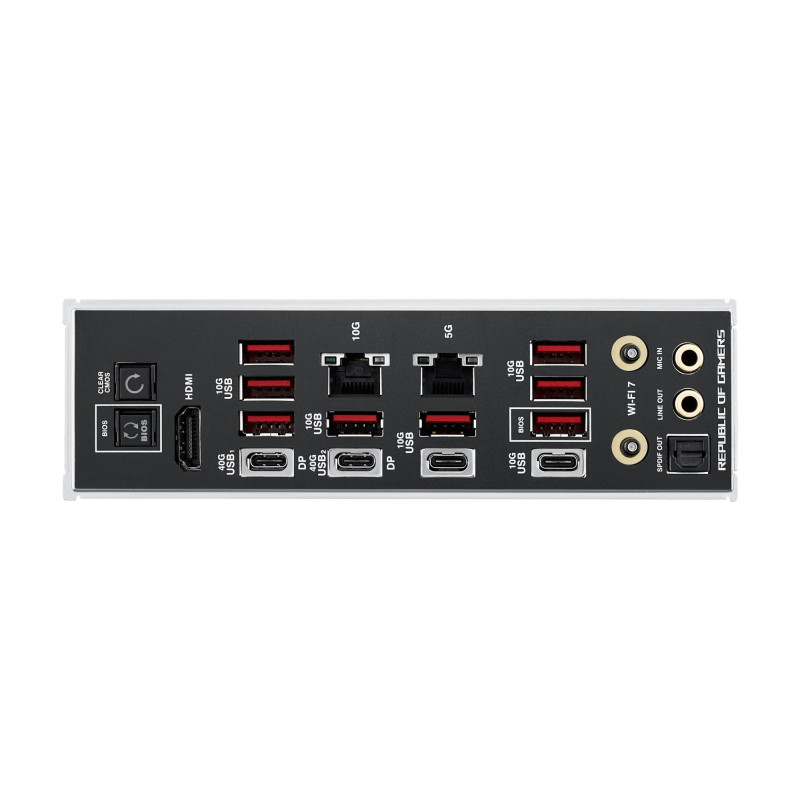

| Ethernet LAN (RJ-45) ports | 2 |
| HDMI ports quantity | 1 |
| PS/2 ports quantity | 1 |
| S/PDIF out port | Yes |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Ethernet interface type | 10 Gigabit Ethernet/5 Gigabit Ethernet |
| Ethernet LAN | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| 1st M.2 highest PCI Express generation | 5.0 |
| 1st M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 5th M.2 largest key size | 22110 |
| Number of M.2 (M) slots | 5 |
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 2 |
| BIOS memory size | 512 Mbit |
| BIOS type | UEFI AMI |
| Package depth | 320 mm |
| Package height | 125 mm |
| Package weight | 5661 g |
| Package width | 380 mm |
| Depth | 277 mm |
| Width | 305 mm |
| Antenna included | Yes |
| Cables included | SATA |
| Drivers included | Yes |
| Model | ROG CROSSHAIR X870E EXTREME |
| Units per Shipping Box | 4 |
| Unit Calculated Volume | 0.02512 cubm |
| Unit Calculated Weight | 5.72 kg |
