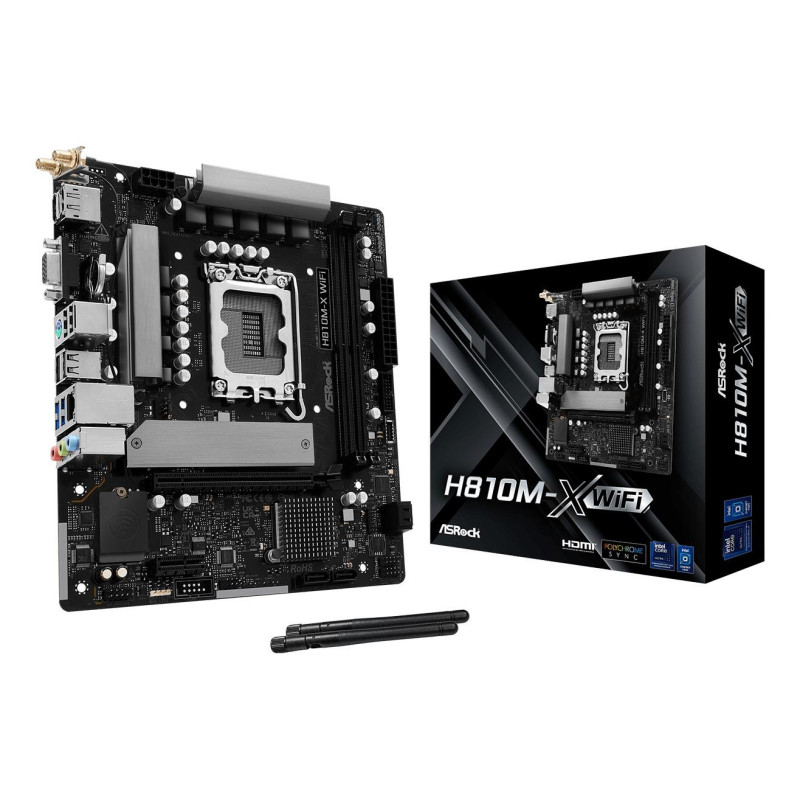

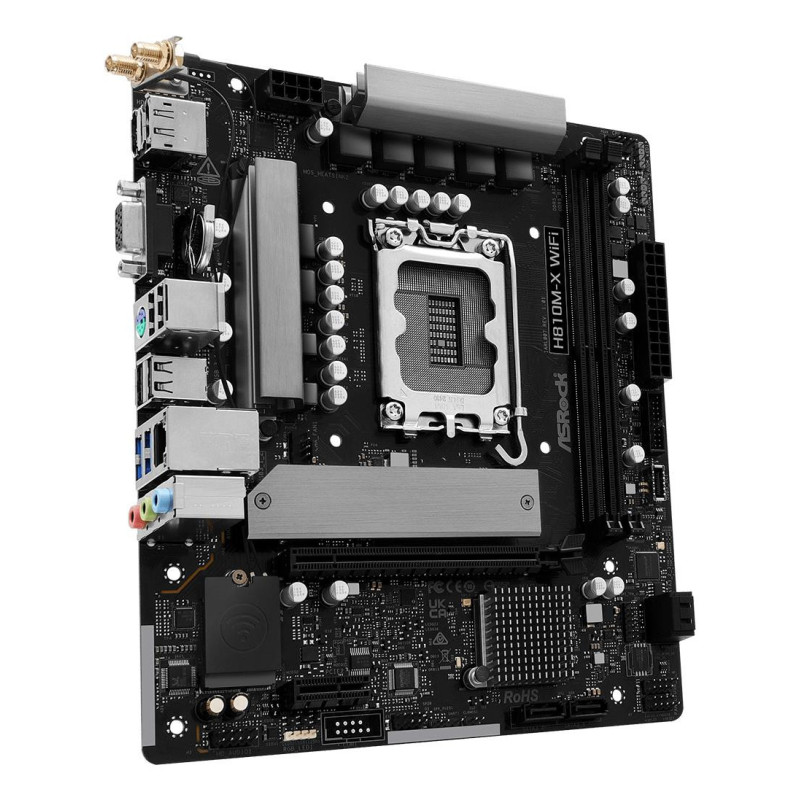

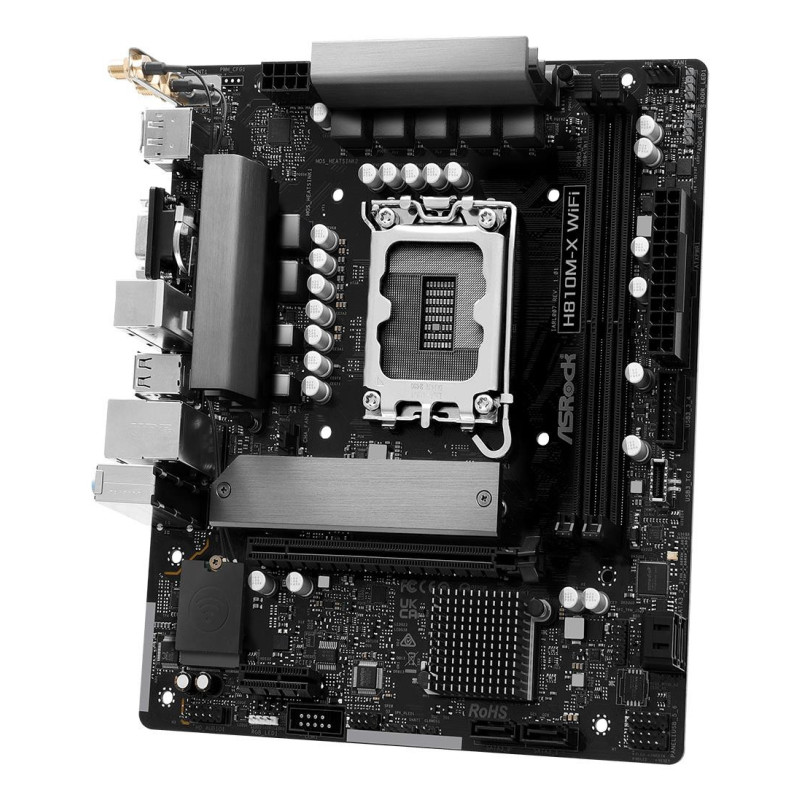

Mainboard, ASROCK, Intel H810, LGA 1851 (Socket V1), micro ATX, RAM DDR5-SDRAM, 2xSlots, Wi-Fi Yes, Bluetooth Yes, 1xNum

X Series motherboard offers a compact, high-value solution, balancing performance, versatility, and reliability for both professional and daily tasks.



The ASRock X-Series motherboard provides a high-value solution, balancing performance and versatility within a compact form factor. It's highly capable in handling a wide range of tasks, from professional productivity to everyday usage, striking an excellent balance between affordability, reliability, and efficiency.



High Speed M.2 Solution



Hyper M.2 Gen4 x4

Supports PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.



Intelligent Cooling Design



Aluminum Heatsink

The first thing that catches the eye is the optimized Aluminum Heatsink Design. Heatsinks are crucial for efficient heat dissipation, especially during heavy workloads like gaming or productivity tasks. Motherboard that built with heatsinks can effectively manage thermal performance, hence ensure system stability and durability effortlessly.



Dual Band 802.11ac WiFi

No one has time for weak WiFi signals and sluggish internet! That's why this motherboard comes with a 802.11ac WiFi (2.4G / 5G WiFi) module which supports wireless networks and Bluetooth.



Dragon 2.5 Gb/s LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.



Front USB 3.2 Gen1 Type-C

Front USB 3.2 Gen1 Type-C header delivers up to 5 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.



POLYCHROME RGB

This motherboard features onboard RGB headers and addressable RGB headers that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.



SignalRGB

SignalRGB unifies your RGB devices, offering seamless customization, game-reactive effects, macro automation, and system monitoring. The official partnership empowers ASRock motherboards with advanced lighting control, enhances compatibility with a diverse range of RGB devices, and provides greater customization flexibility.



3 Graphics Outputs

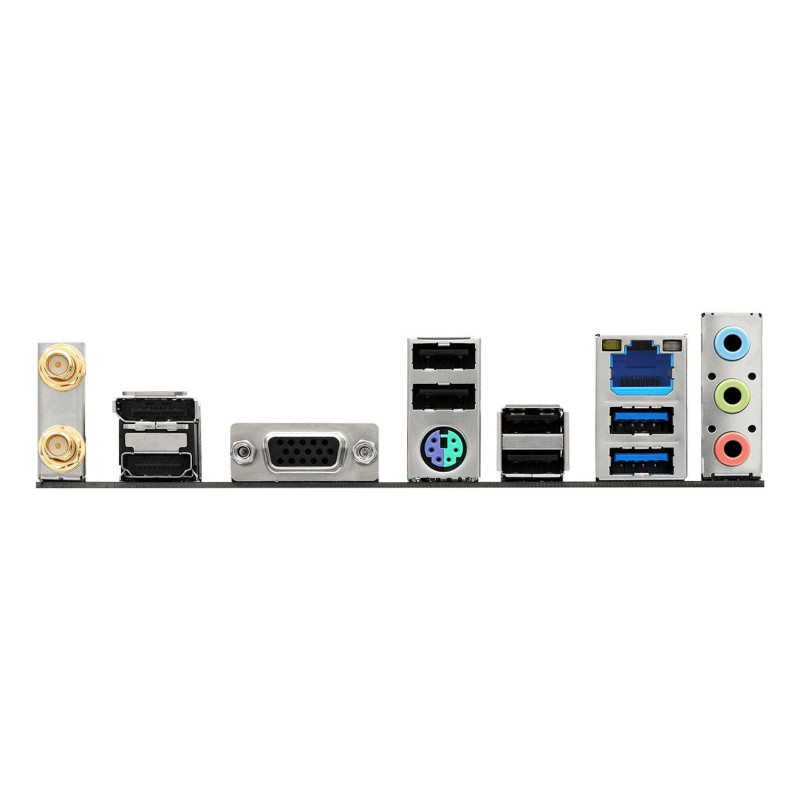

Complete with all three types of most used connectors! Packed with a D-Sub + DisplayPort + HDMI combo.

*Supported only with processors with integrated graphics. Please check CPU support list from each motherboard webpage.



Auto Driver Installer

No need to worry about lack of disk drive! Asrock preinstall LAN driver to ensure that you are able to install all drivers needed in an easier way than using SCD.

step1: Install Auto Driver Installer

step2: Update drivers needed

step3: Done!

• Supports Intel® Core™ Ultra Processors (Series 2) (LGA1851)


• 6+1+1+1+1 Power Phase


• 2 x DDR5 DIMMs


• Supports Dual Channel, up to 6400


• 1 PCIe 4.0 x16, 1 PCIe 4.0 x1


• Graphics Output Options: 1 HDMI, 1 DisplayPort, 1 D-Sub


• Realtek ALC897 7.1 CH HD Audio Codec


• 4 SATA3


• 1 Hyper M.2 (PCIe Gen4x4)


• 1 USB 3.2 Gen1 Type-C (Front)


• 4 USB 3.2 Gen1 (2 Rear, 2 Front)


• 6 USB 2.0 (4 Rear, 2 Front)


• Realtek 2.5G LAN


• Dual Band 802.11ac Wi-Fi + Bluetooth
