Motherboard - MSI PRO X870E-S EVO WiFi AM5 ATX DDR5 8 200 MHz PCIe 5.0 Wi-Fi 7 5GbE
Product reference: 14-4711377412230

MSI PRO X870E-S EVO WiFi - ATX motherboard with Socket AM5 socket for AMD Ryzen 7000, 8000 and 9000 series processors. It supports up to 8,200 MHz DDR5 memory, PCIe 5.0, three M.2 slots, Wi-Fi 7, Bluetooth 5.4 and 5 Gb/s Ethernet.

Motherboard - MSI PRO X870E-S EVO WiFi AM5 ATX DDR5 8 200 MHz PCIe 5.0 Wi-Fi 7 5GbE

Product reference: 14-4711377412230

MSI PRO X870E-S EVO WiFi - ATX motherboard with Socket AM5 socket for AMD Ryzen 7000, 8000 and 9000 series processors. It supports up to 8,200 MHz DDR5 memory, PCIe 5.0, three M.2 slots, Wi-Fi 7, Bluetooth 5.4 and 5 Gb/s Ethernet.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
286,52 €
301,60 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*

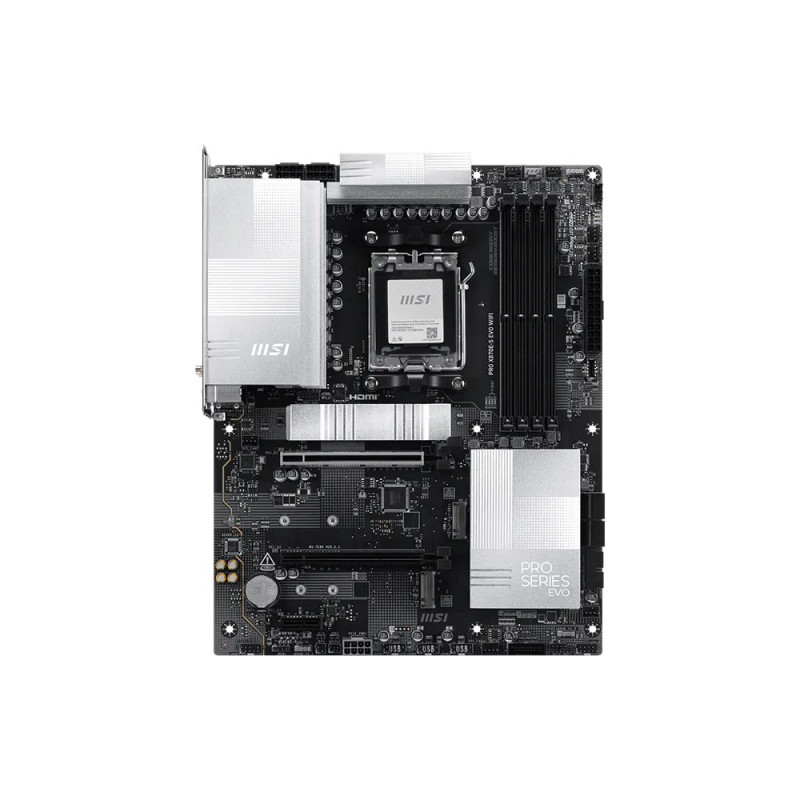

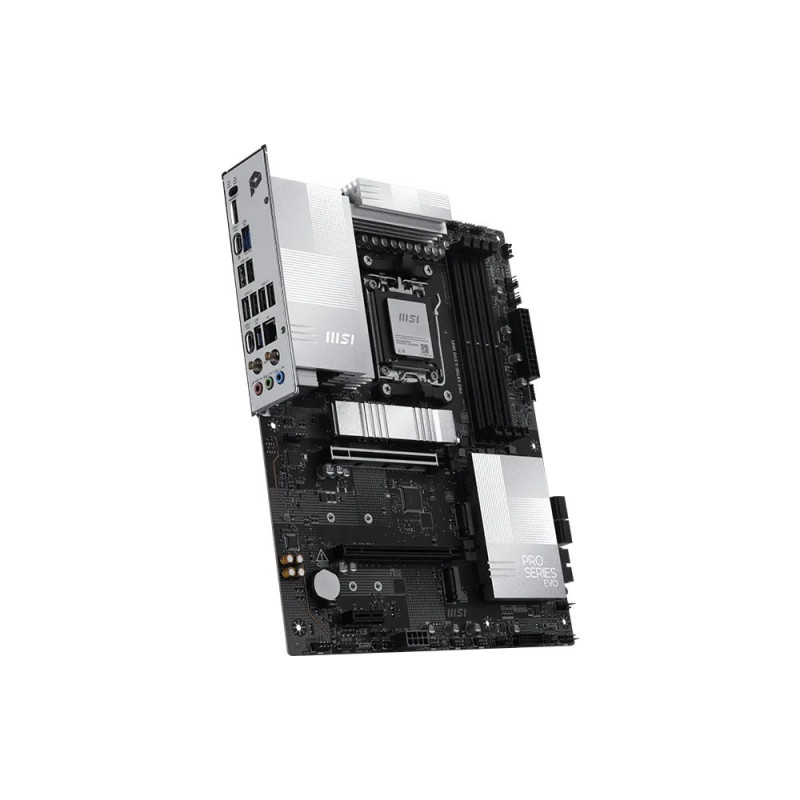

MSI PRO X870E-S EVO WiFi


MSI PRO X870E-S EVO WiFi - ATX motherboard for AMD Ryzen 7000, 8000 and 9000 series processors with Socket AM5 socket. It supports up to 8200 MHz DDR5 memory, PCIe 5.0, three M.2 slots, Wi-Fi 7, Bluetooth 5.4 and 5 Gigabit Ethernet.


  • ATX motherboard with AMD X870E chipset and Socket AM5 for Ryzen 7000, 8000 and 9000 series processors
  • Supports up to 256GB of DDR5 memory across four dual-channel DIMM slots with speeds up to 8200MHz
  • PCIe 5.0 graphics card connector and three M.2 slots for fast storage expansion
  • Wi-Fi 7, Bluetooth 5.4, 5Gb Ethernet, USB4, HDMI 2.1 and 7.1 channel audio connections

Product information

Product type ATX motherboard
Brand MSI
Model PRO X870E-S EVO WiFi
Chipset AMD X870E
Processor socket Socket AM5
Compatible processors AMD Ryzen 7000, 8000 and 9000 series
Supported operating system Windows 11 x64

Memory

Memory type DDR5-SDRAM
Memory slots 4 DIMM slots
Memory architecture Two-channel
Maximum memory capacity 256GB
ECC support Without ECC

Development and data storage

PCI Express slots 1 × PCIe 5.0 x16, 1 × PCIe x16, 1 × PCIe x1
M.2 slots 3 slots; one supports PCIe 5.0 and two support PCIe 4.0
M.2 formats 2280; second slot also supports 22110
SATA connectors 4 × SATA III
Supported storage devices M.2 and SATA III HDD or SSD
RAID support RAID 0, 1, 5, and 10

Internal connections

Power connections 24-pin ATX and 8-pin EPS
Internal USB ports 1 × USB 3.2 Gen 2, 4 × USB 3.2 Gen 1 and 6 × USB 2.0
Fan connection Processor fan connector
TPM connector Yes
RGB connector Yes

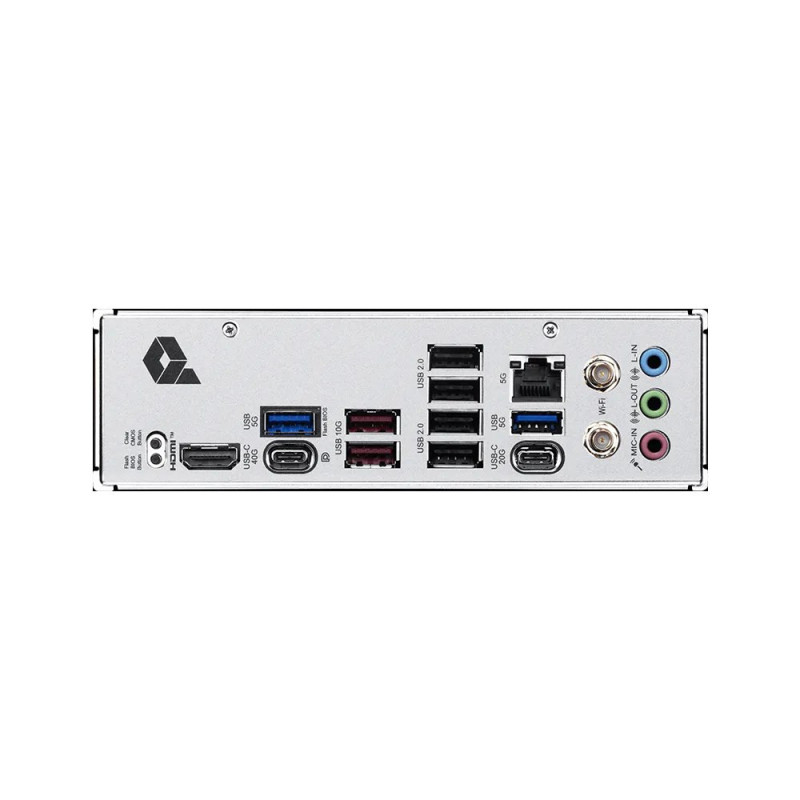

Rear connections and sound

USB ports 1 × USB4 Gen 3x2, 1 × USB4 Gen 2x2, 2 × USB 3.2 Gen 2 Type-A, 2 × USB 3.2 Gen 1 Type-A and 4 × USB 2.0
Video output 1 × HDMI 2.1
Audio codec Realtek ALC897
Audio output 7.1 channel sound

Dimensions

Dimensions 304.8 × 243.8 mm (width × depth)

Safety information

Safety warning Install and use the motherboard only in a compatible computer system. Disconnect the power supply before installing or performing any operations and follow the manufacturer's installation instructions. Ensure adequate cooling and correct electrical connections to avoid damage.

Height60mm
Length300mm
Weight1800g
Width350mm
