Black ATX motherboard with AMD B850 chipset and Socket AM5, compatible with Ryzen 7000, 8000 and 9000 series processors. Supports up to 256GB DDR5 memory, three M.2 drives, Wi-Fi 7, Bluetooth 5.4 and 2.5 Gigabit Ethernet.
Black ATX motherboard with AMD B850 chipset and Socket AM5, compatible with Ryzen 7000, 8000 and 9000 series processors. Supports up to 256GB DDR5 memory, three M.2 drives, Wi-Fi 7, Bluetooth 5.4 and 2.5 Gigabit Ethernet.




Black ATX motherboard with AMD B850 chipset and Socket AM5, compatible with Ryzen 7000, 8000 and 9000 series processors. Supports up to 256GB DDR5 memory, three M.2 drives, Wi-Fi 7, Bluetooth 5.4 and 2.5 Gigabit Ethernet.
Guarantee
24 month
Delivery from Europe in
8 - 9
business days

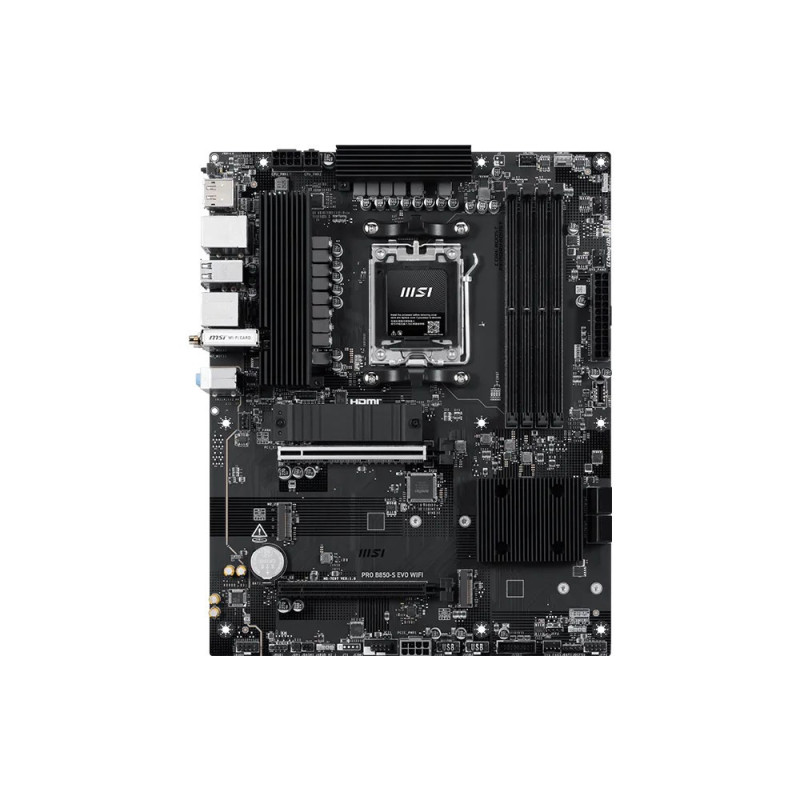

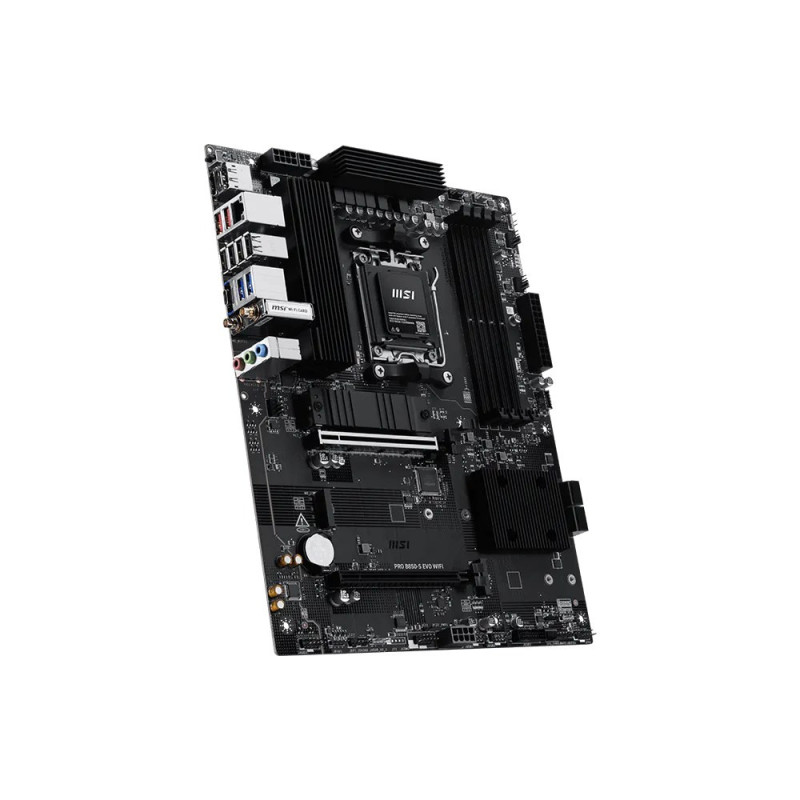

Black ATX motherboard with AMD B850 chipset and Socket AM5 for Ryzen 7000, 8000 and 9000 series processors. Supports up to 256GB DDR5 memory, three M.2 drives, Wi-Fi 7, Bluetooth 5.4 and 2.5 Gigabit Ethernet.
Product information | |
|---|---|
| Product type | ATX motherboard |
| Manufacturer | MSI |
| Model | PRO B850-S EVO WIFI |
| Color | Black |
| Form factor | ATX |
| Dimensions | 243.8 × 304.8 mm (width × depth) |
Processor and graphics | |
| Chipset | AMD B850 |
| Processor manufacturer | AMD |
| Processor socket | Socket AM5 |
| Integrated graphics | None |
| Multi-GPU support | Not supported |
Memory | |
| Memory type | DDR5-SDRAM |
| Memory slots | 4 DIMM slots |
| Memory architecture | Two-channel |
| Memory type | Unregistered, not ECC |
Development and data storage | |
| Video card expansion slot | 1 × PCI Express x16 Gen 5.0 |
| Additional expansion slots | 1 × PCI Express x1 Gen 3.0; 1 × PCI Express x4 Gen 4.0 |
| Storage interfaces | M.2 and SATA |
| SATA connectors | 4 × SATA III |
| Supported storage devices | HDDs and SSDs |
| RAID support | Yes; RAID 0, 1 and 10 |
| M.2 drive sizes | Up to 22110 and 2280, depending on the socket |
Audio and connectivity | |
| Audio codec | Realtek ALC897 |
| Audio output | 7.1 channel sound |
| Wireless network | Wi-Fi 7 (802.11be) |
| Bluetooth | Version 5.4 |
| Wired network | 2.5 Gigabit Ethernet |

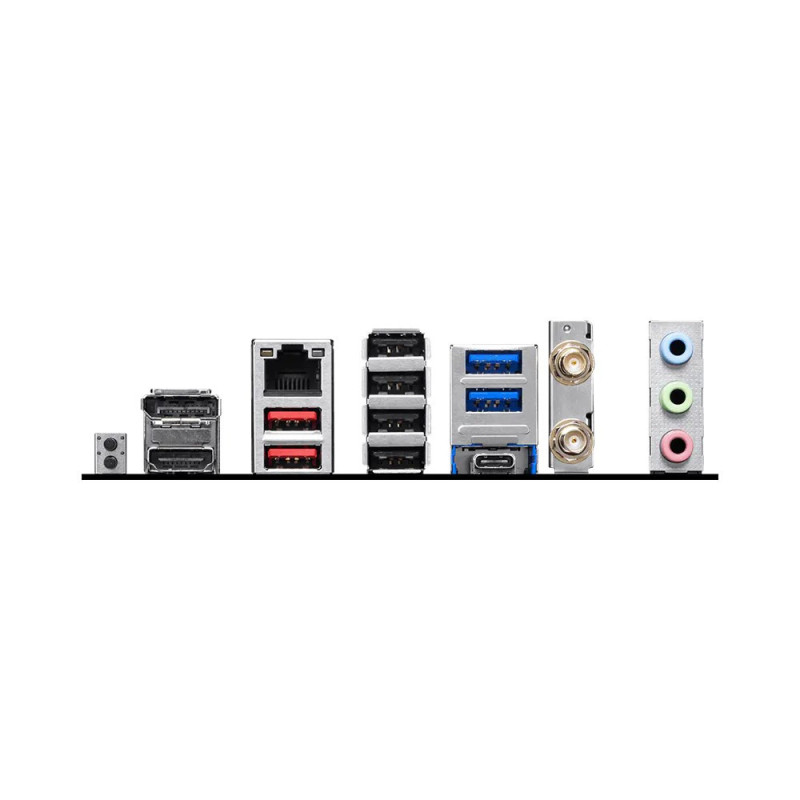

Rear connections | |
| USB ports | 4 × USB 2.0, 2 × USB 3.2 Gen 1 Type-A, 1 × USB 3.2 Gen 2 Type-C |
| Video outputs | 1 × HDMI 2.1; 1 x DisplayPort 1.4 |
| Network port | 1 × RJ-45 Ethernet |
Internal connections and software | |
| Internal USB ports | 4 × USB 2.0; 2 × USB 3.2 Gen 1; 1 × USB 3.2 Gen 2 |
| Fan connections | CPU fan and power fan connectors |
| Other connections | Front panel audio, front panel, TPM, intrusion detection, COM, and RGB LED connectors |
| BIOS | UEFI AMI |
Included accessories | |
| Included products | SATA cable, screws and Wi-Fi antenna |
Safety information | |
| Safety warning | For installation in a compatible ATX computer case only. Disconnect power supply before installation or handling and follow motherboard and component manufacturers' installation instructions. |
| Height | 100mm |
| Length | 450mm |
| Weight | 1800g |
| Width | 350mm |
