Motherboard - MSI PRO A520M-S AMD A520 AM4 Micro ATX DDR4 64 GB PCIe 3.0 M.2 HDMI
Product reference: 14-4711377465847

MSI PRO A520M-S - micro ATX motherboard with AMD A520 chipset and Socket AM4 socket, compatible with Ryzen 3000, 4000 and 5000 series processors. It supports up to 64 GB DDR4 memory, PCIe 3.0, has an M.2 slot, four SATA connectors, gigabit Ethernet and HDMI output.

Motherboard - MSI PRO A520M-S AMD A520 AM4 Micro ATX DDR4 64 GB PCIe 3.0 M.2 HDMI

Product reference: 14-4711377465847

MSI PRO A520M-S - micro ATX motherboard with AMD A520 chipset and Socket AM4 socket, compatible with Ryzen 3000, 4000 and 5000 series processors. It supports up to 64 GB DDR4 memory, PCIe 3.0, has an M.2 slot, four SATA connectors, gigabit Ethernet and HDMI output.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
100,78 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
15 - 16
business days

Your message has been successfully sent!
Fill in the required fields*

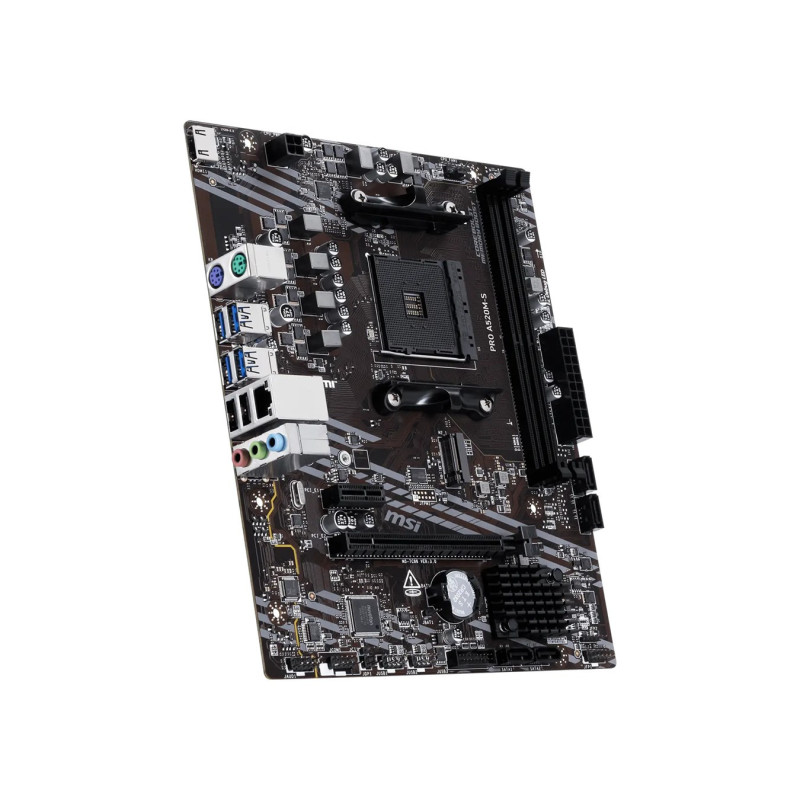

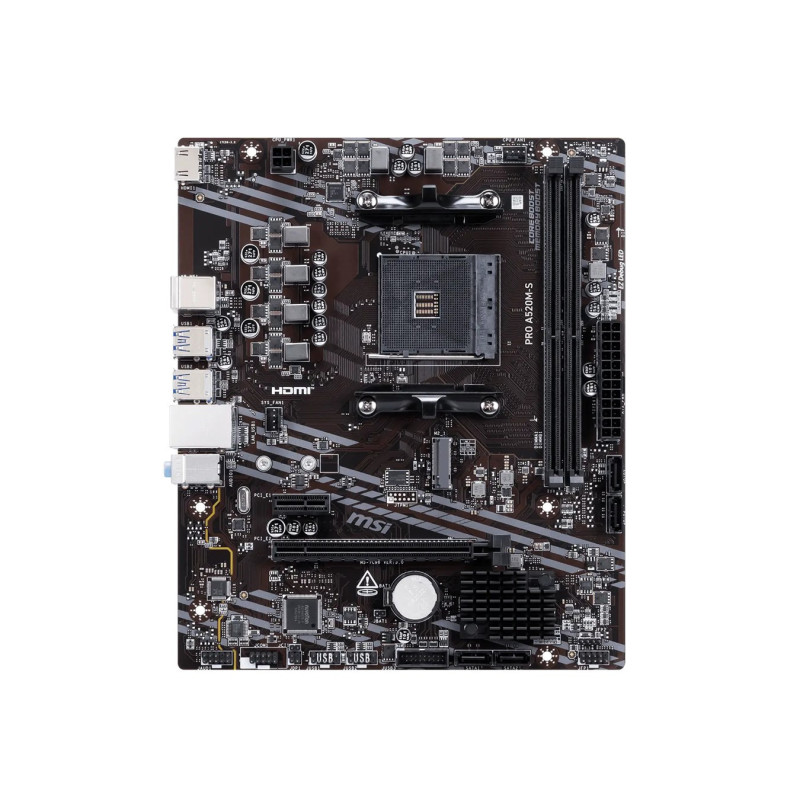

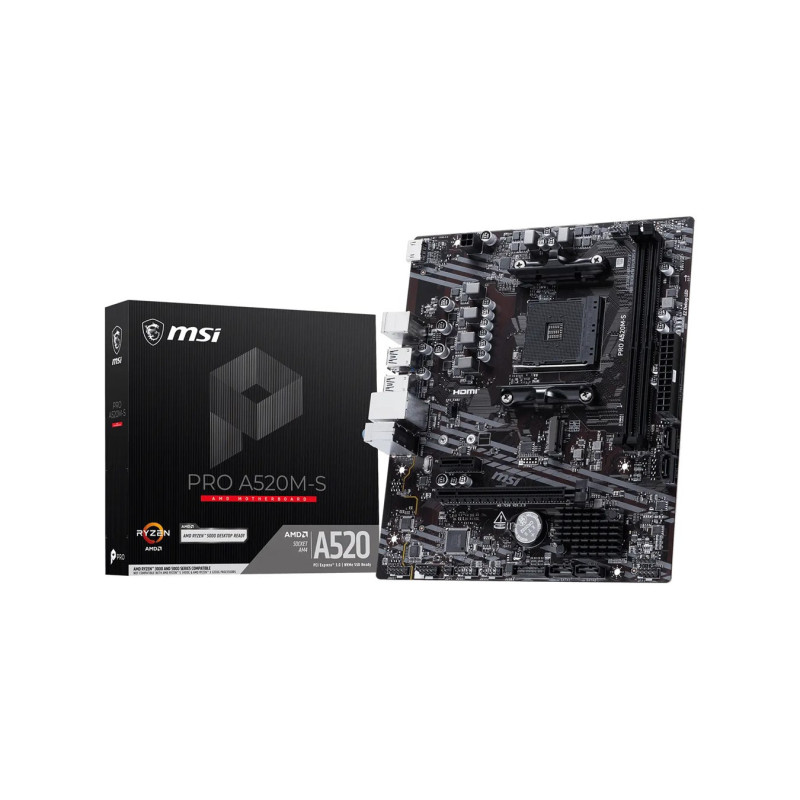

MSI PRO A520M-S


MSI PRO A520M-S - micro ATX motherboard with AMD A520 chipset and Socket AM4 socket, compatible with Ryzen 3000, 4000 and 5000 series processors. It supports up to 64 GB DDR4 memory, PCIe 3.0, one M.2 slot, four SATA connectors, gigabit Ethernet connection and HDMI output.


  • Micro-ATX motherboard with AMD A520 chipset and Socket AM4
  • Compatible with AMD Ryzen 3000, 4000 and 5000 series processors
  • Supports up to 64GB of dual-channel DDR4 memory via two DIMM slots
  • PCIe 3.0 connectors, M.2 slot, four SATA III connectors, and Gigabit Ethernet

Product information

Product type Micro-ATX motherboard
Brand MSI
Model PRO A520M-S
Chipset AMD A520
Processor socket Socket AM4
Compatible processors AMD Ryzen 3000, 4000 and 5000 series

Memory

Memory type DDR4-SDRAM
Memory slots 2 DIMM slots
Memory configuration Dual-channel, unbuffered, non-ECC
Supported memory frequencies 1,866-4,600MHz

Development and data storage

PCI Express slots 1 × PCIe 3.0 x16 and 1 × PCIe 3.0 x1
M.2 slots 1
SATA connectors 4 × SATA III
Supported storage devices PCIe and SATA HDD or SSD
RAID support RAID 0, RAID 1, and RAID 10

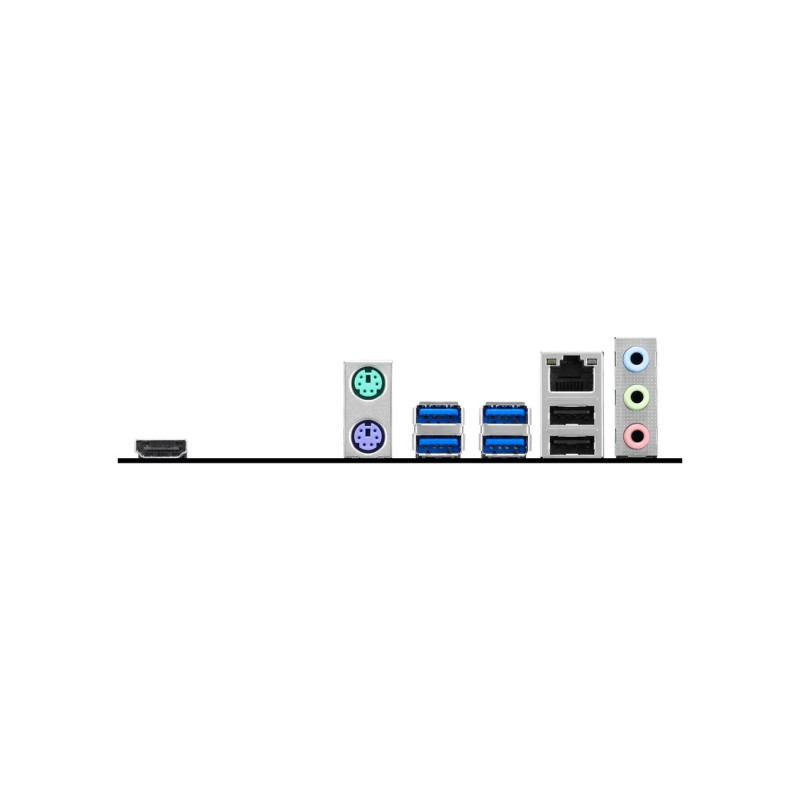

Connectivity and rear input and output connectors

Network controller Realtek 8111H Gigabit Ethernet
Wi-Fi None
USB ports 4 × USB 3.2 Gen 1 Type-A and 2 × USB 2.0
Video output 1 × HDMI, supporting resolutions up to 3840 × 2160 pixels
Other end connections 1 × RJ-45 Ethernet, 1 × PS/2 and microphone input

Sound and internal connections

Audio codec Realtek ALC897
Audio output 7.1 channel sound
Internal USB ports 2 × USB 3.2 Gen 1 and 4 × USB 2.0
Fan connections 1 × for CPU fan and 1 × for case fan
Power connector 24-pin ATX

Dimensions and safety

Dimensions 236 × 200 mm
Safety warning For installation in a compatible computer system only. Disconnect power before installing or removing the motherboard. Handle electronic components by the edges to reduce the risk of static electricity damage.

Height60mm
Length310mm
Weight1300g
Width260mm
