Motherboard - MSI B550 Gaming WiFi 6E, AM4, B550, 128 GB DDR4, 2 M.2, Wi-Fi 6E
Product reference: 14-4711377459082

ATX motherboard with AMD B550 chipset and Socket AM4, compatible with Ryzen 3000, 4000 G-Series and 5000 Series processors. Supports up to 128 GB DDR4 memory, has two M.2 slots, six SATA connectors, Wi-Fi 6E, Bluetooth 5.3 and PCIe 4.0.

Motherboard - MSI B550 Gaming WiFi 6E, AM4, B550, 128 GB DDR4, 2 M.2, Wi-Fi 6E

Product reference: 14-4711377459082

ATX motherboard with AMD B550 chipset and Socket AM4, compatible with Ryzen 3000, 4000 G-Series and 5000 Series processors. Supports up to 128 GB DDR4 memory, has two M.2 slots, six SATA connectors, Wi-Fi 6E, Bluetooth 5.3 and PCIe 4.0.

You have 3 products in compare list, please remove someone and try again
  • Add to favorites products
  • Added to favorites products
  • Removed to favorites product
Add to compare
181,83 €
Product in warehouse

Guarantee
24 month

Delivery from Europe in
8 - 9
business days

Your message has been successfully sent!
Fill in the required fields*

MSI B550 Gaming WiFi 6E motherboard


ATX motherboard with AMD B550 chipset and Socket AM4 for Ryzen 3000, 4000 G-Series and 5000 Series processors. Supports up to 128 GB DDR4 memory, has two M.2 slots, six SATA connectors, Wi-Fi 6E, Bluetooth 5.3 and PCIe 4.0.


  • AMD B550 ATX motherboard for Ryzen 3000, Ryzen 4000 G-Series and Ryzen 5000 processors with AM4 socket
  • Supports up to 128GB of DDR4 memory in dual-channel mode with speeds up to 4800MHz
  • Integrated Wi-Fi 6E, Bluetooth 5.3, and Gigabit Ethernet ensure fast wireless and wired connectivity
  • Two M.2 slots, six SATA connectors, PCIe 4.0 support, USB 3.2 Gen 2, HDMI and DisplayPort

Product information

Product type ATX motherboard
Brand MSI
Model MSI B550 Gaming WiFi 6E
Chipset AMD B550
Processor socket Socket AM4
Compatible processors AMD Ryzen 3000 Series, Ryzen 4000 G-Series and Ryzen 5000 Series

Memory

Memory type DDR4-SDRAM DIMMs
Maximum memory 128GB
Memory configuration Dual-channel, unbuffered, non-ECC
Supported memory speed Up to 4800MHz

Development and storage

PCI Express x16 slots 2, including 1 PCIe 4.0 slot
PCI Express x1 slots 1 PCIe 3.0 slot
M.2 slots 2; one supports PCIe 4.0, the other supports PCIe 3.0
M.2 formats Up to 22110 and 2280
SATA connectors 6 SATA III
Supported storage devices HDDs and SSDs

Connectivity and I/O ports

Wireless network Wi-Fi 6E (802.11ax)
Bluetooth Version 5.3
LAN controller Realtek 8111H Gigabit Ethernet

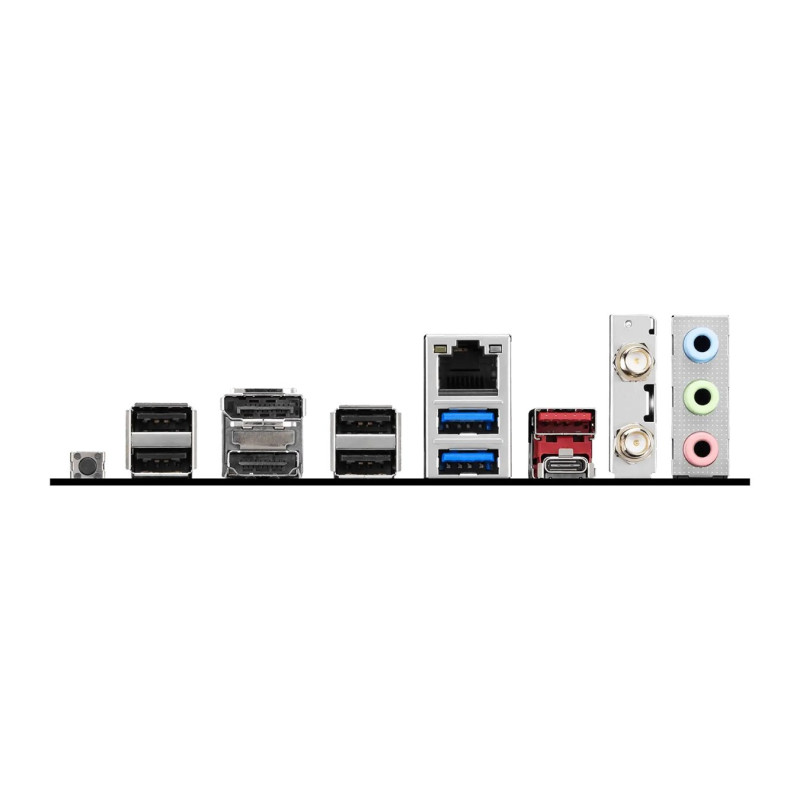

Rear USB ports 1 × USB 3.2 Gen 2 Type-A, 1 × USB 3.2 Gen 2 Type-C and 4 × USB 2.0
Video outputs 1 × HDMI 1.4 and 1 × DisplayPort 1.2
Sound system Realtek ALC897, 7.1 channel audio

Internal connections

Internal USB ports 3 × USB 3.2 Gen 1 and 4 × USB 2.0
Power connector 24-pin ATX
Additional connections CPU fan, front panel audio, front panel, TPM, and RGB LED connectors

Dimensions

Motherboard dimensions 243.8 × 304.8 mm (width × depth)

Safety information

Safety warning Install and use the motherboard only according to the manufacturer's instructions. Before installing or removing components, disconnect the power supply and ensure that it is compatible with the processor, memory, power supply, and computer case.

Height100mm
Length450mm
Weight1500g
Width350mm
